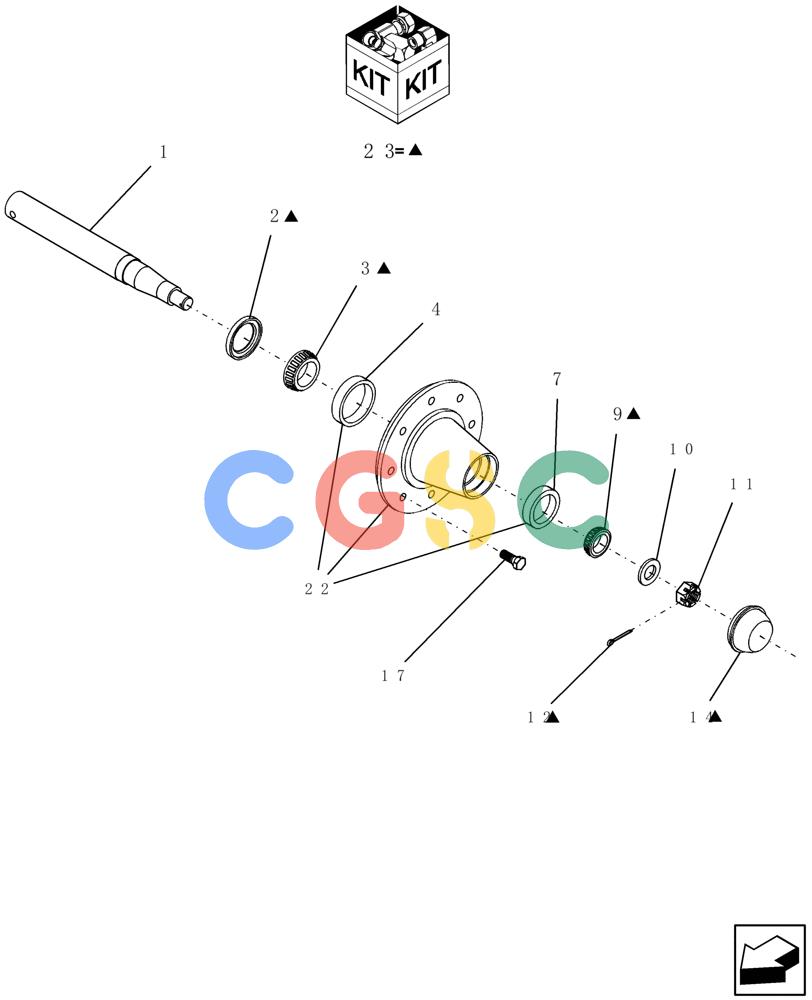

| 0. |
87436726
|
[1] |
HUB
|
SAS
and spindle assembly H812-17.41" long
|
| 1. |
87436721
|
[1] |
SPINDLE
|
SAS
S812-2.5 x 17.44 sp
|
| 2. |
4622
|
[1] |
OIL SEAL
|
FLX
SE17
|
| 3. |
174127
|
[1] |
TAPERED BEARING,2" ID x 1.192"
|
NH
tm#3780
|
| 4. |
ST863
|
[1] |
BEARING CUP,93.22mm OD x 23.81mm W
|
IH
#3720
|
| 7. |
86977427
|
[1] |
BEARING CUP,76.22mm OD x 19.05mm W
|
NH
#2720
|
| 9. |
86576988
|
[1] |
BEARING ASSY,31.75mm ID x 62mm OD x 20.64mm W
|
RAC
tm#2790
|
| 10. |
86900677
|
[1] |
WASHER,1.03" ID x 2" OD x 0.18" Thk
|
FOR
|
| 11. |
86020752
|
[1] |
SLOTTED NUT
|
WIN
1"-14, G5
|
| 12. |
80754
|
[1] |
COTTER PIN,3/16" OD x 1-1/2" OAL
|
NH
|
| 14. |
87505192
|
[1] |
HUB CAP
|
SAS
dc17
|
| 17. |
86628557
|
[8] |
WHEEL BOLT,Hex Csk, 9/16" - 18 x 1 1/8", HTS
|
NH
|
| 22. |
87505494
|
[1] |
HUB
|
SAS
H812 assembly with cups, & holes for sprocket
|
| 23. |
6812
|
[1] |
WHEEL BEARING KIT
|
SAS
hub bearing completion - h812
|
