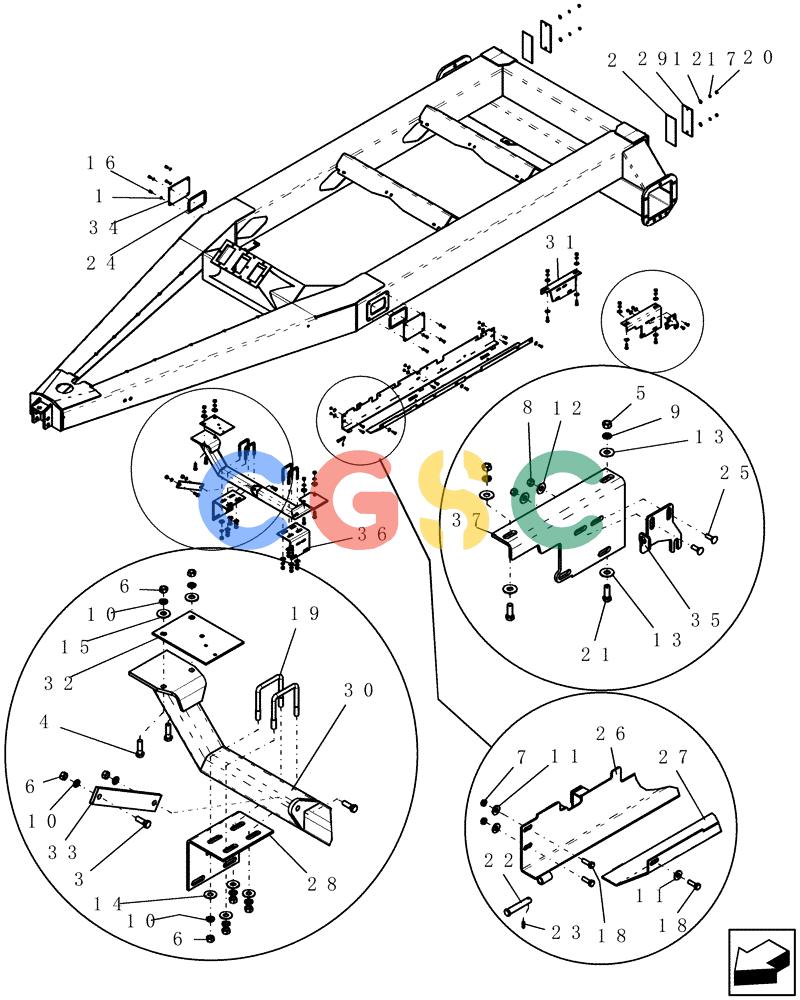

| 1. |
80681
|
[8] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 2. |
425487A1
|
[2] |
KIT
|
FLX
sponge 1 1/4" x 3/4" cell, adhesive
|
| 2. |
GL-249
|
[2] |
FOAM
|
FLX
end cover frame
|
| 3. |
87689
|
[2] |
BOLT,1/2"-13 x 1.813" OAL, Gr 5
|
NH
|
| 4. |
9707516
|
[4] |
BOLT,1/2"-13 x 1-3/4", Cl 5
|
WIN
|
| 5. |
280717
|
[4] |
NUT,7/16"-14, G5
|
NH
|
| 6. |
9635082
|
[14] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 7. |
281010
|
[6] |
LOCK NUT,7/8"-14, GC
|
BAS
|
| 8. |
88902
|
[2] |
NUT,3/8"-16
|
NH
|
| 9. |
81547
|
[4] |
LOCK WASHER,7/16"
|
NH
|
| 10. |
80679
|
[14] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 11. |
80664
|
[9] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 12. |
80702
|
[6] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 13. |
81541
|
[8] |
WASHER,0.5" ID x 1.25" OD x 0.08" Thk
|
NH
|
| 14. |
80700
|
[8] |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
|
NH
|
| 15. |
18606
|
[4] |
WASHER,0.62" ID x 1.47" OD x 0.11" Thk
|
FAR
|
| 16. |
87872
|
[8] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
NH
|
| 17. |
80680
|
[4] |
LOCK WASHER,3/8 0.381 CST ZND
|
NH
|
| 18. |
9635884
|
[9] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
|
| 19. |
51200064
|
[4] |
U-BOLT
|
FLX
us 1/2" x 3 1/8" w x 4" d 1 1/4" thread
|
| 20. |
9628503
|
[4] |
NUT,3/8"-16, G5
|
NH
|
| 21. |
9627887
|
[4] |
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5, Full Thd
|
NH
|
| 22. |
6855
|
[3] |
CLEVIS PIN
|
FLX
1/2" x 2 3/4" fl
|
| 23. |
38-11010
|
[3] |
LOCK PIN,5/32" x 5/8", Slotted
|
CAS
|
| 24. |
425470A1
|
[2] |
SEAL
|
FLX
sponge 1/2" wide x 1/4" thick x 22" long - Cut 22" from 25' roll marked 7306P
|
| 24. |
86992328
|
[2] |
SEAL
|
SAS
sponge 1/2" w x 1/4" thick adhesive
|
| 25. |
80280503
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
|
BEL
|
| 26. |
GL-112
|
[1] |
TRAY
|
FLX
hose, back cover
|
| 27. |
GL-113
|
[1] |
COVER
|
FLX
flip up, hose tray
|
| 28. |
GL-135
|
[1] |
BRACKET
|
FLX
mount, manifold support
|
| 29. |
GL-148FR
|
[2] |
COVER ASSY
|
FLX
end frame
|
| 30. |
GL-160
|
[1] |
SUPPORT
|
FLX
intermediate manifold
|
| 31. |
GL-166
|
[1] |
BRACKET
|
FLX
mount, intermediate manifold - right
|
| 32. |
GL-602
|
[1] |
MOUNTING PLATE
|
FLX
|
| 33. |
GL-739
|
[1] |
BRACKET
|
FLX
Intermediate Manifold
|
| 34. |
GM-279FR
|
[2] |
COVER
|
FLX
plate air outlet red
|
| 35. |
GM-321
|
[1] |
BRACKET
|
FLX
mount ball valve
|
| 36. |
GM-329
|
[1] |
BRACKET
|
FLX
mount, intermediate manifold - left
|
| 37. |
GM-331
|
[1] |
BRACKET
|
FLX
mount, intermediate manifold - left
|
| 100. |
GM-100FR
|
[1] |
FRAME
|
FLX
360 / 380
|
