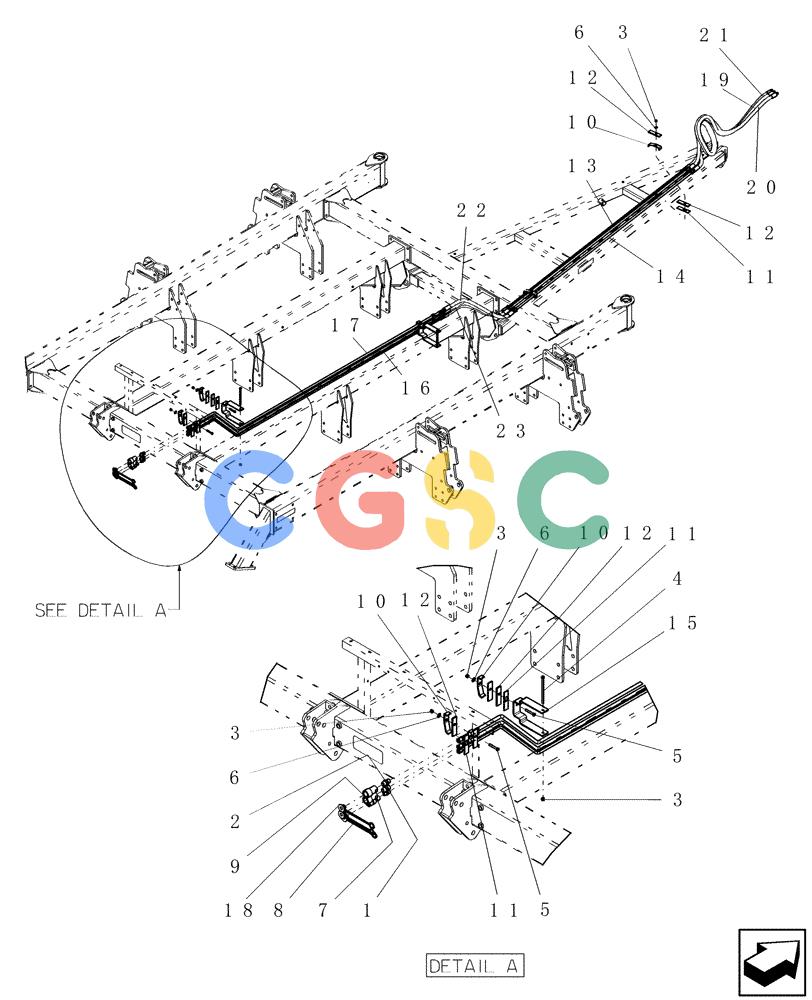

| 1. |
132341
|
[1] |
HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT
|
PA
|
| 2. |
86977779
|
[2] |
HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 14 NPT
|
FTR
|
| 3. |
232-1446
|
[7] |
NUT,3/8"-16, GC
|
CAS
|
| 4. |
280284
|
[2] |
BOLT,Hex, 3/8" - 16 x 7", Gr 5
|
GI
|
| 5. |
113-250
|
[3] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd
|
CAS
|
| 6. |
80702
|
[5] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 7. |
1994568C1
|
[1] |
COUPLING, QUICK, FEM
|
CAS
1/2" fpt
|
| 8. |
86592083
|
[1] |
DUST CAP
|
ZED
pioneer coupler - 1/2"
|
| 9. |
6935
|
[2] |
COUPLING, QUICK, FEM
|
FLX
3/4"
|
| 10. |
1026712
|
[5] |
CLAMP
|
CON
5"
|
| 11. |
1026713
|
[5] |
CLAMP
|
CON
backing
|
| 12. |
1026714
|
[10] |
ISOLATOR
|
CON
neoprene 1/4" tk pln
|
| 13. |
1026743
|
[1] |
HYD TUBE,0.5" Diameter, 108" Length
|
CON
assy 1/2" x 108"
|
| 14. |
1026745
|
[2] |
TUBE,0.75" Diameter, 108" Length
|
CON
assy 3/4" x 108"
|
| 15. |
312995A1
|
[2] |
MOUNTING PARTS
|
CON
hyd clamp
|
| 16. |
425678A2
|
[1] |
HYD TUBE
|
SAS
1/2" x 132"
|
| 17. |
425679A2
|
[2] |
HYD TUBE
|
SAS
3/4" x 132"
|
| 18. |
6934
|
[2] |
PLUG
|
FLX
dust, pioneer coupler - 3/4"
|
| 19. |
GR-256A
|
[1] |
HYDRAULIC HOSE,0.75" ID x 96.00"
|
FLX
Fan pressure
|
| 20. |
GR-257A
|
[1] |
HYDRAULIC HOSE,0.75" ID x 96.00"
|
FLX
Fan return
|
| 21. |
GR-260A
|
[1] |
HYDRAULIC HOSE
|
FLX
ext case drain
|
| 22. |
350404A1
|
[2] |
HOSE
|
CON
3/4" x 48"
|
| 23. |
351469A1
|
[1] |
HOSE
|
FLX
1/2" x 48"
|
