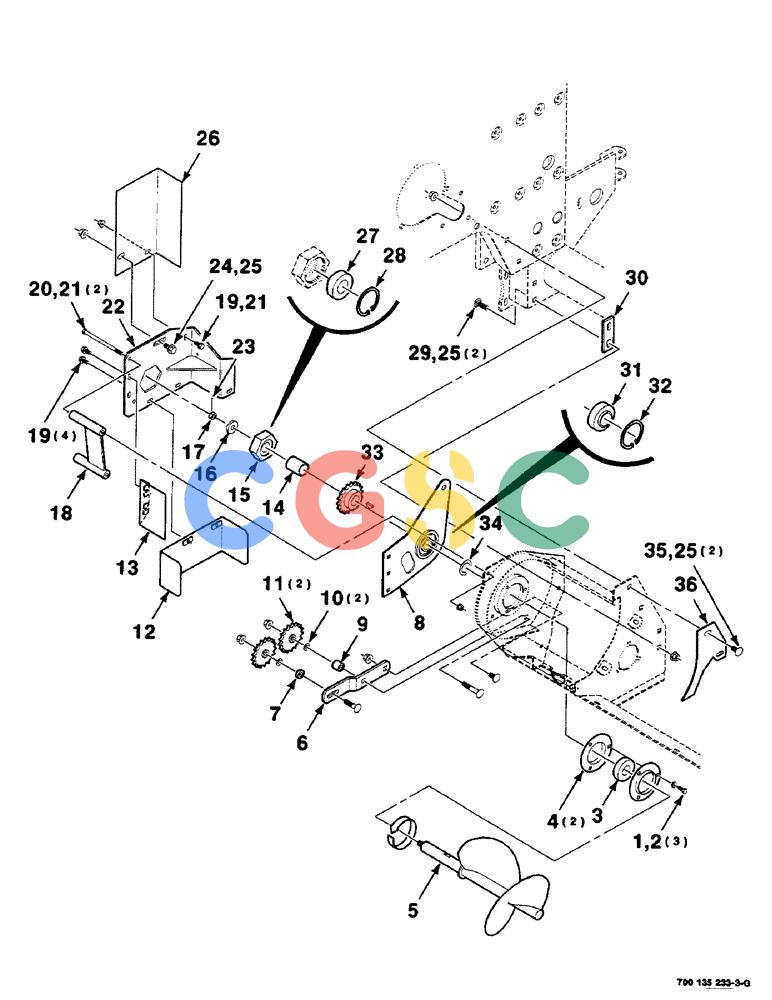

| 1. |
413-612
|
[3] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187204, 86500692
|
| 2. |
492-11038
|
[3] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 3. |
565672R92
|
[1] |
SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"
|
IH
BEARING - less collar Superseded by part number: 84330041
|
| 4. |
617863R1
|
[2] |
FLANGED BEARING
|
IH
|
| 5. |
700150090
|
[1] |
AUGER
|
HFI
WA - right
|
| 6. |
700150076
|
[1] |
SUPPORT
|
HFI
|
| 7. |
6582696
|
[1] |
SPACER
|
CAS
|
| 8. |
700150097
|
[1] |
SUPPORT
|
HFI
ASSEMBLY - right (Includes item 31 and 32)
|
| 9. |
700150104
|
[1] |
SPACER
|
HFI
|
| 10. |
95-81100
|
[2] |
WASHER,33/64" x 7/8" x .049"
|
CAS
1/2 X 18 GAUGE NRMB Superseded by part number: 86639334
|
| 11. |
700716888
|
[2] |
SPROCKET ASSY.
|
CAS
SPROCKET - idler, 17 tooth
|
| 12. |
700135742
|
[1] |
SHIELD
|
HFI
WA - right
|
| 13. |
700150081
|
[1] |
SHIELD
|
HFI
WA - right
|
| 14. |
6587869
|
[1] |
SPACER
|
HFI
|
| 15. |
700150087
|
[1] |
HUB
|
HFI
ASSEMBLY (Includes items 27 and 28)
|
| 16. |
6181994
|
[1] |
WASHER
|
CAS
- special
|
| 17. |
74344
|
[1] |
NUT
|
CAS
1/2-20 SHN
|
| 18. |
700150079
|
[1] |
SUPPORT
|
HFI
WA
|
| 19. |
409-7612
|
[5] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 20. |
413-696
|
[2] |
BOLT,Hex, 3/8" - 16 x 6", Gr 5
|
CAS
3/8-16 X 6 C Superseded by part number: 280258
|
| 21. |
232-5316
|
[3] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 22. |
700150073
|
[1] |
SUPPORT
|
HFI
WA - right Superseded by part number: 87034804, 86521609, 700132550, 86508773, 700136130, 700710049
|
| 23. |
432-816
|
[1] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 24. |
360-816
|
[1] |
BOLT,Hex, 1/2" - 13 x 1", Gr 8
|
CAS
1/2-13 X 1 HFS GR8 Superseded by part number: 87034823
|
| 25. |
231-5348
|
[5] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 26. |
700151504
|
[1] |
SHIELD
|
HFI
|
| 27. |
586649R92
|
[1] |
BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W
|
IH
- cylindrical Superseded by part number: 47577194
|
| 28. |
100-21244
|
[1] |
SNAP RING,2.44", Int, #244
|
CAS
Ring, Snap, 2.44", Int, #244 Superseded by part number: 32324
|
| 29. |
433-824
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420, 72187237
|
| 30. |
700135747
|
[1] |
PLATE
|
HFI
|
| 31. |
587015R92
|
[1] |
BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W
|
IH
- cylindrical
|
| 32. |
740415
|
[1] |
RING, SNAP
|
IH
RING - retaining Superseded by part number: 70-6083T1
|
| 33. |
700150100
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET WA - 18 tooth (Includes items 27 and 28)
|
| 34. |
495-81205
|
[1] |
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
|
CAS
1-1/4 X 18 GAUGE NRMB
|
| 35. |
433-820
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 36. |
700135748
|
[1] |
PLATE
|
HFI
|
