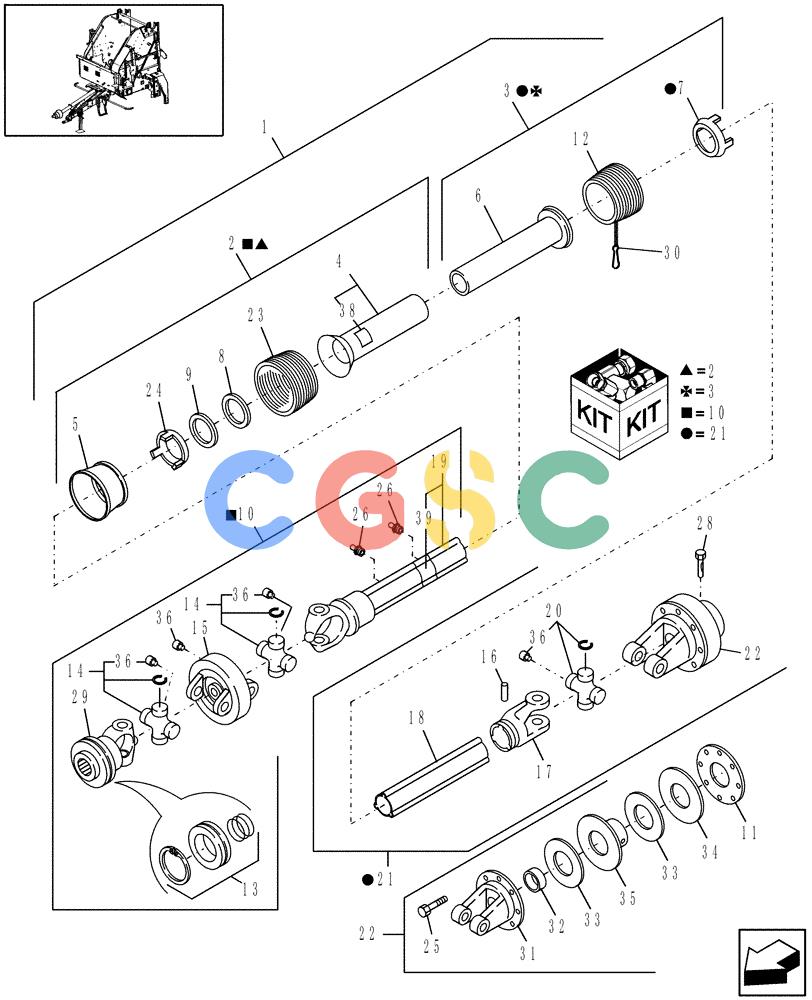

凯斯零件查询(RBX563) - CASE IH ROUND BALER (9/05-12/06) (01.10) - POWER TAKE OFF, 540 RPM, SLIP CLUTCH, NORTH AMERICA, PRIOR TO P.I.N. Y6N016413 Case Agriculture

作者：广数供应链运营团队

浏览数：

时间：2025-01-22 16:35:16

Parts Contact me WhatsApp

Pos.	Part No	Qty	Parts name	Comments
1.	86604848	[1]	PTO	NH 540 RPM, Slip Clutch Superseded by part number: 87516693
2.	86979217	[1]	KIT	PA Shield, Front Superseded by part number: 87552993
3.	86979218	[1]	KIT	PA Shield, Rear Superseded by part number: 87552993
4.	NSS	[1]	NOT SOLD SEPARAT	CON Cone, Outer
7.	86979196	[1]	BEARING,86mm ID x 132mm OD x 12mm H	PA
8.	86979199	[1]	BEARING,95.5 mm ID x 115.5 mm OD x 33 mm	PA
10.	86979215	[1]	PTO SHAFT	PA Front, 1-3/8", 6 Tooth Spline, 540 RPM Standard Superseded by part number: 87516693
10.	87027319	[1]	PTO	PA Front, 1-3/8", 21 Spline, 1000 RPM Optional
10.	87027320	[1]	PTO	PA Front, 1-3/4", 20 Spline, 1000 RPM Optional
11.	86979205	[1]	BELLEVILLE SPRING	PA
13.	87018800	[1]	KIT	PA Ball Collar
14.	86979188	[2]	SPIDER,30.2mm Cap Dia, 92mm L, Grease-able	PA Cross
15.	86979189	[1]	BODY	PA
16.	86979202	[1]	PIN	PA Spring Superseded by part number: 14610770
17.	86979192	[1]	YOKE	PA
18.	86979190	[1]	TUBE,1070 mm L	PA Drive
19.	86979191	[1]	YOKE,1110.50 mm L	PA
20.	86979193	[1]	SPIDER	PA Superseded by part number: 84355352
21.	86979216	[1]	PTO SHAFT	PA Rear Superseded by part number: 87516693
22.	86979194	[1]	CLUTCH	PA Slip
24.	86979197	[1]	SHIELD	PA
25.	87012736	[8]	BOLT AND NUT	PA Includes: Nut
26.	87012758	[2]	LUBE NIPPLE	PA LUBRICATOR Superseded by part number: 84036369
27.	PL	[17]	PROCURE LOCALLY	BAS Screw
28.	86625865	[1]	KIT	NH Tapered
29.	86979187	[1]	YOKE	PA Universal Joint, 1-3/8", 6 Tooth Spline, Standard, 540 RPM
29.	86705060	[1]	YOKE	GI Universal Joint, 1-3/8", 21 Spline, Optional, 1000 RPM
29.	86705059	[1]	YOKE	PA Universal Joint, 1-3/4", 20 Spline, Optional, 1000 RPM
30.	86979198	[1]	CHAIN,229mm L	PA
31.	86979201	[1]	YOKE	PA
32.	86984909	[1]	BUSHING	EML Superseded by part number: 84026575
33.	86625862	[2]	DISC	NH Superseded by part number: 86517364
34.	86625863	[1]	THRUST PLATE	NH
35.	86625864	[1]	HUB	NH
36.	321204	[4]	LUBE NIPPLE,M6 x 1.0 x 16mm OAL	ZED
38.	849471	[1]	DANGER DECAL	NH English
38.	849482	[1]	DANGER DECAL	NH French
39.	849472	[1]	DANGER DECAL	NH English
39.	849483	[1]	DANGER DECAL	NH French
