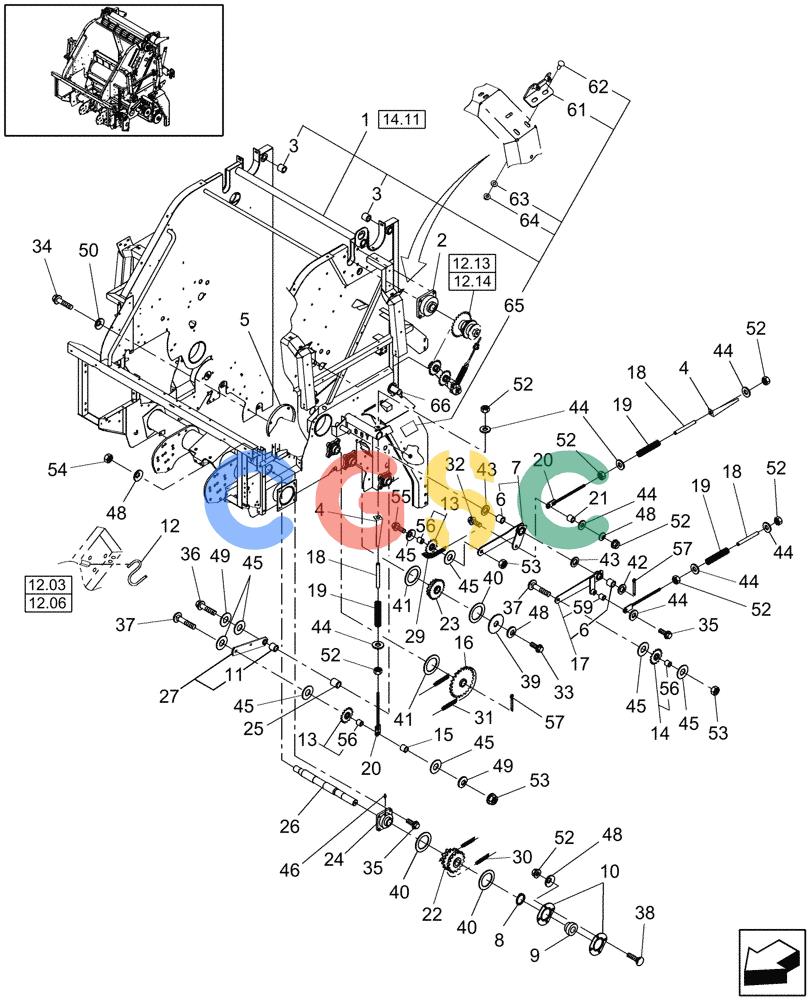

凯斯零件查询(RB464) - CASE IH ROUND BALER (7/07-1/14) (12.15) - MAIN FRAME & DRIVE, LH, ROTOR Case Agriculture

作者：广数供应链运营团队
浏览数：
时间：2025-01-21 20:57:25
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
1. 87630652 [1]   FRAME   NH Main, North America, Twine/Net, Includes: Ref. 65
1. 87630651 [1]   FRAME   NH Main, Europe & R.O.W., Twine
1. 87630653 [1]   FRAME   NH Main, Europe & R.O.W., Twine/Net
2. 86590752 [1]   BEARING ASSY   NH Superseded by part number: 87660333
3. 86514470 [2]   BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L   NH
4. 86643093 [2]   INDICATOR   NH
5. 87040530 [2]   DISC   PA
6. 27639 [2]   BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L   NH
7. 86632214 [1]   ARM   NH Inner, Includes: Ref. 6 Superseded by part number: 87033334
8. 100-16175 [1]   SNAP RING,#175, Ext   CAS Superseded by part number: 86515809
9. 412441 [1]   ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore   PA & Collar
10. 86548973 [2]   FLANGE   NH Superseded by part number: 86620027
11. 84019797 [1]   SLEEVE,25mm ID x 28mm OD x 25mm L   NH Superseded by part number: 604085
12. 115680 [1]   HOOK   NH
13. NS [2]   NOT SERVICED   BAS SPROCKET 13T, Plastic, Production Only {87050058}
13. 66614 [2]   SPROCKET,RC80, 13T   NH 13T, Steel, service Only Superseded by part number: 84401598
14. 87017554 [1]   DRIVEN SPROCKET   PA 12T
15. 86529376 [1]   SPACER   NH
16. 86610108 [1]   SPROCKET   NH 25 T, RC 80 Superseded by part number: 87664055
17. 86632217 [1]   LIFT ARM   NH Outer Superseded by part number: 87033674
18. 86637258 [3]   TUBE,19.05 mm OD x 228.60 mm L   NH
19. 86618710 [3]   SPRING,1-3/8" OD x 8-5/8" L   NH Compression, 8-5/8" L
20. 86633971 [3]   BOLT,M12 x 1.75 x 377.5mm L   NH Linkage, M12 x 1.75 Threaded
21. 45455 [2]   SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk   NH 17/32" ID x 1" OD x 3/8"
22. 86610107 [1]   SPROCKET   NH Triple, 18T/RC 80,13T/RC 80,14T/RC100 Superseded by part number: 87664056
23. 86610110 [1]   SPROCKET   NH Double, 17T/RC 80, 20T/RC 100 Superseded by part number: 87664057
24. 86609558 [1]   BEARING ASSY,45mm ID   NH
25. 86614030 [1]   SPACER   NH 30mm
26. 86629575 [1]   SHAFT   NH
27. 86611436 [1]   ARM   NH
29. 86549269 [1]   CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm   PA Roller, RC 80, 64 Pitches, Includes: Ref. 58
30. 86562829 [1]   CHAIN,100, 67 Links x 31.75mm = 2127.25mm   NH Roller, RC 100, 67 Pitches, Includes: Ref. 59 & 60
31. 86611455 [1]   CHAIN,80P, 67 Links x 25.4mm = 1701.8mm   NH RC 80, 67 Total Pitches, Includes: Ref. 51 & 58
32. 811-12040 [1]   CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8   CAS Superseded by part number: 328754
33. 844-12030 [1]   BOLT,Hvy Hex, M12 x 30mm, Cl 8.8   CAS Superseded by part number: 9670066
34. 844-10020 [4]   BOLT,Hvy Hex, M10 x 20mm, Cl 8.8   CAS Superseded by part number: 86050286
35. 86629541 [5]   BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8   NH
36. 120090 [1]   BOLT,Hex, M16 x 50mm, Cl 8.8   NH
37. 811-16060 [2]   CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 60mm, Cl 8.8   RAC Superseded by part number: 87552612
38. 335890 [4]   CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd   NH
39. 694478 [1]   WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk   NH Special, Hardened
40. 58821 [1]   WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk   NH Special
41. 86619043 [1]   WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk   NH
42. 27696 [1]   WASHER,1.281" ID x 2" OD x .060" Thk   NH Special Superseded by part number: 675
43. 142656 [1]   WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk   NH 1-1/4"
44. 80700 [8]   WASHER,0.56" ID x 1.38" OD x 0.11" Thk   NH
45. 495-11066 [1]   WASHER,5/8", SAE   CAS Superseded by part number: 87365
46. 219-1 [1]   LUBE NIPPLE,1/8" - 27 NPTF   CAS Superseded by part number: 80710
47. 140020 [1]   WASHER,17.5mm ID x 30mm OD x 3mm Thk   NH
48. 140046 [10]   BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk   NH
49. 140048 [1]   BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk   NH
50. 140045 [4]   BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk   NH
51. 86977428 [1]   CONNECTING LINK   PA Offset Superseded by part number: 241-1718
52. 825-1412 [16]   NUT,M12, Cl 8   CAS Superseded by part number: 9706685
53. 832-46416 [3]   NUT,M16 x 2, Cl 8   CAS Superseded by part number: 86000441
54. 9804279 [6]   FLANGE NUT,Hex, M12, Cl 8   NH Superseded by part number: 86512497
55. 120091 [3]   SCREW,Hex, M16 x 60mm, Cl 8.8   NH Superseded by part number: 323866
56. 144819C91 [1]   BEARING   IH Superseded by part number: 149261C91
57. 432-1232 [2]   COTTER PIN,3/16" OD x 2" L   CAS Superseded by part number: 87400
58. 9620569 [1]   CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L   NH Superseded by part number: 241-1418
59. 86977432 [1]   LINK,31.75mm Pitch   NH Offset
60. 86595263 [1]   LINK,31.75mm Pitch   PA
61. 87037410 [4]   HINGE   PA Lower, Square-Shaped
62. 308761 [8]   CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8   NH
63. 322358 [8]   BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk   NH
64. 825-2408 [8]   FLANGE NUT,M8 x 1.25, Flg, Cl 8   CAS Superseded by part number: 86505868
65. 86631518 [2]   DANGER DECAL   NH English
65. 86632801 [2]   DECAL   NH DANGER, French
66. 86636753 [1]   PIN   NH Tailgate Latch Pivot
