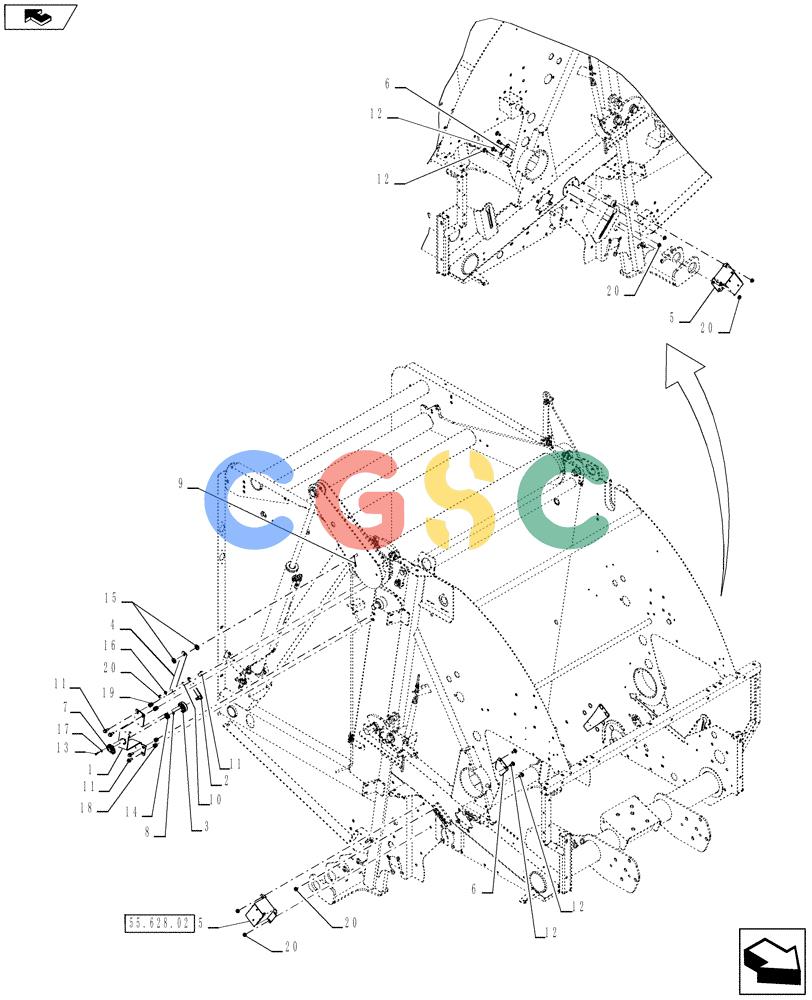

| 1. | 84275950 | [1] |
MOUNT |
NH |
| 2. | 84319036 | [1] |
ARM |
NH |
| 3. | 84308004 | [1] |
HUB |
NH |
| 4. | 84294382 | [1] |
STRAP |
NH |
| 5. | 0C | [2] |
ORDER COMPONENTS |
NHSensor |
| 6. | 86637389 | [2] |
SPRING |
NH |
| 7. | 86977396 | [1] |
POTENTIOMETER,3000 Ohm, 16 VDC |
PA |
| 8. | 86000439 | [1] |
SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External |
NH |
| 9. | 80756 | [1] |
COTTER PIN,1/8" x 3/4" |
NH |
| 10. | 177822 | [1] |
SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk |
NH |
| 11. | 9804258 | [5] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8 |
NH |
| 12. | 86507486 | [12] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8 |
NH |
| 13. | 412255 | [2] |
BOLT,Hex, M4 x 20mm, Cl 8.8 |
NH |
| 14. | 86613601 | [1] |
WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk |
NHUrethane |
| 15. | 80702 | [2] |
WASHER,0.44" ID x 1" OD x 0.08" Thk |
NH |
| 16. | 80664 | [1] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk |
NH |
| 17. | 9672521 | [2] |
LOCK WASHER,Ext Tooth, #10 |
WIN |
| 18. | 86610200 | [2] |
THREADED INSERT,M8 x 1.25 |
NH |
| 19. | 86610201 | [2] |
INSERT,M8 |
NH |
| 20. | 9804277 | [13] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8 |
NH Superseded by part number: 86505868 |
