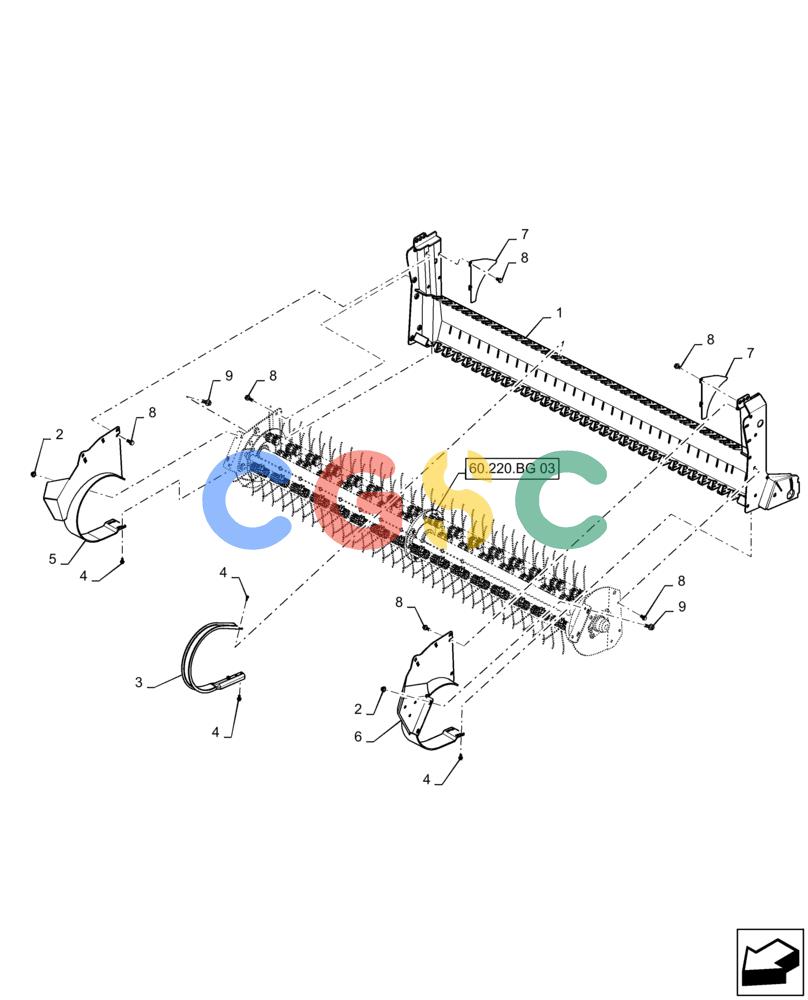

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 47736812 | [1] | FRAME | NH 1.8M Pickup, OSR |
| 2. | 9804278 | [4] | FLANGE NUT,M10 x 1.5, Cl 8 | NH |
| 3. | 84310057 | [27] | MOUNT | NH |
| 4. | 87039762 | [66] | SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8" | PA Superseded by part number: 570821 |
| 5. | 47457010 | [1] | GUIDE | NH RH |
| 5. | 47881311 | [1] | GUARD | NH RH |
| 6. | 47457007 | [1] | GUIDE | NH LH |
| 6. | 47881438 | [1] | GUARD | NH LH |
| 7. | 84427606 | [2] | SHIELD | NH |
| 8. | 86050286 | [16] | FLANGE BOLT,M10 x 20mm, Cl 8.8 | NH |
| 9. | 9804262 | [4] | BOLT,M10 x 39.2mm, Cl 8.8 | NH Superseded by part number: 9840672 |
