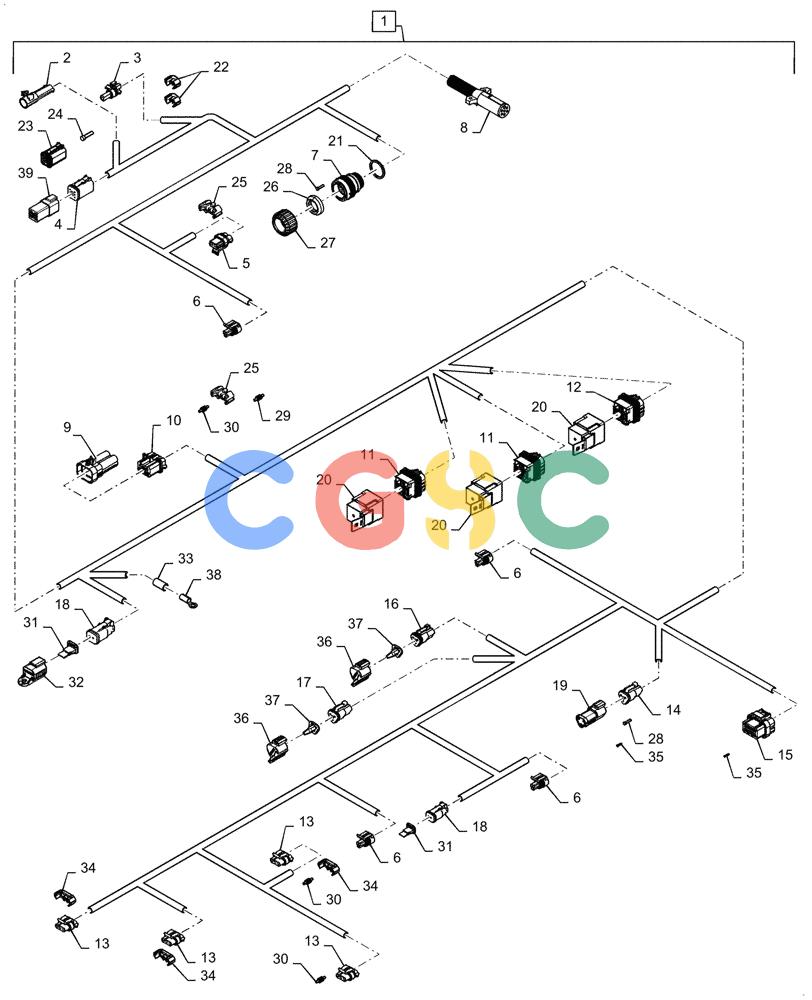

| 1. |
47504521
|
[1] |
WIRE HARNESS
|
NH
Standard, BA, Incl 2 - 38
|
| 2. |
87697527
|
[1] |
ELEC CONNECTOR,Male, 1 Pole
|
RAC
X-005A Brake Light Override
|
| 3. |
87697528
|
[1] |
ELEC CONNECTOR,Female, 1 Pole
|
RAC
X-005B Brake Light Override
|
| 4. |
87694112
|
[1] |
ELEC CONNECTOR,Female, 6 Pole
|
NH
X-002 Lighting Control Module Superseded by part number: 225351C1
|
| 5. |
87679438
|
[1] |
WIRE CONNECTOR,Female
|
RAC
X-051 Twine Wrap Motor
|
| 6. |
87418311
|
[4] |
ELEC CONNECTOR,Female, 3 Cavities
|
FAR
X-010 Twine Arm Position Sensor, X-28, LH Bale Shape Sensor, X-29 RH Bale Shape Sensor, X-30 Bale Size Sensor
|
| 7. |
84324036
|
[1] |
ELEC CONNECTOR
|
GI
X-012 Baler to Tractor
|
| 8. |
84137504
|
[1] |
MULTIPOLE CONNECTOR,Female, 7 Pole
|
PA
X-001 Light Connector Superseded by part number: 121646C1
|
| 9. |
84569736
|
[1] |
WIRE CONNECTOR
|
BRR
X-055 Net Option Connector
|
| 10. |
84566003
|
[2] |
WIRE CONNECTOR
|
BRR
X-055 Net Option Connector
|
| 11. |
84423677
|
[2] |
X-020 Motor Direction Relay B, X-021 Motor Direction Relay
|
MULTIPOLE CONNECTOR
|
| 12. |
87692853
|
[1] |
MULTIPOLE CONNECTOR,Female, 4 Pole
|
NH
X-049 Power Relay
|
| 13. |
87688716
|
[5] |
ELEC CONNECTOR,Female, 3 Cavities
|
FAR
X-003 LH Stop/Tail Light, X-004 LH Hazard Tail Light, X-006 RH Stop/Tail Light, X-007 RH Hazard Tail Light, X-028
|
| 14. |
87695580
|
[1] |
ELEC CONNECTOR,Female, 3 Pole
|
BN
X-009 CAN Termination Resistor
|
| 15. |
82028495
|
[1] |
MULTIPOLE CONNECTOR,Female, 34 Pole
|
JES
X-060 Intermediate Control Mosule
|
| 16. |
87695549
|
[1] |
ELEC CONNECTOR,Female, 3 Cavities
|
RAC
X-069B Bypass Option, Grey
|
| 18. |
87695582
|
[2] |
ELEC CONNECTOR,Female, 2 Pole
|
RAC
X-035 Bale Ramp Option Connector, X-048A Tailgate Awitch, RH
|
| 19. |
84058092
|
[1] |
CONTACT HOUSING,120 Ohm Resistor
|
ZED
|
| 20. |
82017871
|
[3] |
RELAY,12V, 20A
|
BAS
Superseded by part number: 84411012
|
| 21. |
792026
|
[1] |
LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk
|
NH
|
| 22. |
87704919
|
[2] |
LOCKING TAB,Wedge Lock
|
RAC
|
| 24. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
Superseded by part number: 87695652
|
| 25. |
84806458
|
[1] |
COLLAR
|
ZED
|
| 26. |
87696199
|
[1] |
SEALING RING
|
CUR
|
| 27. |
87696197
|
[1] |
NUT
|
CUR
|
| 29. |
87715495
|
[2] |
|
PLUG
|
| 30. |
87689636
|
[1] |
PLUG,Red, Taxi Seal Connector Cavity
|
SAS
|
| 31. |
84074638
|
[1] |
LOCKING TAB,Locking Wedge, Green
|
ZED
|
| 32. |
84391159
|
[1] |
CAP
|
BN
|
| 33. |
84128198
|
[1] |
HEAT SHIELD
|
GI
|
| 34. |
87693732
|
[4] |
LOCKING TAB,Wedge Lock
|
FAR
|
| 35. |
84147090
|
[1] |
LOCKING TAB,Wedge Lock
|
CUR
|
| 35. |
82017049
|
[1] |
PLUG
|
ZED
|
| 36. |
84391165
|
[2] |
HOUSING,Receptacle
|
BN
|
| 37. |
84074639
|
[2] |
LOCKING TAB,Wedge Lock
|
ZED
Superseded by part number: 89842513
|
| 38. |
84401280
|
[1] |
TERMINAL,Straight, 1/4"
|
BN
X-107 Frame Ground Superseded by part number: 225064C1
|
| 39. |
87537164
|
[1] |
WIRE HARNESS
|
PA
ANZ Jumper
|
