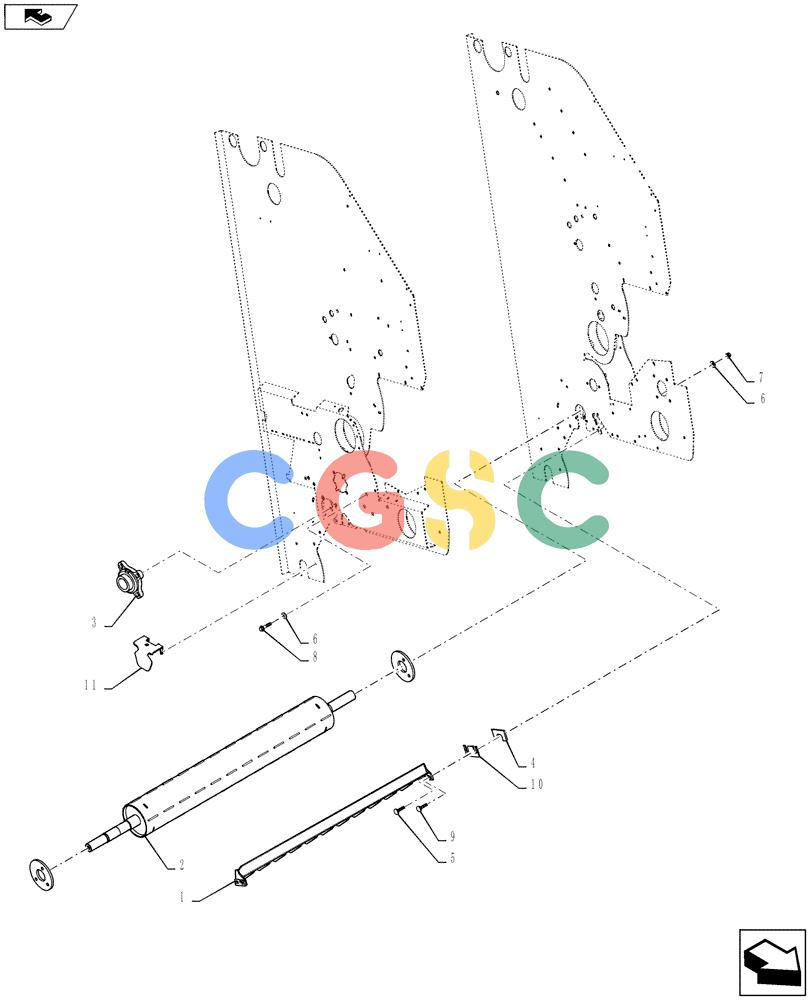

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 87042113 | [1] | RAKE | NH |
| 2. | 87041023 | [1] | ROLL | NH Starter |
| 3. | 86610638 | [2] | BEARING ASSY,45mm ID | NH |
| 4. | 87658033 | [1] | SHIM | PLO .015" |
| 5. | 86512424 | [4] | CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd | NH Superseded by part number: 86512446 |
| 6. | 140045 | [5] | BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk | NH |
| 7. | 9804278 | [4] | FLANGE NUT,M10 x 1.5, Cl 8 | NH |
| 8. | 86050286 | [1] | FLANGE BOLT,M10 x 20mm, Cl 8.8 | NH |
| 9. | 374892 | [2] | CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8 | NH |
| 11. | 87654931 | [1] | SHIELD | NH |
