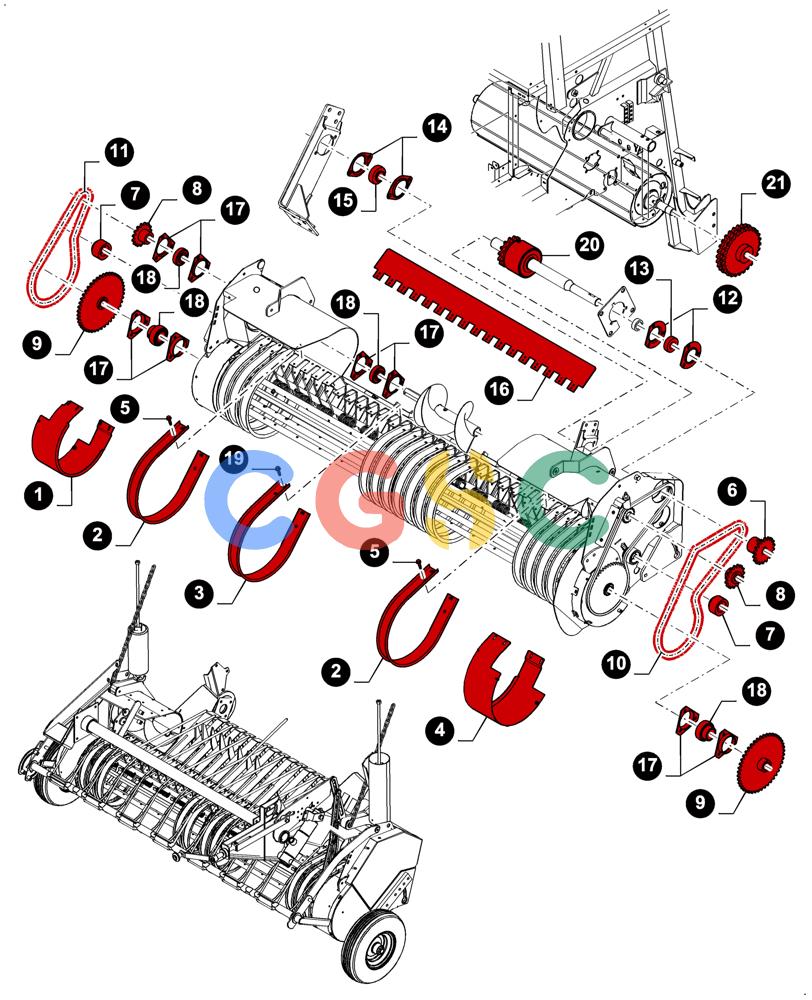

| 1. |
86626559
|
[1] |
GUARD
|
PA
End, RH
|
| 2. |
86643381
|
[14] |
GUARD
|
NH
Dark grey, Installed in front of the RH & LH augers
|
| 3. |
86705250
|
[17] |
GUARD
|
PA
Dark grey, Installed in front of the rotor
|
| 4. |
86625888
|
[1] |
GUARD
|
PA
End, LH
|
| 5. |
87039762
|
[90] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Type F Superseded by part number: 570821
|
| 6. |
87397998
|
[1] |
SPROCKET
|
PA
17T, RC 50 Superseded by part number: 87602188
|
| 6. |
87055082
|
[1] |
SPROCKET
|
PA
18T, RC 50, Optional Superseded by part number: 87397995
|
| 6. |
87602188
|
[1] |
SPROCKET
|
NH
17T, No set-screw required
|
| 6. |
87725037
|
[1] |
SPROCKET
|
NH
17T, RC 50
|
| 7. |
86613200
|
[2] |
IDLER,89mm OD x 47.7mm W
|
NH
Eccentric, Nylon
|
| 8. |
86624712
|
[2] |
SPROCKET
|
NH
14T Superseded by part number: 87641197
|
| 8. |
87026284
|
[2] |
SPROCKET
|
PA
13T, RC 50 Superseded by part number: 87641197
|
| 9. |
86624713
|
[2] |
SPROCKET
|
NH
48T, RC 50 Superseded by part number: 87641160
|
| 10. |
86552479
|
[1] |
CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm
|
GI
Roller, RC 50, 100 Pitches, Chrome, Includes connecting link 86537460
|
| 10. |
87741470
|
[1] |
CHAIN,50, 100 Links x 15.88mm = 1587.5mm
|
PA
Roller, Optional heavy duty, RC 50, 100 Pitches, Includes connecting link 86537460
|
| 10. |
87028682
|
[1] |
CHAIN (AG)
|
PA
CHAIN (AG), Roller, RC50, 100 Pitches
|
| 11. |
87023062
|
[1] |
CHAIN (AG)
|
NH
CHAIN (AG), Roller, #50, 5/8"-pitch, 77 Pitches Superseded by part number: 1791DX, 86595276
|
| 11. |
9849661
|
[1] |
CHAIN
|
NH
Roller, RC 50, 5/8"-pitch, 76 Pitches, Includes connecting link 42472 Superseded by part number: 1791DX
|
| 12. |
86603075
|
[2] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
Bearing
|
| 13. |
214366C91
|
[1] |
BALL BEARING,25.40mm ID x 52mm OD
|
IH
Superseded by part number: 204807C91
|
| 13. |
574844
|
[1] |
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
|
NH
Superseded by part number: 84330070
|
| 14. |
165385
|
[2] |
FLANGE,62 mm ID x 112.7 mm OD x 9.53 mm
|
NH
Superseded by part number: 84447186
|
| 14. |
87106572
|
[2] |
FLANGE
|
GI
Superseded by part number: 84447186
|
| 15. |
617668R92
|
[1] |
BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"
|
IH
Ball Superseded by part number: 84484181
|
| 15. |
38766
|
[1] |
BALL BEARING,31.75mm ID x 62mm OD x 18mm W
|
GI
Superseded by part number: 84484181
|
| 16. |
87050285
|
[1] |
FLOOR,260mm W x 1150mm L, Polyurethane
|
PA
Floor, Plastic, Also requires item 19 Superseded by part number: 47864510, 87577839
|
| 17. |
578189
|
[12] |
FLANGE
|
NH
Superseded by part number: 86620026
|
| 18. |
156816C91
|
[6] |
BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W
|
IH
Superseded by part number: 84330069
|
| 19. |
87034817
|
[34] |
SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"
|
CAS
|
| 20. |
87623182
|
[1] |
CLUTCH
|
NH
Radial Pin
|
| 21. |
86626477
|
[1] |
SPROCKET,29T / 39T
|
NH
Floor roll, 29T & 39T Superseded by part number: 87047645
|
| 21. |
87039066
|
[1] |
SPROCKET
|
PA
Floor roll, 29T & 41T Superseded by part number: 87656795
|
