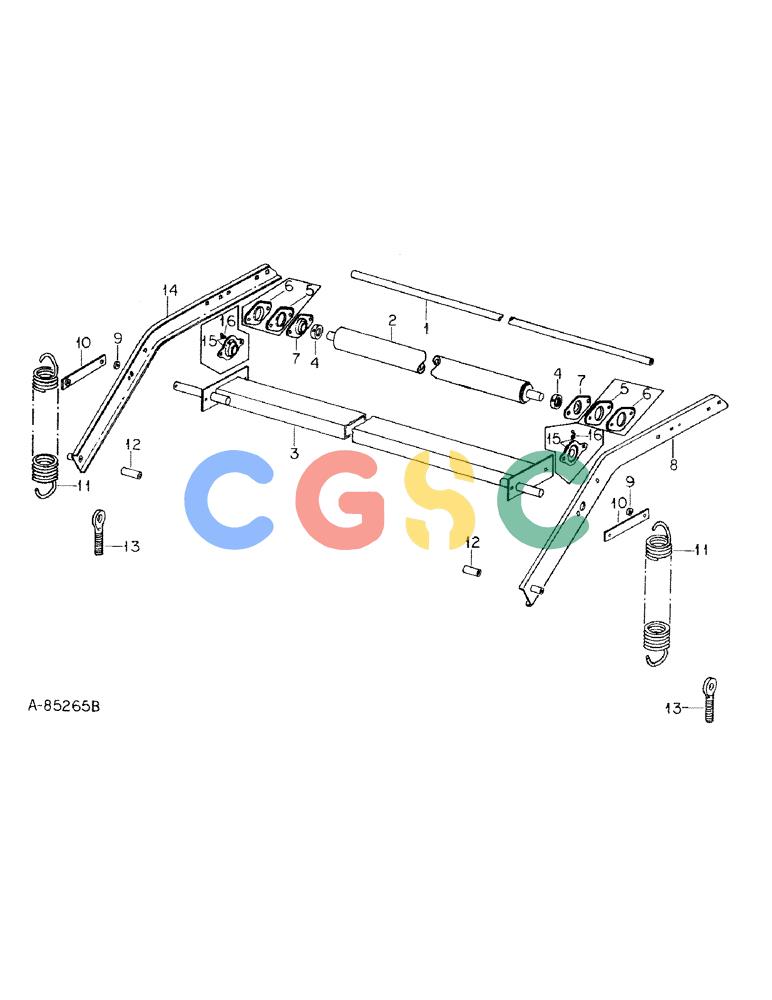

| 1. |
208602C2
|
[1] |
SPACER
|
IH
ROD, tie bar
|
| . . |
180124
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
IH
SCREW, 3/8-16 x 1-1/4 znd hex-hd cap Superseded by part number: 88011
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
208597C2
|
[2] |
TUBE
|
IH
ASSY, belt tightener Superseded by part number: 211291C1
|
| . . |
591715R1
|
[6] |
WASHER
|
IH
1.051 x 1.500 x .054 (or as required) Superseded by part number: 86624169
|
| 3. |
208593C1
|
[1] |
TUBE
|
IH
ASSY, tie
|
| . . |
18508R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 znd sq-nk crg Superseded by part number: 86508748
|
| . . |
9411655
|
[4] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8-16 cad hex. lock Superseded by part number: 88902
|
| 4. |
218423C1
|
[4] |
COLLAR
|
IH
W/SET SCREW, brg locking Superseded by part number: 47577183
|
| 5. |
208304C1
|
[4] |
CASE
|
IH
FLANGE, flush mount, outer, serial No. 7810 and below
|
| 6. |
208303C1
|
[1] |
FLANGED BEARING,1.915" ID x 2.7" OD x 0.32"
|
IH
FLANGE, flush mount, inner, serial No. 7810 and below Superseded by part number: 87448707
|
| . . |
18764R1
|
[8] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 znd hex-hd mach Superseded by part number: 424-512
|
| . . |
19575R1
|
[4] |
|
P
BOLT, 5/16 x 1-1/8 hex-hd mach
|
| . . |
938017R1
|
[12] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16-18 znd hex lock Superseded by part number: 145458
|
| 7. |
214490C91
|
[4] |
BALL BEARING,25.4mm ID
|
IH
BEARING ASSY, roller, replaces 214366C91
|
| . . |
16897R1
|
[8] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 crg type 1 Superseded by part number: 412-512
|
| 8. |
208588C2
|
[1] |
FRAME
|
IH
CHANNEL ASSY, bale tightener LH
|
| 9. |
455150R1
|
[2] |
WASHER
|
IH
SPACER Superseded by part number: 87393626
|
| . . |
17351R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
482256R1
|
[4] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8-16 znd hex. lock Superseded by part number: 247780
|
| 10. |
208603C1
|
[2] |
STOP
|
IH
ASSY, belt tightener arm
|
| 11. |
488238R2
|
[2] |
SPRING
|
IH
belt tightener
|
| . . |
53718V
|
[2] |
WASHER
|
IH
1-9/32 x 2 x 4 ga Superseded by part number: 195-2120
|
| . . |
137308
|
[2] |
DRIVEN PULLEY,1/4" x 2 1/2"
|
NNA
Split (Cotter), 1/4" x 2 1/2" Superseded by part number: 432-1640, 432-1640, NLS
|
| 12. |
208592C2
|
[2] |
|
P
SPACER, channel pivot
|
| . . |
271779
|
[2] |
STRIP,Hex, 3/4" - 10 x 4", Gr 5
|
IH
SCREW, 3/4-10 x 4 znd hex-hd cap Superseded by part number: 413-1264, 413-1264, NLS
|
| . . |
280954
|
[2] |
NUT,3/4"-10, G5
|
NH
|
| . . |
87340
|
[2] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
WASHER, LOCK, 3/4"
|
| . . |
131000
|
[4] |
WASHER
|
IH
.812 x 2.00 x .122 Superseded by part number: 495-21081, 495-21081, NLS
|
| . . |
467750R1
|
[2] |
WASHER
|
IH
25/32 x 1-1/2 x 11 ga znd Superseded by part number: 87034831
|
| 13. |
213697C1
|
[2] |
BOLT
|
IH
EYEBOLT Superseded by part number: 473977R1
|
| . . |
124847
|
[4] |
COLLAR
|
IH
5/8-11 znd hex. jam Superseded by part number: 425-1410
|
| 14. |
208590C2
|
[1] |
FRAME
|
IH
CHANNEL ASSY, bale tightener RH
|
| 15. |
219251C91
|
[4] |
HOUSING, BEARING
|
IH
BEARING ASSY, roller, export only, relubricatable bearing used on No. 5 and No. 7 rolls Superseded by part number: 87569, 219251C92
|
| . . |
598803R1
|
[8] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd
|
IH
BOLT, 5/16 x 1 crg type 5 Superseded by part number: 88992
|
| 16. |
87569
|
[4] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 taper drive thd lube
|
