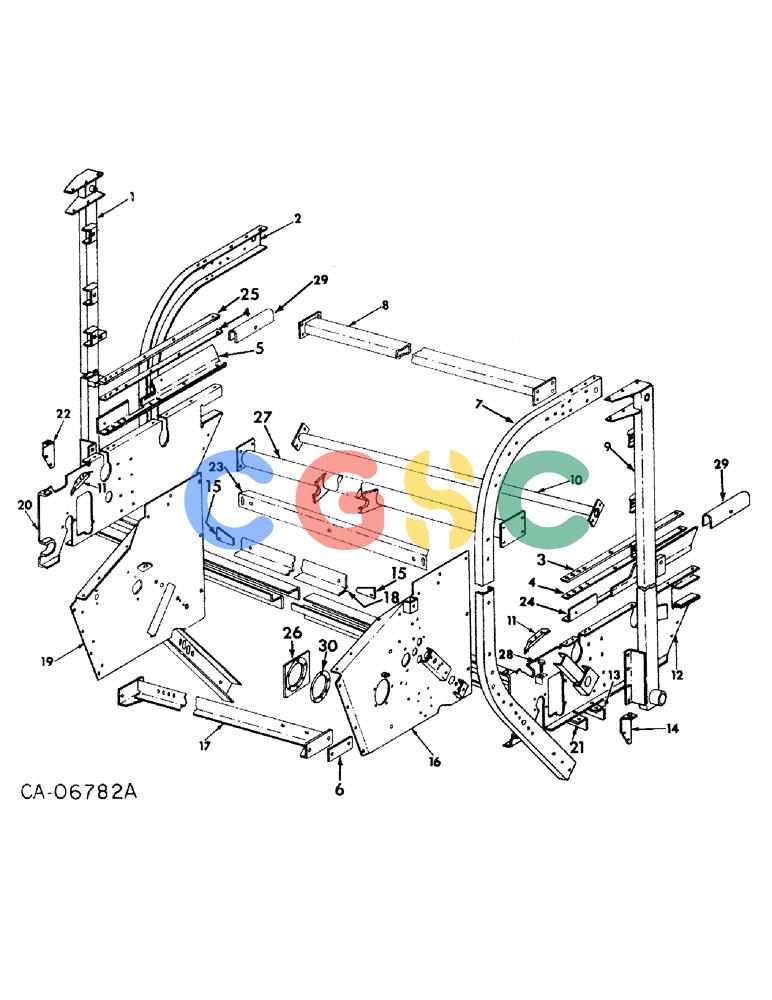

| 1. |
219002C93
|
[1] |
TUBE
|
IH
ASSY W/PRODUCT GRAPHIC, vertical tube RH
|
| . . |
17351R1
|
[6] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
482256R1
|
[6] |
BEARING LOCK NUT,Flg, USR, 3/8"-16
|
IH
3/8-16 znd hex lock Superseded by part number: 247780
|
| . . |
485734R1
|
[4] |
CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd
|
IH
BOLT, 1/2 x 1-1/4 crg type 5 Superseded by part number: 111-541
|
| . . |
465567R1
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
IH
BOLT, 1/2 x 1-2/ crg type 5 Superseded by part number: 84198537
|
| . . |
180179
|
[8] |
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
|
IH
1/2 x 1-3/4 type 5 Superseded by part number: 113-412
|
| . . |
487374R1
|
[16] |
BEARING LOCK NUT,Flg, USR, 1/2"-13
|
IH
1/2 flange lock Superseded by part number: 86512371
|
| . . |
210316C2
|
[1] |
PRODUCT GRAPHIC
|
IH
warning
|
| 2. |
208410C4
|
[1] |
CHANNEL
|
IH
main frame upper front RH
|
| . . |
17140R1
|
[8] |
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
|
IH
BOLT, 1/2 x 1-1/4 crg type 1 Superseded by part number: 87868
|
| . . |
12686R1
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd
|
IH
BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd Superseded by part number: 84198537
|
| . . |
17452R1
|
[2] |
BOLT,Hex, 1/2"-13 x 1 1/4", G2
|
IH
1/2 x 1-1/4 znd hex hd mach Superseded by part number: 180175
|
| . . |
18497R1
|
[2] |
BOLT,Hex, 1/2"-13 x 1 3/4", G2
|
IH
1/2 x 1-3/4 type 1 Superseded by part number: 179887
|
| 3. |
218455C2
|
[1] |
BAR
|
IH
rear gear runner
|
| 4. |
208417C2
|
[2] |
SHIM
|
IH
rear gate runner
|
| . . |
18495R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8-16 x 1-1/4 znd hex hd mach Superseded by part number: 180124
|
| . . |
18779R1
|
[4] |
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
|
IH
3/8-16 x 1-1/2 znd hex hd mach Superseded by part number: 179843
|
| . . |
120377
|
[8] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
19031R1
|
[8] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2
|
IH
BOLT, 3/8 x 1-1/4 plow type 1 Superseded by part number: 118-138
|
| . . |
120382
|
[8] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 5. |
218998C92
|
[1] |
BRACKET
|
IH
SUPPORT W/PRODUCT GRAPHIC, gate guide RH
|
| 6. |
218386C1
|
[1] |
REINFORCEMENT
|
IH
gear box mounting
|
| 7. |
208409C4
|
[1] |
CHANNEL
|
IH
main frame upper front LH
|
| 8. |
208396C1
|
[1] |
ANCHOR
|
IH
ASSY, cross beam
|
| 9. |
219001C93
|
[1] |
TUBE
|
IH
ASSY W/PRODUCT GRAPHIC, vertical tube LH
|
| 10. |
208399C1
|
[1] |
ROD
|
IH
TIE ASSY, rear frame cross
|
| 11. |
208612C1
|
[2] |
SHIELD
|
IH
lower conveyor
|
| 12. |
208367C4
|
[1] |
FRAME
|
IH
ASSY, main LH lower
|
| 13. |
210330C1
|
[1] |
ANGLE
|
IH
roll guard
|
| . . |
154273C1
|
[2] |
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
|
IH
SCREW, 3/8-16 x 1 lock Superseded by part number: 9706726
|
| 14. |
208365C1
|
[1] |
ANCHOR
|
IH
ASSY, spring LH
|
| 15. |
218586C1
|
[2] |
BAR
|
IH
deflector
|
| . . |
18496R1
|
[4] |
BOLT,Hex, 1/2"-13 x 1 1/2", G2
|
IH
1/2 x 1-1/2 type 1 Superseded by part number: 179885
|
| . . |
204813C1
|
[2] |
BOLT,Hex Serr Flg, 1/2" - 13 x 2"
|
IH
SCREW, 1/2-13 x 2 znd hex-hd flange lock Superseded by part number: 409-7832
|
| . . |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
208770C1
|
[6] |
NUT
|
IH
1/2-13 znd hex lock Superseded by part number: 19605R1
|
| . . |
607895R1
|
[6] |
WASHER
|
IH
.531 x 1.000 x .105 Superseded by part number: 86624146
|
| 16. |
218996C93
|
[1] |
PLATE
|
IH
ASSY W/PRODUCT GRAPHIC, main frame LH
|
| . . |
18508R1
|
[1] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 znd sq-nk crg Superseded by part number: 86508748
|
| 17. |
208319C1
|
[1] |
SUPPORT
|
IH
ASSY, gear box
|
| . . |
18707R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
|
IH
BOLT, 1/2 x 1 znd sq-nk crg Superseded by part number: 280499
|
| . . |
27508R1
|
[1] |
SCREW, 7/8-9 x 5 znd dld hex-hd cap
|
|
| . . |
427643
|
[1] |
SLOTTED NUT,7/8"-9, G5
|
CAS
NUT, 7/8-9 znd slt-hex. Superseded by part number: 425-1214
|
| . . |
103387
|
[1] |
COTTER PIN,1/8" x 1 1/2"
|
IH
Pin, Split (Cotter), 1/8" x 1 1/2" Superseded by part number: 80708
|
| 18. |
214408C1
|
[3] |
ANGLE
|
IH
scraper
|
| 19. |
214405C3
|
[1] |
|
P
PLATE ASSY, main frame upper RH
|
| 20. |
208374C4
|
[1] |
|
P
FRAME ASSY, main RH lower
|
| 21. |
214396C1
|
[1] |
SUPPORT ASSY.
|
IH
BLADE, 4 in. tapered roll
|
| . . |
17433R1
|
[2] |
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
|
IH
BOLT, 1/2 x 1 type 1 Superseded by part number: 424-816
|
| 22. |
208366C1
|
[1] |
ANCHOR
|
IH
ASSY, spring RH
|
| 23. |
208412C1
|
[3] |
BLADE
|
IH
SCRAPER, roller
|
| 24. |
218997C92
|
[1] |
SUPPORT ASSY.
|
IH
SUPPORT W/PRODUCT GRAPHIC, gate guide LH
|
| 26. |
218387C1
|
[1] |
RETAINER
|
IH
gear box mtg
|
| 27. |
218396C1
|
[1] |
SUPPORT
|
IH
ASSY, main axle
|
| 28. |
218127C1
|
[2] |
BOLT
|
IH
adjusting
|
| 29. |
218385C1
|
[2] |
SUPPORT
|
IH
rear gate lock
|
| . . |
378484R1
|
[2] |
HEADED PIN,5/16" x 2"
|
IH
PIN, 5/16 x 2. hd type 5 Superseded by part number: 439-5532
|
| . . |
586591R1
|
[2] |
COTTER PIN
|
IH
PIN, 1/8 QA Superseded by part number: 1978737C1
|
| 30. |
663601R1
|
[2] |
SHIM
|
IH
(or as required)
|
