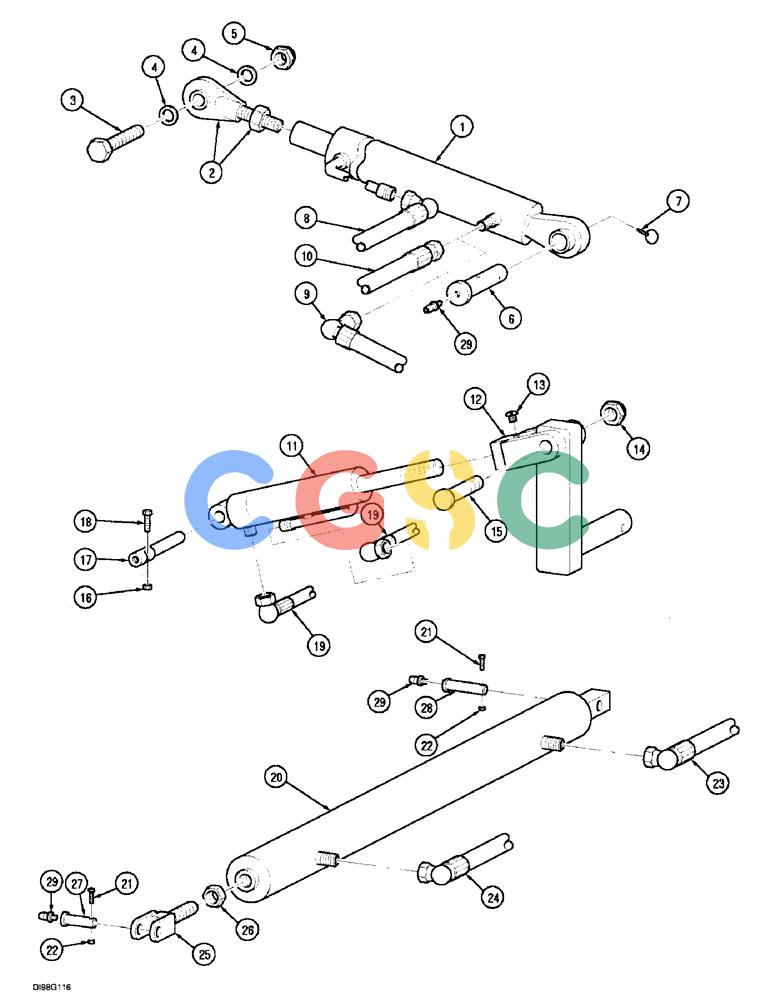

| 1. |
276888A1
|
[1] |
CYLINDER
|
CAS
tilt
|
| 1A. |
276889A1
|
[1] |
SEAL PACKAGE
|
CAS
KIT repair, consists of : 2, 3 and 4
|
| 2. |
276890A1
|
[1] |
EYE
|
CAS
ROD
|
| . . |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
NUT lock
|
| 3. |
814-16090
|
[1] |
BOLT,Hex, M16 x 2 x 90mm, Cl 8.8
|
CAS
Superseded by part number: 350616
|
| 4. |
895-11016
|
[2] |
WASHER,17.5mm ID x 30mm OD x 3mm Thk
|
CAS
Superseded by part number: 80299
|
| 5. |
832-10416
|
[1] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 412066
|
| 6. |
276893A1
|
[1] |
PIN
|
CAS
pivot
|
| 7. |
A30338
|
[1] |
PIN
|
CAS
linch, 1/4 in Superseded by part number: 270184
|
| 8. |
277623A1
|
[1] |
HOSE
|
CAS
ASSY., 520 mm electronic control #8630
|
| 8. |
277624A1
|
[1] |
HOSE
|
CAS
ASSY., 750 mm electronic control cable control #8640, 8650
|
| 8. |
277038A1
|
[2] |
HOSE
|
CAS
ASSY., 1280 mm manual control #8630
|
| 11. |
276566A1
|
[2] |
CYLINDER
|
CAS
position electronic control #8630, 8640, 8650 cable control #8640, 8650
|
| 11A. |
276567A1
|
[2] |
SEAL PACKAGE
|
CAS
KIT repair, Not Illustrated
|
| 12. |
276569A1
|
[2] |
CLEVIS
|
CAS
|
| 13. |
877-10816
|
[2] |
SET SCREW,Hex Skt, M8 x 16mm, Cup Pt
|
CAS
M8 x 16 Superseded by part number: 300477
|
| 15. |
276570A1
|
[2] |
PIN
|
CAS
pivot
|
| 16. |
832-10408
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
CAS
Superseded by part number: 86528579
|
| 17. |
276568A1
|
[2] |
PIN
|
CAS
pivot
|
| 18. |
814-8070
|
[2] |
BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8
|
CAS
Superseded by part number: 7120024
|
| 19. |
277628A1
|
[4] |
HOSE
|
CAS
ASSY., 1950 mm electronic control #8630
|
| 19. |
277888A1
|
[4] |
HOSE
|
CAS
ASSY., 2180 mm #8640, 8650
|
| 20. |
276930A1
|
[1] |
CYLINDER
|
CAS
lift #8640, 8650
|
| 20A. |
276931A1
|
[1] |
SEAL PACKAGE
|
CAS
Not Illustrated
|
| 21. |
614-6045
|
[2] |
BOLT,Hex, M6 x 1 x 45mm, Cl 8.8, Full Thd
|
CAS
BOLT, M6 x 45; 8.8 Superseded by part number: 15212821
|
| 22. |
832-10406
|
[2] |
NUT,M6 x 1, Cl 8
|
CAS
|
| 23. |
277889A2
|
[1] |
HOSE
|
CAS
ASSY., 2870 mm #8640
|
| 23. |
277174A1
|
[1] |
HOSE
|
CAS
ASSY., 570 mm #8650
|
| 24. |
277891A2
|
[1] |
HOSE
|
CAS
ASSY., 3370 mm #8640
|
| 24. |
277914A1
|
[1] |
HOSE
|
CAS
ASSY., 1070 mm #8650
|
| 25. |
276932A1
|
[1] |
CLEVIS
|
CAS
If Used
|
| 25. |
313091A1
|
[1] |
CLEVIS
|
CAS
use with: 313841A1, 319086A1
|
| 26. |
829-4430
|
[1] |
THIN NUT,Thin, M30 x 3.5, Cl 05
|
CAS
lock, M30; 5 Superseded by part number: 84062746
|
| 27. |
276933A1
|
[1] |
PIN
|
CAS
pivot, 28 x 78 mm If Used
|
| 27. |
313842A1
|
[1] |
PIN
|
CAS
pivot, 28 x 98 mm use with: 313841A1, 319086A1
|
| 29. |
219-14
|
[3] |
LUBE NIPPLE,1/4" NPTF
|
CAS
|
