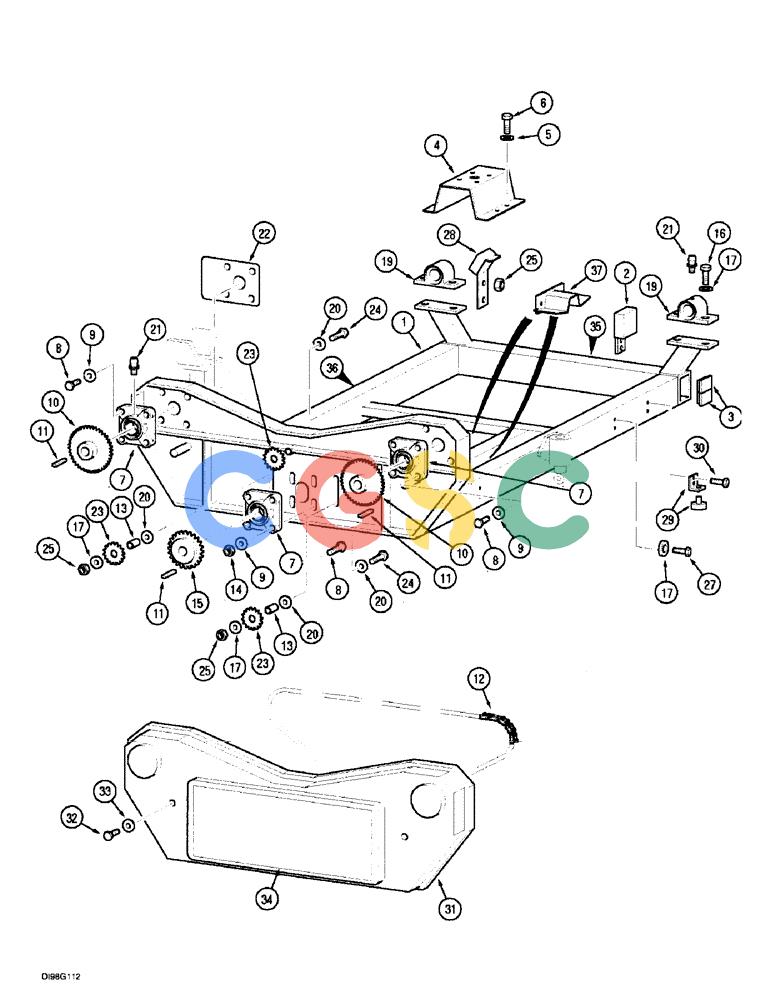

| 1. |
276966A2
|
[1] |
FRAME
|
CAS
ASSY.
|
| 2. |
276968A1
|
[4] |
PLATE
|
CAS
STOP
|
| 3. |
276561A1
|
[4] |
PLUG
|
CAS
60 x 60 mm
|
| 4. |
276716A1
|
[1] |
COVER
|
CAS
top
|
| 5. |
892-11012
|
[4] |
LOCK WASHER,M12
|
CAS
Superseded by part number: 412123
|
| 6. |
614-12030
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 7. |
277483A1
|
[3] |
BEARING ASSY,35 mm ID x 44.4 mm
|
CAS
FLANGE ASSY., Includes: 7A
|
| 7A. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
BEARING ball, Not Illustrated
|
| 8. |
614-12040
|
[12] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 9. |
895-11012
|
[12] |
WASHER,13.5mm ID x 24mm OD x 2.5mm Thk
|
CAS
|
| 10. |
276983A1
|
[2] |
SPROCKET ASSY.
|
CAS
30T double
|
| 11. |
276644A1
|
[3] |
KEY
|
IH
7 x 8 x 30 mm
|
| 12. |
277072A1
|
[1] |
CHAIN (AG)
|
CAS
|
| 12A. |
281703A1
|
[1] |
LINK
|
CAS
connecting, Not Illustrated
|
| 13. |
276989A1
|
[2] |
SPACER
|
CAS
|
| 14. |
832-10412
|
[4] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 412126, 87780366
|
| 15. |
276985A1
|
[1] |
SPROCKET ASSY.
|
CAS
23T double Use With Film Width: 750 mm
|
| 15. |
276984A1
|
[1] |
SPROCKET ASSY.
|
CAS
15T double Use With Film Width: 500 mm
|
| 16. |
614-16035
|
[4] |
BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86529976
|
| 17. |
895-11016
|
[1] |
WASHER,17.5mm ID x 30mm OD x 3mm Thk
|
CAS
Superseded by part number: 80299
|
| 19. |
278130A1
|
[2] |
BEARING HOUSING,35 mm ID x 46 mm
|
CAS
HOUSING ASSY., Includes: 19A
|
| 20. |
282133A1
|
[4] |
SPECIAL WASHER
|
CAS
|
| 21. |
219-14
|
[1] |
LUBE NIPPLE,1/4" NPTF
|
CAS
|
| 22. |
276991A1
|
[2] |
PLATE
|
CAS
If So Equipped
|
| 23. |
276706A1
|
[6] |
SPROCKET ASSY.
|
CAS
17T
|
| 24. |
814-16090
|
[3] |
BOLT,Hex, M16 x 2 x 90mm, Cl 8.8
|
CAS
Superseded by part number: 350616
|
| 25. |
832-10416
|
[7] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 412066
|
| 27. |
814-16100
|
[1] |
BOLT,Hex, M16 x 2 x 100mm, Cl 8.8
|
CAS
Superseded by part number: 374889
|
| 28. |
276969A1
|
[2] |
PLATE
|
CAS
STOP
|
| 29. |
REF
|
[1] |
INSTRUCTION
|
NH
BRACKET ASSY., See Figure: 2-52
|
| 30. |
614-6016
|
[1] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| 31. |
276713A1
|
[1] |
GUARD
|
CAS
|
| 32. |
614-10025
|
[4] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 11106231
|
| 33. |
282131A1
|
[1] |
SPECIAL WASHER
|
CAS
|
| 34. |
255746A1
|
[1] |
DECAL
|
CAS
See Figure: 2-90
|
| 37. |
313094A1
|
[1] |
BRACKET
|
CAS
#8630(1), 8650(2) See Figure: 2-12
|
