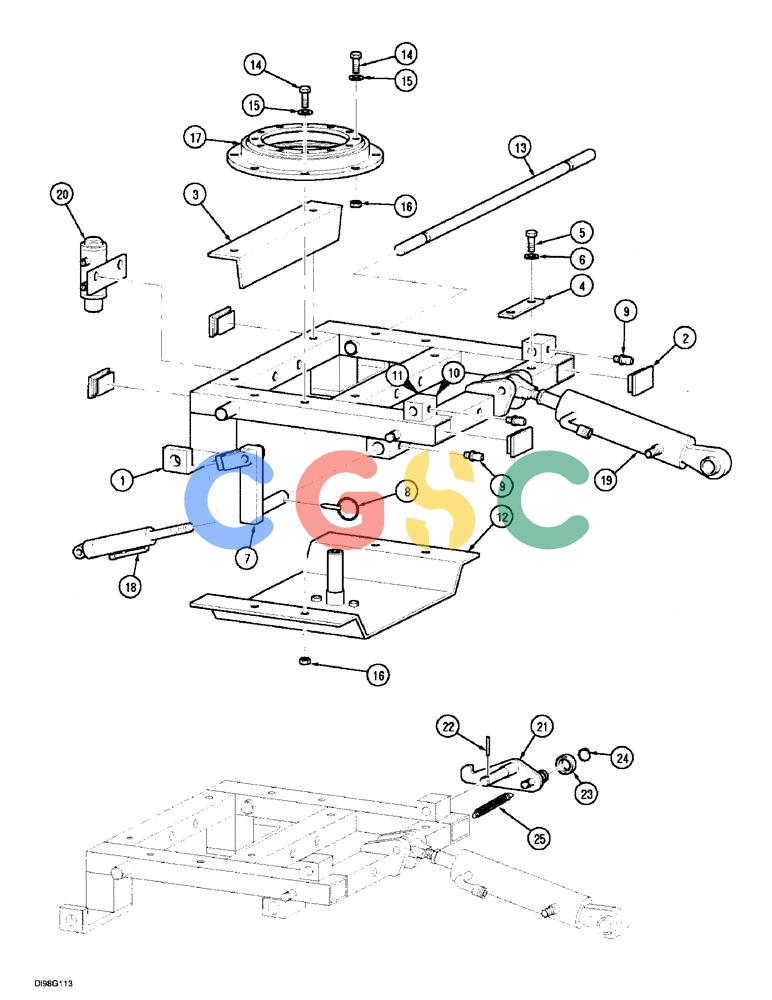

| 1. |
276560A2
|
[1] |
FRAME
|
CAS
ASSY.
|
| 2. |
276561A1
|
[4] |
PLUG
|
CAS
60 x 60 mm
|
| 3. |
276571A1
|
[1] |
GUARD
|
CAS
#8640, 8650
|
| 4. |
276562A1
|
[1] |
PLATE
|
CAS
|
| 5. |
614-10025
|
[2] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 11106231
|
| 7. |
276565A1
|
[1] |
PIVOT ASSY.
|
CAS
right cable control #8640, 8650 electronic control #8630, 8640, 8650
|
| 7. |
276564A1
|
[1] |
PIVOT ASSY.
|
CAS
left cable control #8640, 8650 electronic control #8630, 8640, 8650
|
| 8. |
A30338
|
[2] |
PIN
|
CAS
linch, 1/4 in cable control #8640, 8650 electronic control #8630, 8640, 8650 Superseded by part number: 270184
|
| 9. |
219-14
|
[1] |
LUBE NIPPLE,1/4" NPTF
|
CAS
|
| 10. |
REF
|
[1] |
INSTRUCTION
|
NH
DECAL lubrication, See Figure: 2-92
|
| 12. |
276717A1
|
[1] |
PLATE
|
CAS
bottom
|
| 13. |
276947A1
|
[1] |
SHAFT
|
CAS
#8630
|
| 13. |
291343A1
|
[1] |
SHAFT
|
CAS
#8640, 8650
|
| 14. |
814-16100
|
[16] |
BOLT,Hex, M16 x 2 x 100mm, Cl 8.8
|
CAS
Superseded by part number: 374889
|
| 15. |
895-11016
|
[16] |
WASHER,17.5mm ID x 30mm OD x 3mm Thk
|
CAS
Superseded by part number: 80299
|
| 16. |
832-10416
|
[16] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 412066
|
| 17. |
276718A1
|
[1] |
RING
|
CAS
slewing
|
| 18. |
276566A1
|
[2] |
CYLINDER
|
CAS
position cable control #8640, 8650 electronic control #8630, 8640, 8650 See Figure: 2-28
|
| 19. |
276888A1
|
[1] |
CYLINDER
|
CAS
tilt, See Figure: 2-28
|
| 20. |
313095A1
|
[1] |
CYLINDER
|
CAS
top frame, See Figure: 2-12
|
| 21. |
276952A1
|
[1] |
LATCH
|
CAS
ASSY., left
|
| 21. |
276951A1
|
[1] |
LATCH
|
CAS
ASSY., right
|
| 22. |
838-5440
|
[2] |
LOCK PIN,M4 x 40, Slotted
|
CAS
roll, 4 x 40 mm Superseded by part number: 14164774
|
| 23. |
3164946R91
|
[2] |
BALL BEARING
|
IH
ball Superseded by part number: 86629499
|
| 24. |
800-1120
|
[2] |
SNAP RING,M20, Ext
|
CAS
Retaining Superseded by part number: 370024
|
| 25. |
276953A1
|
[2] |
SPRING
|
CAS
|
| 6. |
895-11010
|
[2] |
WASHER,11mm ID x 20mm OD x 2mm Thk
|
CAS
11 x 21 x 2 mm Superseded by part number: 14496621
|
