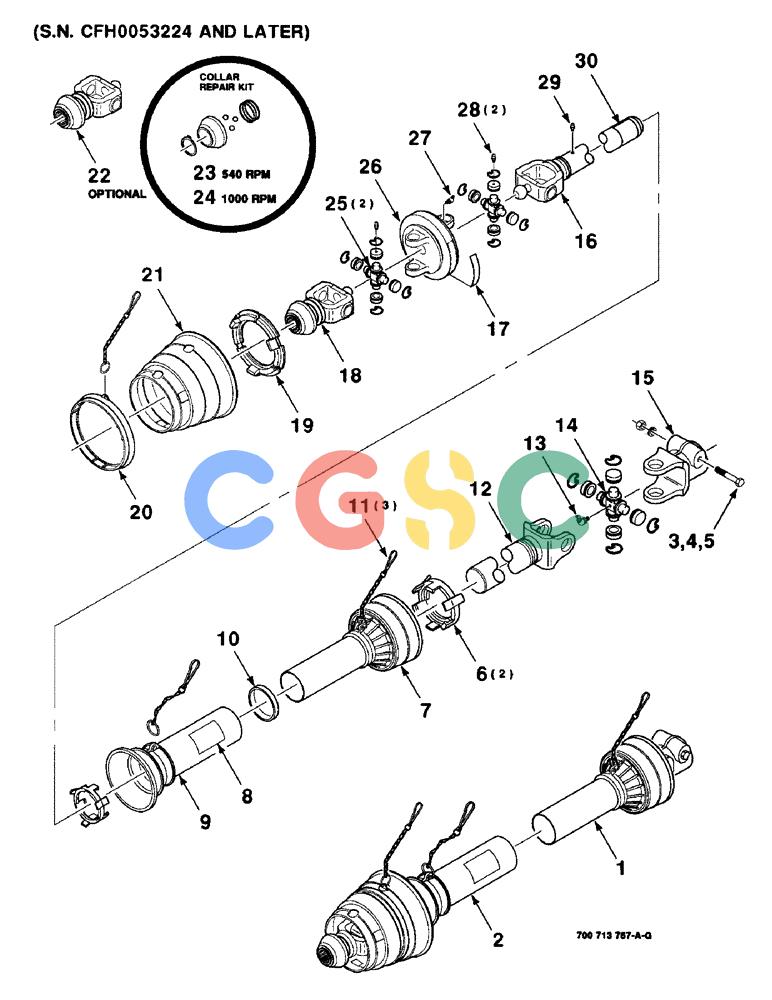

凯斯零件查询(8480) - CASE IH FIXED CHAMBER ROUND BALER (1/90-12/00) (2-06) - IMPLEMENT DRIVELINE ASSEMBLY, 540 AND 1000 RPM, NEAPCO, SERIAL NUMBER CFH0053224 AND LATER Case Agriculture

作者：广数供应链运营团队

浏览数：

时间：2025-01-21 17:34:50

Parts Contact me WhatsApp

Pos.	Part No	Qty	Parts name	Comments
1.	700713794	[1]	PTO	CAS IMPLEMENT - half Superseded by part number: 87588653
2.	700713789	[1]	JOINT	CAS TRACTOR - half (540 rpm)
. .	700713790	[1]	SHAFT	IH TRACTOR - half (1000 rpm) Superseded by part number: 87588653
3.	413-848	[1]	BOLT,Hex, 1/2" - 13 x 3", Gr 5	IH 1/2-13 X 3 C Superseded by part number: 72187218, 87339
4.	80679	[1]	LOCK WASHER,1/20.507 CST ZND	NH WASHER, LOCK, 1/2"
5.	425-108	[1]	NUT,1/2" - 13, Gr 5	CAS NUT, 1/2"-13, G5 Superseded by part number: 280431
6.	700713781	[2]	GUARD	IH BEARING - shield Superseded by part number: 87048274
7.	700713793	[1]	SHIELD	CAS - inner
8.	80672C1	[1]	DECAL	IH - danger Superseded by part number: 849471
9.	700713787	[1]	SHIELD	CAS - outer Superseded by part number: 700714728
10.	700709718	[1]	NYLON BEARING	CAS BEARING - nylon Superseded by part number: 87048275
11.	700714256	[3]	CHAIN (AG)	CAS CHAIN
12.	700713791	[1]	YOKE	CAS TUBE, & SLEEVE
13.	219-40	[1]	LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF	CAS 1/8-27 X 65 DEGREE ZERK Superseded by part number: 80711
14.	845198	[1]	KIT	CAS CROSS & BEARING KIT Superseded by part number: 84355326
15.	8802910	[1]	CLAMP	CAS YOKE - clamp
16.	700713786	[1]	YOKE	CAS & SHAFT
17.	700714285	[1]	DECAL	CAS - danger
18.	700713772	[1]	COLLAR	CAS - slide q.d. (540 rpm)
. .	700713788	[1]	YOKE	HFI COLLAR - slide q.d. (1000 rpm)
19.	700713775	[1]	COLLAR	IH BEARING - CV
20.	700713774	[1]	RING, SNAP	IH RING - outer cv
21.	700713778	[1]	CONE	IH - cv Superseded by part number: 700717237
22.	700714128	[1]	BODY	L 1 3/4-20 SPLINE COLLAR - slide q.d.
23.	700714002	[1]	PACKAGE	IH SLIDE COLLAR KIT
24.	700714200	[1]	KIT	CAS SLIDE COLLAR KIT
25.	700713773	[2]	KIT	L CROSS & BEARING KIT
26.	700713777	[1]	HOUSING	CAS ASSEMBLY - cv
27.	219-90	[1]	LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF	CAS 1/4-28 X 45 DEGREE ZERK Superseded by part number: 87569
28.	219-8	[2]	LUBE NIPPLE,1/4" - 28 NPTF	CAS NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
29.	700713833	[1]	LUBE NIPPLE,3/16" x 25/64", drivetech	CAS NIPPLE, LUBE, 3/16" x 25/64", drivetech
30.	700708583	[1]	DECAL	CAS - danger Superseded by part number: 849472
