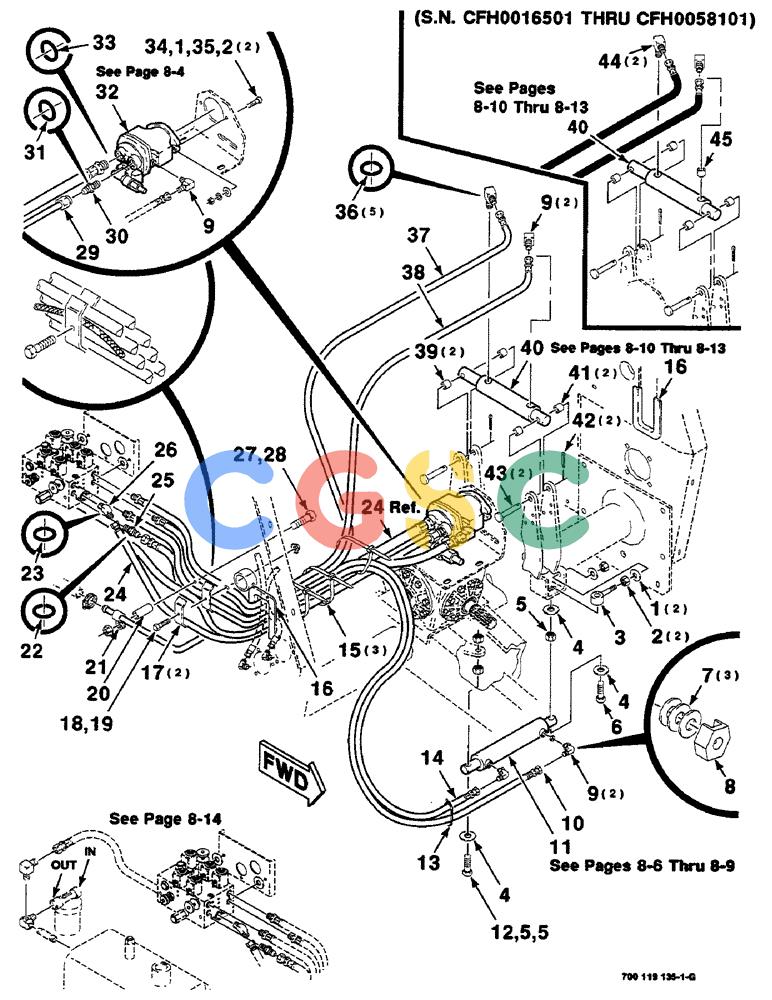

Pos.	Part No	Qty	Parts name	Comments
1.	496-11041	[4]	WASHER,13/32" x 13/16" x .065", HDN	CAS 3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
2.	425-106	[4]	NUT,3/8"-16, Cl 5	CAS Superseded by part number: 9628503
3.	700116206	[1]	SPECIAL BOLT	IH DRAWBOLT
4.	396-21066	[3]	WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk	CAS - 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
5.	425-1010	[3]	NUT,5/8"-11, G5	CAS . 5/8"-11, G5 Superseded by part number: 280374
6.	700711989	[1]	BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8	CAS 5/8-11 X 4-1/2 C, special
7.	700118716	[3]	WASHER	CAS - special
8.	H757815	[1]	PORT	CAS ORIFICE - .038
9.	218-5105	[5]	ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB	CAS - 90 degrees (Includes item 36) Superseded by part number: 76344, 72186128
10.	700710983	[1]	HYDRAULIC HOSE,6.35 mm ID x 2475.00 mm, SAE 100R1	CAS 6.35 mm ID x 2475.00 mm, SAE 100R1
11.	700709416	[1]	CYLINDER	CAS ASSEMBLY - hydraulic, threader (S.N. CFH0016501 thru CFH0058101) Superseded by part number: 700712122
. .	700712122	[1]	CYLINDER	CAS ASSEMBLY - hydraulic, threader (S.N. CFH0058102 and later)
12.	413-1044	[1]	BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5	CAS Superseded by part number: 88693
13.	L18337	[1]	CABLE TIE,9.95"-12.1" lg	CAS STRAP - tie, 15 inch, nylon Superseded by part number: 529070
14.	700707389	[1]	HYDRAULIC HOSE,6.35 mm ID x 2275.00 mm, SAE 100R1	CAS 6.35 mm ID x 2275.00 mm, SAE 100R1
15.	7021728	[3]	STRAP	CAS TIE - cable Superseded by part number: 529070, 529070, NLS
16.	700117735	[2]	ADHESIVE STRIP	CAS TRIM
17.	700116123	[2]	CLAMP	HFI
18.	413-532	[1]	BOLT,Hex, 5/16" - 18 x 2", Gr 5	CAS Superseded by part number: 9636711
19.	232-5315	[1]	FLANGE NUT,Flg, 5/16"-18	CAS NUT, Flg, 5/16"-18
20.	6501076	[1]	SPACER	HFI
21.	515-23254	[1]	CLAMP,1", Insul, 3/8" Bolt	CAS Line 1", Insul, 3/8" Bolt Superseded by part number: 9827902, 72187281
22.	237-6008	[1]	O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro	CAS 8-1, 90 Duro, .644" ID x .087" Thk Superseded by part number: 128825
23.	237-6004	[1]	O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro	CAS 4-1, 90 Duro, .351" ID x .072" Thk Superseded by part number: 165202, 72186131
24.	700709241	[1]	HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm, SAE 100R1	CAS 12.70 mm ID x 1400.00 mm, SAE 100R1
25.	218-5053	[1]	HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB	CAS CONNECTOR, HYD, (Incl. item 22) 7/16"-20, 37º x 7/16"-20, O-Ring Superseded by part number: 265235
26.	218-5136	[1]	ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB	CAS (Incl. item 23) 45º, 3/4"-16, 37º x 3/4"-16, O-Ring Superseded by part number: 72186187, 216797
27.	413-648	[1]	BOLT,Hex, 3/8" - 16 x 3", Gr 5	CAS Superseded by part number: 280161
28.	231-5146	[1]	FLANGE NUT,3/8"-16	CAS Superseded by part number: 72187068, 247780
29.	700708999	[1]	TUBE,25.4 mm OD, 783, 400 mm Length	CAS LINE - hydraulic
30.	218-5047	[1]	HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-3/16" - 12 Male ORB	CAS CONNECTOR - flared (Includes item 31) Superseded by part number: 9615397
31.	237-6014	[1]	O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro	CAS 14-1, 90 Duro, 1.048" ID x .116" Thk Superseded by part number: 70921886
32.	700708580	[1]	PUMP	CAS - piston
33.	738484	[1]	O-RING	IH Superseded by part number: 167266
34.	413-624	[2]	BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5	CAS Superseded by part number: 72187209, 88044
35.	492-11038	[2]	LOCK WASHER,3/8"	CAS Superseded by part number: 80680, 72187249
36.	738468	[5]	O-RING	IH
37.	700708944	[1]	HYDRAULIC HOSE,6.35 mm ID x 1875.00 mm, SAE 100R1	CAS 6.35 mm ID x 1875.00 mm, SAE 100R1 Superseded by part number: 97478C1, 84384
38.	700707387	[1]	HYDRAULIC HOSE,6.35 mm ID x 1825.00 mm, SAE 100R1	CAS 6.35 mm ID x 1825.00 mm, SAE 100R1
39.	320993R1	[2]	SPACER,7/8" Tube x 1/2"	IH
40.	7075625	[1]	CYLINDER	L ASSEMBLY - hydraulic, clutch (S.N. CFH0016501 thru CFH0058101) Superseded by part number: 700726495
. .	700711910	[1]	CYLINDER ASSY.	IH CYLINDER ASSEMBLY - hydraulic, clutch (S.N. CFH0058102 and later)
41.	254409	[2]	SPACER	HFI
42.	432-1020	[2]	COTTER PIN,5/32" x 1 1/4"	CAS PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
43.	863498	[2]	CLEVIS PIN	CAS 5/8 X 3-1/2 CLEVIS PIN
44.	218-483	[2]	ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF	CAS - 90 degrees Superseded by part number: 578384
45.	700119118	[1]	SPACER	HFI
