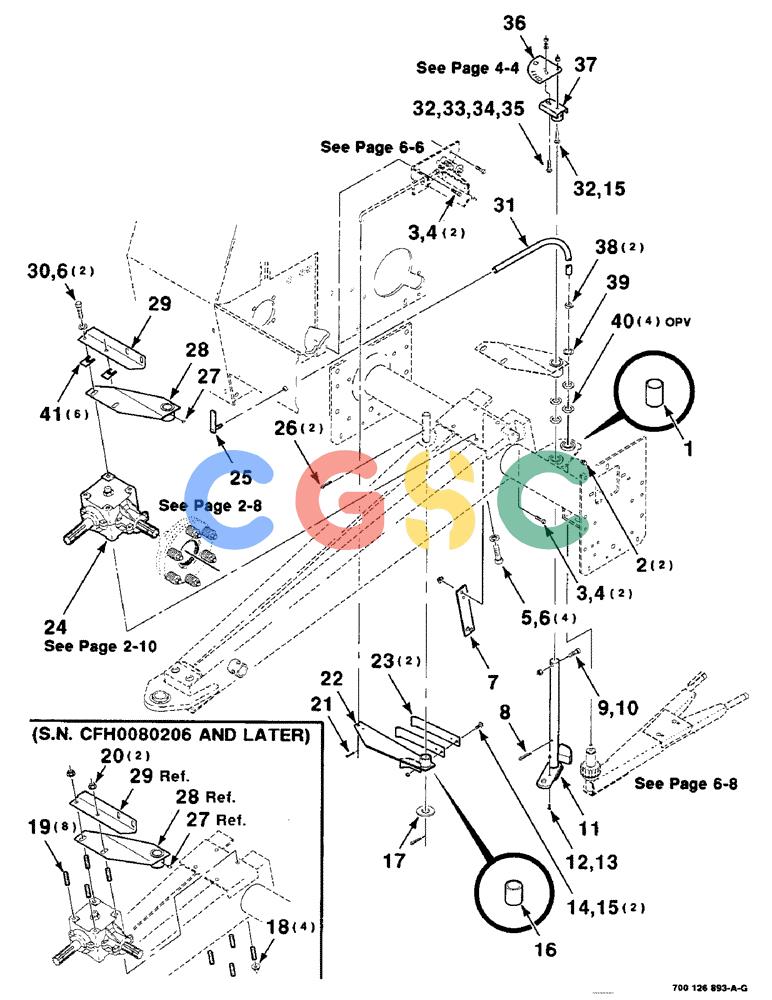

| 1. |
740514
|
[1] |
BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L
|
L
- oilite
|
| 2. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 3. |
413-616
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 4. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 5. |
413-820
|
[4] |
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187215, 87670
|
| 6. |
80679
|
[6] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 7. |
700119936
|
[1] |
GUIDE
|
HFI
PLATE
|
| 8. |
432-1628
|
[1] |
COTTER PIN,1/4" x 1 3/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 3/4" Superseded by part number: 87041
|
| 9. |
61-33828
|
[1] |
HEX SOC SCREW,3/8"-16 x 1 3/4"
|
CAS
3/8-16 X 1-3/4 HSHCS, special Superseded by part number: 86511683
|
| 10. |
231-4116
|
[1] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
| 11. |
700126917
|
[1] |
SHAFT
|
CAS
ASSEMBLY (Includes items 12 and 13)
|
| 12. |
413-520
|
[1] |
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
|
CAS
5/16-18 X 1-1/4 C Superseded by part number: 87657
|
| 13. |
230-4115
|
[1] |
LOCK NUT,5/16"-18, GA
|
CAS
5/16-18 HTLN GR/B Superseded by part number: 230-4145
|
| 14. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 15. |
231-5145
|
[3] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 16. |
740217
|
[1] |
BUSHING
|
CAS
|
| 17. |
495-81070
|
[1] |
WASHER,1 1/32" x 1 1/2" x .120"
|
CAS
1 X 10 GAUGE NRMB Superseded by part number: 86624170
|
| 18. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 19. |
700712789
|
[8] |
STUD
|
CAS
|
| 20. |
231-5148
|
[2] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 21. |
432-1012
|
[1] |
COTTER PIN,5/32" x 3/4"
|
CAS
5/32" x 3/4"
|
| 22. |
700122971
|
[1] |
LEVER
|
HFI
ASSEMBLY (Includes item 16)
|
| 23. |
700710074
|
[2] |
LARGE PLATE
|
IH
SPRING - leaf
|
| 24. |
700710131
|
[1] |
TRANSFER BOX
|
IH
GEARBOX ASSEMBLY Superseded by part number: 700725114
|
| 25. |
700107974
|
[1] |
INDICATOR
|
HFI
WA
|
| 26. |
432-1228
|
[2] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
3/16" x 1 3/4" Superseded by part number: 87399
|
| 27. |
219-93
|
[1] |
LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF
|
CAS
Superseded by part number: 87415
|
| 28. |
700126773
|
[1] |
SUPPORT
|
HFI
WA
|
| 29. |
700126769
|
[1] |
BRACKET
|
CAS
SUPPORT
|
| 30. |
413-816
|
[2] |
BOLT,Hex, 1/2" - 13 x 1", Gr 5
|
CAS
Superseded by part number: 87909, BN50282
|
| 31. |
700707201
|
[1] |
HOSE
|
CAS
|
| 32. |
433-512
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 33. |
496-21034
|
[1] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 34. |
492-11031
|
[1] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 35. |
425-105
|
[1] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 36. |
700127954
|
[1] |
DISC
|
CAS
- switching
|
| 37. |
700125056
|
[1] |
DISC
|
CAS
PLATE WA
|
| 38. |
214-1406
|
[2] |
HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm
|
CAS
CLAMP, HOSE, #06, .44/.78 Type F Worm Superseded by part number: 244358
|
| 39. |
103-11125
|
[1] |
SNAP RING,#125, Ext
|
CAS
Ring, Snap, #125, Ext
|
| 40. |
495-81205
|
[4] |
WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk
|
CAS
1-1/4 X 14 GAUGE NRMB
|
| 41. |
700115420
|
[6] |
SHIM
|
CAS
|
