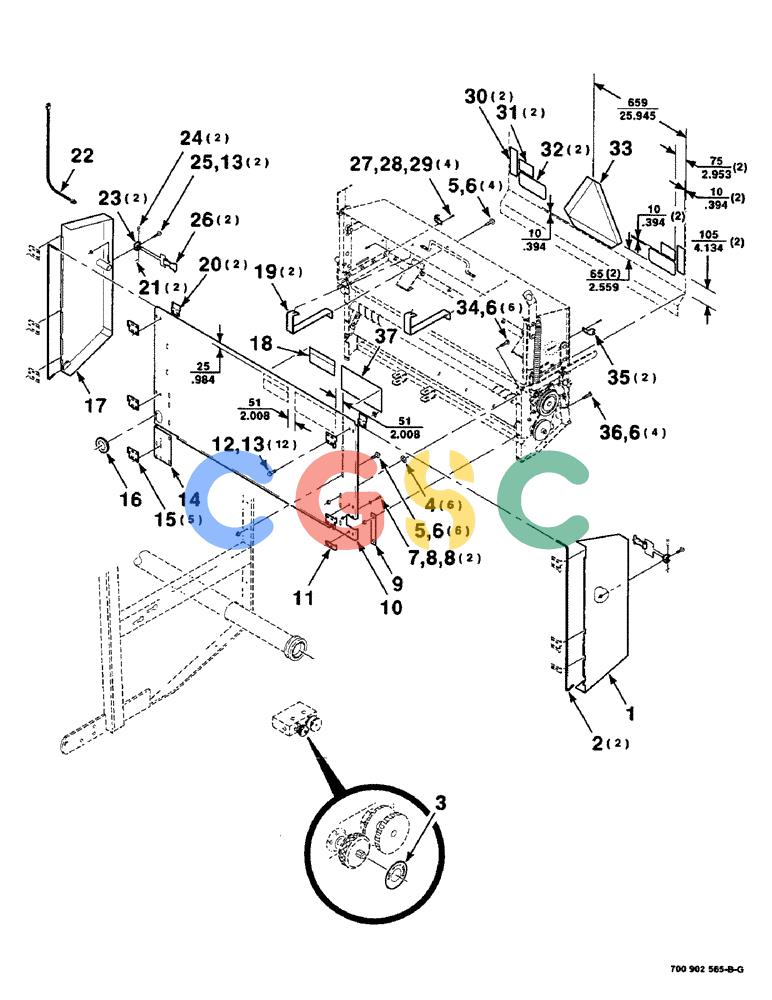

| 1. |
700124566
|
[1] |
SHIELD
|
HFI
WA - left
|
| 2. |
700711948
|
[2] |
SPRING
|
CAS
- torsion
|
| 3. |
700711189
|
[1] |
DECAL
|
CAS
- net - twine
|
| 4. |
700711334
|
[6] |
FASTENER
|
CAS
- push on
|
| 5. |
409-7612
|
[10] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 6. |
231-5146
|
[20] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 7. |
413-432
|
[2] |
BOLT,Hex, 1/4" - 20 x 2", Gr 5
|
IH
Superseded by part number: 72187193, 87404
|
| 8. |
231-5144
|
[4] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
| 9. |
700125893
|
[1] |
PLATE
|
HFI
|
| 10. |
700125868
|
[1] |
SHIELD
|
HFI
Superseded by part number: 700131988
|
| 11. |
700130846
|
[1] |
HINGE
|
HFI
|
| 12. |
256873
|
[12] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 13. |
231-5145
|
[14] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 14. |
700125719
|
[1] |
SHIELD
|
HFI
|
| 15. |
700124551
|
[5] |
HINGE
|
CAS
- support
|
| 16. |
727248
|
[1] |
GROMMET
|
CAS
- rubber
|
| 17. |
700124567
|
[1] |
SHIELD
|
CAS
WA - right
|
| 18. |
700711130
|
[1] |
DECAL
|
CAS
- notice
|
| 19. |
700125844
|
[2] |
SLEEVE
|
CAS
SUPPORT Superseded by part number: 700136023
|
| 20. |
700124553
|
[2] |
PLATE
|
HFI
HOLDDOWN
|
| 21. |
432-68
|
[2] |
COTTER PIN,3/32" x 1/2"
|
CAS
PIN, SPLIT (COTTER), 3/32" x 1/2" Superseded by part number: 88788
|
| 22. |
700711083
|
[1] |
HARNESS
|
CAS
- wire
|
| 23. |
776674
|
[2] |
SUPPORT
|
L
ANCHOR
|
| 24. |
141-13
|
[2] |
CLEVIS PIN,1/4" x 1.594"
|
CAS
1/4 X 1-1/2 CLEVIS PIN
|
| 25. |
121-115
|
[2] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 26. |
494307C1
|
[2] |
LATCH
|
IH
HOOK - rubber Superseded by part number: 86975220
|
| 27. |
440-1106
|
[4] |
SCREW,Cross Pan Hd, #10-24 x 3/8"
|
CAS
Superseded by part number: 72181877
|
| 28. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 29. |
225-14110
|
[4] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 30. |
878660
|
[2] |
REFLECTOR
|
IH
- red
|
| 31. |
700711322
|
[2] |
DECAL
|
CAS
- caution
|
| 32. |
700706191
|
[2] |
DECAL
|
CAS
- warning, injury
|
| 33. |
311858A1
|
[1] |
DECAL
|
CAS
SMV EMBLEM Superseded by part number: 86547711
|
| 34. |
433-620
|
[6] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 35. |
7025075
|
[2] |
BRACKET
|
CAS
|
| 36. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 37. |
700711129
|
[1] |
DECAL
|
CAS
- operational
|
