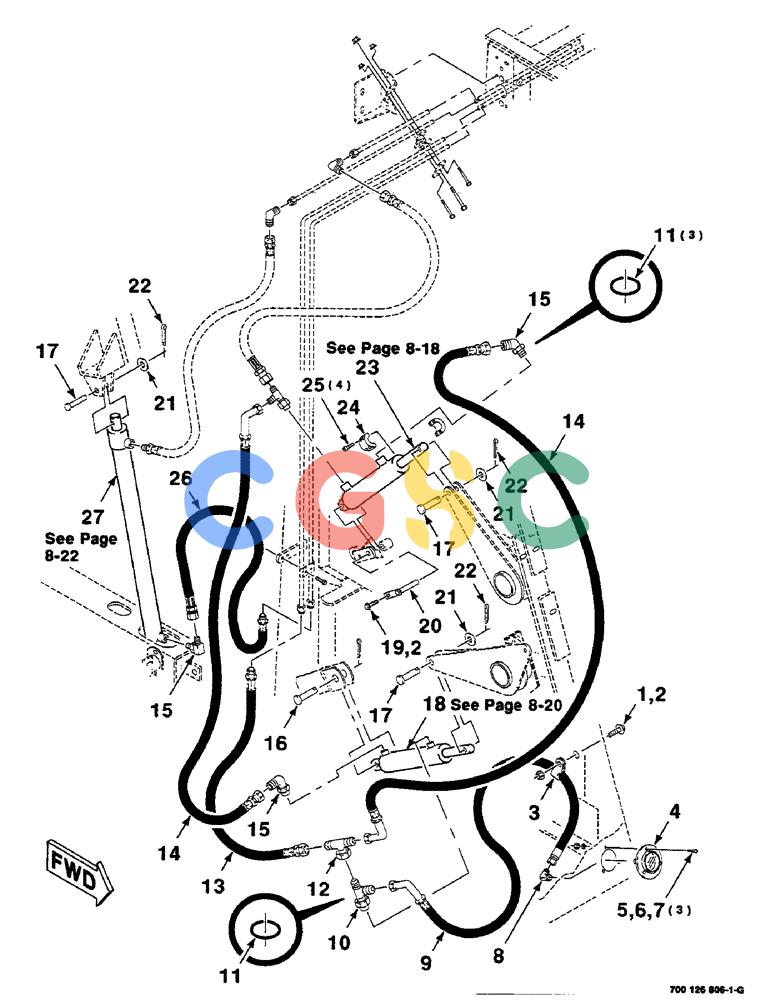

| 1. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 x 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 2. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 3. |
515-25127
|
[1] |
CLAMP,1/2", Insul, 1/2" Bolt
|
CAS
Line 1/2", Insul, 1/2" Bolt Superseded by part number: 86632595
|
| 4. |
700711782
|
[1] |
GAUGE
|
CAS
- pressure Superseded by part number: 700722353
|
| 5. |
440-1068
|
[3] |
SCREW,Cross Pan Hd, #6-32 x 1/2"
|
CAS
#6-32 x 1/2 CRPHMS GR2 Superseded by part number: 281007
|
| 6. |
492-11006
|
[3] |
LOCK WASHER,#6
|
CAS
Washer, Lock, #6 Superseded by part number: 87276
|
| 7. |
225-14106
|
[3] |
NUT,#6-32
|
CAS
Superseded by part number: 88458, 87779111
|
| 8. |
218-513
|
[1] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF
|
CAS
- 90 degrees Superseded by part number: 9402903
|
| 9. |
60233C1
|
[1] |
HOSE
|
IH
- hydraulic
|
| 10. |
218-5243
|
[1] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes item 11) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 11. |
738468
|
[4] |
O-RING
|
IH
|
| 12. |
218-836
|
[1] |
TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br
|
CAS
- swivel branch Superseded by part number: 86513014
|
| 13. |
7795388
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 14. |
700707286
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 15. |
218-5105
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
- 90 degrees (Includes item 11) Superseded by part number: 76344, 72186128
|
| 16. |
62653
|
[1] |
CLEVIS PIN
|
IH
5/8 x 3 CLEVIS PIN Superseded by part number: 87034825
|
| 17. |
700708068
|
[3] |
CLEVIS PIN,15.77mm OD x 68.66mm L
|
IH
5/8 x 2-1/2 CLEVIS PIN
|
| 18. |
700712160
|
[1] |
CYLINDER ASSY.
|
IH
CYLINDER ASSEMBLY - hydraulic
|
| 19. |
121-226
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 20. |
700118823
|
[1] |
PIN
|
IH
WA
|
| 21. |
396-21066
|
[3] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 22. |
432-1016
|
[3] |
COTTER PIN,5/32" x 1"
|
CAS
5/32" x 1" Superseded by part number: 83903970
|
| 23. |
700712161
|
[1] |
CYLINDER ASSY.,Double Acting, 38.1mm Rod, 304.8mm Stroke
|
IH
CYLINDER ASSEMBLY - hydraulic
|
| 24. |
700120671
|
[1] |
CLAMP
|
IH
COLLAR
|
| 25. |
461-33116
|
[4] |
HEX SOC SCREW,5/16"-18 x 1"
|
CAS
5/16-18 x 1 HSHCS SPL Superseded by part number: 87020811
|
| 26. |
700708712
|
[1] |
HYDRAULIC HOSE,9.65 mm ID x 560.00 mm, SAE 100R2
|
CAS
9.65 mm ID x 560.00 mm, SAE 100R2
|
| 27. |
700712159
|
[1] |
CYLINDER ASSY.
|
IH
CYLINDER ASSEMBLY - hydraulic
|
