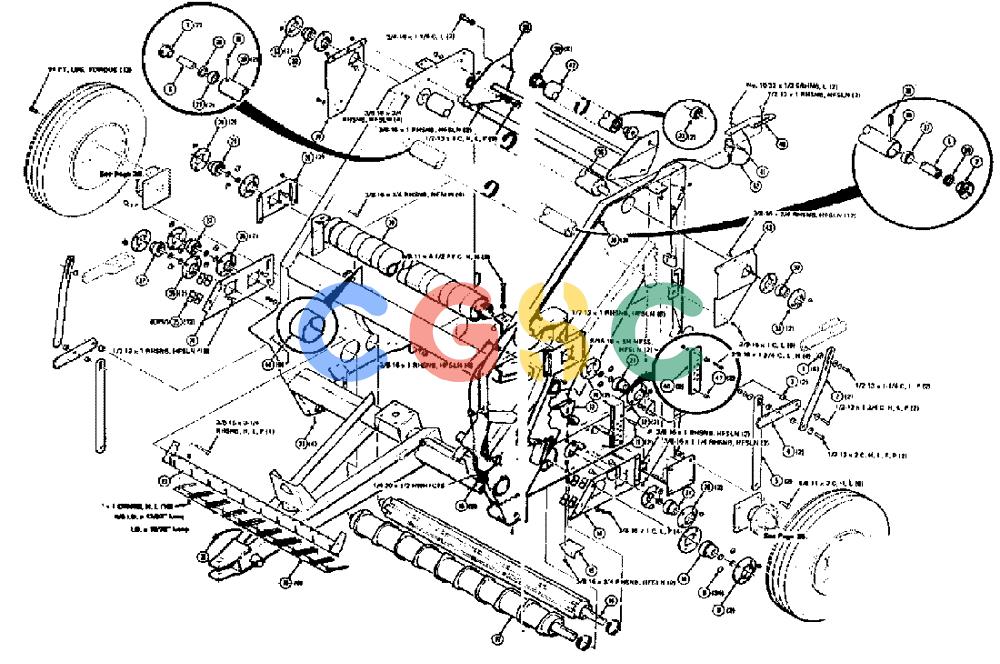

凯斯零件查询(8440) - CASE IH ROUND BALER (1/88-12/90) (14[1]) - MAIN FRAME ASSEMBLY Case Agriculture

作者：广数供应链运营团队
浏览数：
时间：2025-01-21 15:26:12
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
1. 6287155 [6]   SPACER   HFI 5/8 I.D. x 13/32" long
2. 6546493 [2]   STRAP   HFI
3. 6472351 [2]   BUSHING   HFI 5/8 I.D. x 19/32" long
4. 6546949 [2]   STRAP   HFI - gauge
5. 1661308 [2]   STRAP   HFI - lift
6. 6549117 [2]   SHAFT   HFI - roller
7. 6549125 [4]   WASHER   HFI HUB - roller
8. 714360 [2]   FLANGED BEARING   IH FLANGE - bearing
9. 7852213 [24]   SHIM   HFI
10. 712158 [1]   SPHERICAL BEARING,2" ID x 100 mm OD   L BEARING - spherical Superseded by part number: 47577203
11. 763789 [2]   CLEVIS PIN   HFI 1/2 x 1-3/4 CLEVIS PIN Superseded by part number: 27-8209
12. S120261 [2]   PIN   CAS .149 x 2-3/4 HAIR PIN COTTER
13. 6549877 [1]   SUPPORT   HFI - idler
14. 6548622 [1]   MOUNTING PARTS   HFI MOUNT - bearing, left
15. 6548713 [1]   BRACKET   HFI STOP - idler, bracket
16. 6548226 [1]   ROLLER   HFI rear, lengthwise pieces attached
17. 6548317 [1]   ROLLER   HFI front, banded
18. 751628 [3]   CLAMP   CAS Superseded by part number: 675162
19. 6565980 [9]   GUIDE   HFI - belt
20. 52712 [4]   BUSHING   CAS 1-1/2 x 18 GAUGE MACHINERY BUSHING
21. 1712439 [1]   HARNESS   HFI - wiring, 187' long
22. 6565964 [1]   SCRAPER   HFI BRACKET - scraper
23. 219-8 [4]   LUBE NIPPLE,1/4" - 28 NPTF   CAS NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
24. 6548655 [1]   MOUNTING PARTS   HFI MOUNT - bearing, right
25. 6546402 [12]   SHIM   HFI
26. 50575 [10]   FLANGE   NNA - bearing Superseded by part number: 663562R1
27. 50468 [5]   SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 22, 43.66 mm   IH - spherical
28. 6548689 [2]   MOUNTING PARTS   HFI MOUNT - bearing
29. 700100017 [1]   ROLLER ASSY.   HFI ROLLER - assembly
30. 6548994 [2]   ROLLER   HFI
31. 6565949 [1]   MOUNTING PARTS   HFI MOUNT - bearing, right
32. 700708091 [2]   SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm   CAS BEARING spherical, see 571588R92 bearing and 517645R11 collar Superseded by part number: 47577188, 47066
33. 51417 [4]   PIPE   IH - bearing Superseded by part number: 617863R1, 617863R1, NLS
34. 700100922 [1]   MOUNTING PARTS   HFI MOUNTING - upper roller
35. 6548036 [1]   ROLLER   HFI
36. 63198 [4]   LOCK PIN,5/16" x 2 1/2", Slotted   HFI Pin, 5/16" x 2 1/2", Slotted Superseded by part number: 87948
37. 8050825 [4]   BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm   L - spherical (without collar) Superseded by part number: F82059
38. 722496 [3]   CLIP   HFI - wiring
39. 700100927 [2]   HUB   L - bearing
40. 1661323 [1]   MOUNTING PARTS   HFI MOUNT - switch
41. 1711936 [1]   SWITCH   HFI bale full, see Figure 25 for alarm that activates it.
42. 1712413 [1]   ELECTRICAL WIRE   HFI WIRE - electrical, orange, 14 gauge, 4-3/4" long
43. 6565931 [1]   MOUNTING PARTS   HFI MOUNT - bearing - left
44. 7827728 [9]   BELT,101.60 mm W x 505.00 mm L   HFI Lapping 101.60 mm W x 505.00 mm L
45. 6864607 [1]   ROLLER   CAS Superseded by part number: 700124615
46. 6547467 [2]   STRAP   HFI
47. 296913 [4]   SPACER   HFI
. . 873877 [2]   BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5   CAS 3/4-10 x 1-1/4 HEX CAP SCREW GRADE 5
. . 70714 [18]   SCREW   CAS 3/8-16 x 1 CROSS RECESS HEAD MACHINE SCREW
. . 7770498 [4]   CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/4", Gr 5   CAS 3/8-16 x 3-1/4 ROUND HEAD SQUARE NECK BOLT GRADE 5 Superseded by part number: 27454R1
. . 7700131 [26]   SHROUD,Sq Nk, 1/2" - 13 x 1", Gr 5   CAS 1/2-13 x 1 ROUND HEAD SQUARE NECK BOLT GRADE 5 Superseded by part number: 433-816, 433-816, NLS
. . 703132 [2]   SERRATED SCREW   CAS 5/16-18 x 3/4 HEX FLANGE SERRATED SCREW Superseded by part number: 145913
. . 701607 [1]   BRACKET   CAS 1/4-20 x 1/2 HEX WASHER HEAD THREAD CUTTING TAPPING SCREW Superseded by part number: 281-1478, 281-1478, NLS
. . 706382 [2]   SCREW   CAS NO. 10-32 x 1/2 SLOTTED ROUND HEAD MACHINE SCREW
. . 703249 [10]   BOLT,Hex, 3/8" - 16 x 1", Gr 5   CAS 3/8-16 x 1 hex cap screw grade 5 Superseded by part number: 88206
. . 703959 [2]   BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd   CAS 1/2-13 x 1 HEX CAP SCREW GRADE 5
. . 7701188 [2]   BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5   CAS 1/2-13 x 1-1/4 HEX CAP SCREW GRADE 5 Superseded by part number: 87670
. . 703983 [2]   BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5   CAS 1/2-13 x 1-3/4 HEX CAP SCREW GRADE 5
. . 7701675 [2]   BOLT,Hex, 1/2" - 13 x 2", Gr 5   CAS 1/2-13 x 2 HEX CAP SCREW GRADE 5 Superseded by part number: 9706716
. . 7701949 [8]   BOLT,Hex, 5/8" - 11 x 2", Gr 5   CAS 5/8-11 x 2 HEX CAP SCREW GRADE 5 Superseded by part number: 86505999
. . 873752 [2]   HARDWARE,Hex, 5/8" - 11 x 4 1/2", Gr 5, Full Thd   HFI 5/8-11 x 4-1/2 FULL THREAD HEX CAP SCREW GRADE 5
. . 7700065 [22]   CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5   CAS 3/8-16 x 3/4 ROUND HEAD SQUARE NECK BOLT GRADE 5 Superseded by part number: 280430
. . 700047 [8]   BOLT   CAS 3/8-16 x 1 ROUND HEAD SQUARE NECK BOLT GRADE 5 Superseded by part number: 80280503
. . 700054 [2]   CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5   CAS 3/8-16 x 1-1/4 ROUND HEAD SQUARE NECK BOLT GRADE 5 Superseded by part number: 86508773
. . 68767 [4]   CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G5   CAS 3/8-16 x 1-3/4 HEX CAP SCREW GRADE 5 Superseded by part number: 86508775
