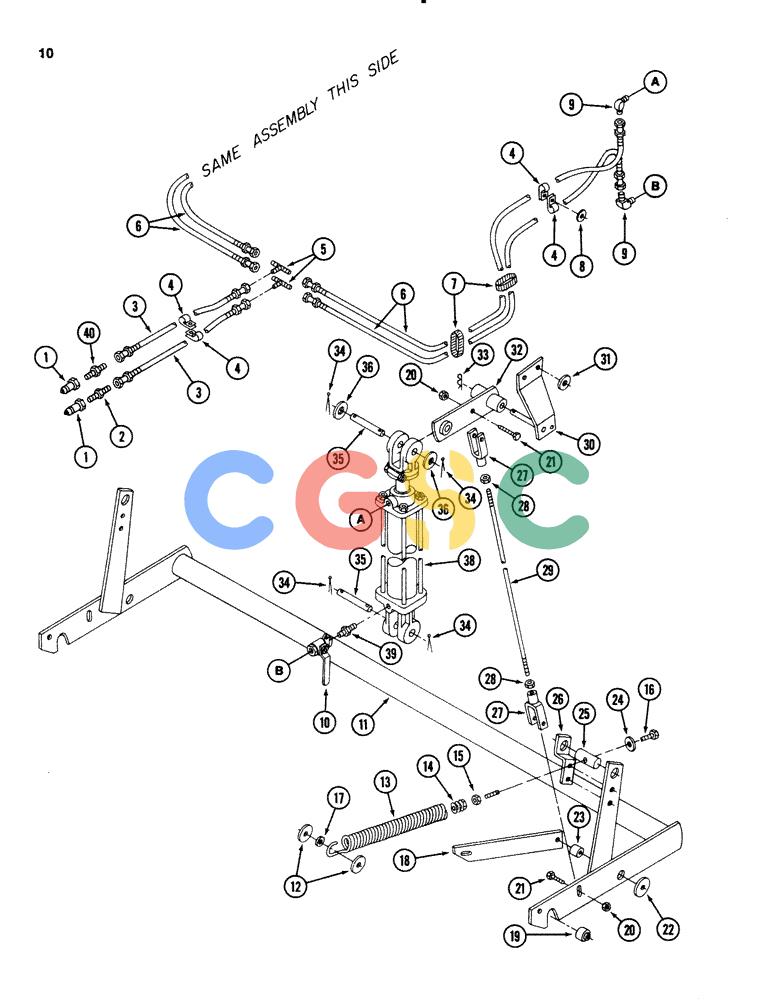

| 1. |
REF
|
[2] |
INSTRUCTION
|
NH
COUPLER - hydraulic (See Page 15)
|
| 2. |
ZA105685
|
[1] |
FITTING
|
IH
- restrictor (.052 inch orifice)(P.I.N. 001531 and after)
|
| 3. |
129768C1
|
[2] |
HYDRAULIC HOSE
|
IH
HOSE ASSEMBLY - 115 inch (2921 mm) long
|
| 4. |
27291R1
|
[16] |
CLAMP
|
IH
- hose Superseded by part number: 9827902
|
| 5. |
76355
|
[2] |
TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC
|
BHB
- 3/8 tube x 9/16 - 18 inch thread
|
| 6. |
1264172C2
|
[4] |
HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1
|
IH
HOSE ASSEMBLY - 105 inch (2667 mm) long (Replaces ZA105138)
|
| 7. |
ZA105118
|
[3] |
GUIDE
|
IH
- hose
|
| 8. |
611344R1
|
[8] |
WASHER
|
IH
- flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm) Superseded by part number: 495-61034
|
| . . |
9635884
|
[8] |
BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5
|
NH
- hex, 5/16 NC x 1 inch
|
| 9. |
333934R1
|
[4] |
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF
|
IH
- 90 degree, 3/8 NPTF Superseded by part number: 235131
|
| 10. |
ZA103758
|
[2] |
VALVE
|
IH
- rotary (Replaces ZA105143) (Also furnish nipple 443981)
|
| 11. |
ZA105081
|
[1] |
LATCH
|
IH
|
| . . |
180177
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
- hex, 1/2 NC x 1-1/2 inch Superseded by part number: 113-410
|
| 12. |
21883R1
|
[8] |
WASHER
|
IH
- flat, 17/32 x 1-3/4 x 3/32 inch (13 x 44 x 2 mm) Superseded by part number: 632076R1
|
| 13. |
ZA761370
|
[1] |
SPRING
|
IH
|
| 14. |
1281009C1
|
[2] |
INSERT
|
IH
PLUG - spring
|
| 15. |
120378
|
[2] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 16. |
Q822
|
[2] |
BOLT
|
IH
- hex, 1/2 NC x 5-1/2 inch Superseded by part number: 1980713C1
|
| 17. |
118777
|
[8] |
WASHER
|
IH
- flat, 17/32 x 1-1/16 x 3/32 inch (13 x 26 x 2 mm) Superseded by part number: 86624188
|
| 18. |
ZA105108
|
[2] |
BAR
|
IH
STIFFENER
|
| 19. |
96339C1
|
[2] |
CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"
|
IH
- cam follower (Replaces ZA015882)
|
| 20. |
9413967
|
[4] |
LOCK NUT,1/2"-13, GB
|
IH
NUT - hex lock, 1/2 inch NC Superseded by part number: 86992215
|
| 22. |
23276R1
|
[2] |
WASHER
|
IH
- flat, 21/32 x 2 x 3/16 inch (16 x 50 x 4 mm) Superseded by part number: 495-81030
|
| . . |
426-1040
|
[2] |
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
|
CAS
- hex, 5/8 NC x 2-1/2 inch Superseded by part number: 280233
|
| 23. |
1337296C1
|
[2] |
SPACER
|
CAS
- (Replaces 754598R1) Superseded by part number: 700120067
|
| 24. |
20601R1
|
[2] |
WASHER
|
IH
- flat, 17/32 x 1-1/4 x 1/8 inch (13 x 31 x 3 mm) Superseded by part number: 495-81287
|
| 25. |
ZA104551
|
[2] |
PIN
|
IH
|
| 26. |
ZA105060
|
[2] |
CLIP
|
IH
BRACKET - offset
|
| . . |
180124
|
[4] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
IH
- hex, 3/8 NC x 1-1/4 inch Superseded by part number: 88011
|
| 27. |
ZA250536
|
[4] |
YOKE
|
IH
Superseded by part number: 87312625
|
| 28. |
120371
|
[4] |
NUT,1/2"-20, G5
|
IH
Superseded by part number: 280963
|
| 29. |
ZA105132
|
[2] |
ROD
|
IH
- latch Superseded by part number: 700120078
|
| 30. |
ZA105126
|
[1] |
PIN
|
IH
- left Superseded by part number: 700120079
|
| 30. |
ZA105125
|
[1] |
PIN
|
IH
- right Superseded by part number: 700120082
|
| 31. |
614452R1
|
[4] |
WASHER
|
IH
- flat, 13/32 x 1-1/4 inch x 1/8 inch (10 x 31 x 3 mm) Superseded by part number: 86625257
|
| 32. |
ZA105122
|
[2] |
ARM
|
IH
|
| 33. |
407210R1
|
[2] |
CLIP
|
IH
PIN - klik (Package of 20)
|
| 34. |
32-1632
|
[8] |
COTTER PIN,1/4" x 2"
|
CAS
PIN, SPLIT (COTTER), 1/4" x 2" Superseded by part number: 88182
|
| 35. |
63196C1
|
[4] |
PIN
|
IH
- clevis Superseded by part number: 427-16400
|
| 36. |
591715R1
|
[8] |
WASHER
|
IH
- flat, 1-1/32 x 1-1/2 x 1/16 inch (26 x 38 x 1 mm) Superseded by part number: 86624169
|
| . . |
ZA207021
|
[1] |
BASE
|
CAS
Superseded by part number: 737734
|
| 38. |
ZA105000
|
[2] |
CYLINDER
|
CAS
- hydraulic (Replaces ZA105150) (See Page 13) Superseded by part number: 700709594
|
| 39. |
443981
|
[1] |
CONNECTOR, ELEC
|
IH
NIPPLE - auto pipe, 3/8 NPTF (Used with valve ZA103758 only) Superseded by part number: 217-1081
|
