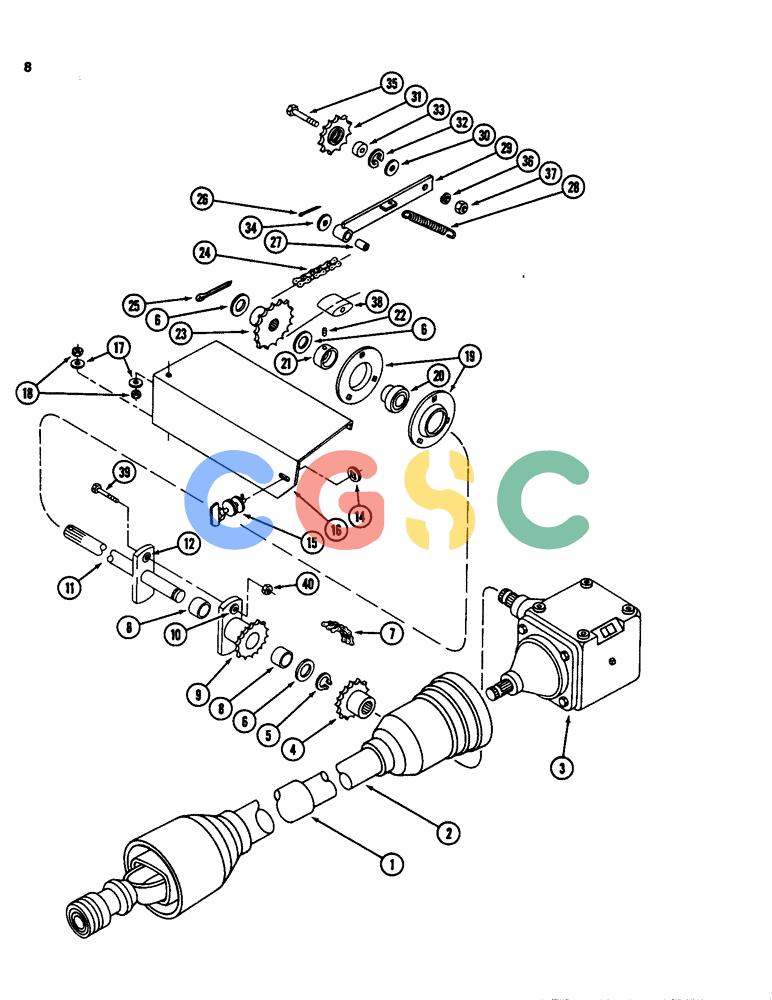

| 1. |
REF
|
[1] |
INSTRUCTION
|
NH
DRIVE SHAFT ASSEMBLY - constant velocity, tractor half, 540 rpm (Bondioli and Pavesi) (See Page 11)
|
| 4. |
ZA105085
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 16 tooth
|
| 5. |
1254030C1
|
[1] |
RING
|
IH
- retaining
|
| 6. |
22051R1
|
[1] |
WASHER
|
IH
- flat, 1-17/32 x 2-1/4 x 3/64 inch (39 x 57 x 1 mm) Superseded by part number: Q302
|
| 7. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN ASSEMBLY - coupling (Use 15 links from bulk chain 28363R1, and 1 connecting link 38361R1)
|
| . . |
28363R1
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3 m) roll Superseded by part number: 28363R1X
|
| . . |
28361R1
|
[1] |
LINK
|
IH
- chain, connecting Superseded by part number: 241-1326
|
| 8. |
96329C1
|
[2] |
BUSHING
|
IH
- 1-1/2 ID x 1 inch (38 x 25 mm)
|
| 9. |
ZA105088
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 16 tooth
|
| 10. |
ZA301074
|
[1] |
BUSHING
|
IH
- 9/32 ID x 5/8 inch OD (7 x 16 mm)
|
| 11. |
ZA105961
|
[1] |
SHAFT
|
CAS
ASSEMBLY - cross
|
| 14. |
ZA103937
|
[2] |
WASHER
|
IH
- retaining Superseded by part number: 1326407C1
|
| 15. |
ZA103138
|
[1] |
FASTENER
|
IH
- shield
|
| 16. |
ZA105960
|
[1] |
SHIELD
|
CAS
- cross shaft
|
| 17. |
106969R1
|
[2] |
WASHER
|
IH
- flat, 11/32 x 1-1/4 x 3/64 inch (9 x 32 x 1 mm) Superseded by part number: 495-81119
|
| 18. |
9412083
|
[2] |
NUT,5/16"-18, GB
|
IH
NUT - hex lock, 5/16 inch NC Superseded by part number: 9413994
|
| 19. |
619333R1
|
[2] |
FLANGED BEARING
|
IH
HOUSING - bearing
|
| 20. |
664597R91
|
[1] |
BALL BEARING,1.5005" ID x 90 mm OD x 1.625"
|
IH
- ball Superseded by part number: 47577202
|
| 21. |
664598R11
|
[1] |
COLLAR
|
IH
- locking
|
| 22. |
485-13816
|
[1] |
SET SCREW,Sq Hd, 3/8"-16 x 1"
|
CAS
SCREW - set, square head cup point, 3/8 NC x 1 inch Superseded by part number: 84983
|
| 23. |
ZA104591
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 16 tooth
|
| . . |
654437R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3 m) roll
|
| . . |
654438R91
|
[1] |
LINK
|
IH
- chain, connecting Superseded by part number: 241-1418
|
| . . |
654439R91
|
[1] |
LINK
|
IH
- chain, offset Superseded by part number: 241-1718
|
| 25. |
103411
|
[1] |
|
NNA
SPLIT (COTTER), 3/16" x 2" Superseded by part number: 432-1232, 432-1232, NLS
|
| 26. |
432-1220
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Pin, Split (Cotter), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 27. |
96315C1
|
[1] |
BRONZE BUSHING
|
IH
BUSHING - 3/4 ID x 1 inch (19 x 25 mm)
|
| 28. |
1281008C1
|
[1] |
SPRING
|
IH
- extension
|
| 29. |
ZA105843
|
[1] |
ARM
|
CAS
- idler sprocket
|
| 30. |
67872C1
|
[3] |
WASHER
|
IH
- flat, hardened
|
| 31. |
ZA740486
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 12 tooth
|
| 32. |
1254031C1
|
[1] |
RING
|
IH
- retaining
|
| 33. |
A65781
|
[1] |
BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"
|
CAS
BEARING - ball Superseded by part number: 87302841
|
| 34. |
446257
|
[1] |
WASHER,3/4" x 1 3/4" x .148"
|
IH
- flat, 13/16 x 1-3/4 x 1/8 inch (21 x 44 x 3 m) Superseded by part number: 495-31081
|
| 35. |
271724
|
[1] |
PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5
|
NNA
- hex, 5/8 NC x 2-1/4 inch Superseded by part number: 413-1036, 413-1036, NLS
|
| 36. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 37. |
280374
|
[1] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
- hex, 5/8 inch NC
|
| 38. |
ZA304776
|
[1] |
SLIDE
|
IH
- chain Superseded by part number: 700709424
|
| 39. |
280112
|
[1] |
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
|
NH
|
| 40. |
378531R1
|
[1] |
LOCK NUT,1/4"-20, GA
|
IH
NUT - hex lock, 1/4 inch NC Superseded by part number: 87034810
|
