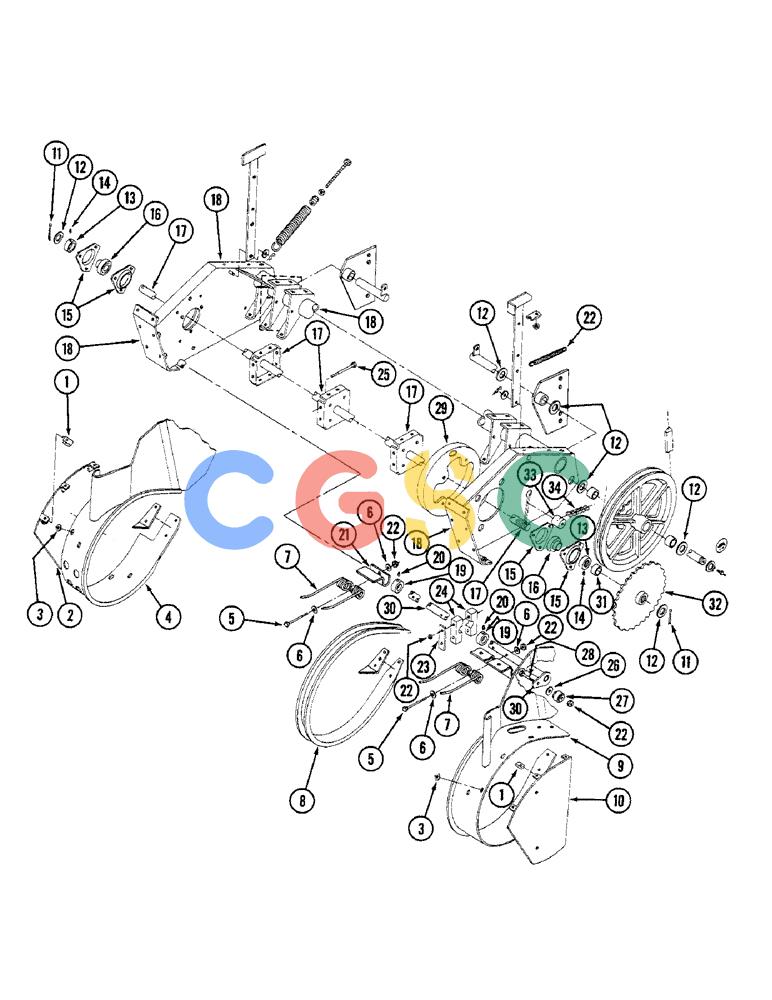

| 1. |
488837C1
|
[8] |
SPRING NUT
|
IH
- speed, 5/16 inch
|
| 2. |
ZA104585
|
[1] |
FILLER
|
IH
- right
|
| 3. |
102393
|
[12] |
WASHER
|
IH
- flat, 11/32 x 11/16 x 1/16 inch (8 x 17 x 1 mm) Superseded by part number: 120393
|
| 4. |
ZA104276
|
[1] |
BAND
|
IH
- end right
|
| 5. |
113-257
|
[44] |
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
|
CAS
- hex, 3/8 NC x 2-1/2 inch Superseded by part number: 87936
|
| . . |
9413979
|
[44] |
LOCK NUT,3/8"-16, GC
|
IH
NUT - hex lock, 3/8 inch NC Superseded by part number: 232-4136
|
| 6. |
120394
|
[44] |
WASHER,3/8", SAE
|
IH
WASHER - flat, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm) Superseded by part number: 87016
|
| 7. |
ZA103012
|
[44] |
TOOTH
|
IH
FINGER - spring Superseded by part number: ZA106550
|
| 8. |
ZA105424
|
[21] |
TINE BAR
|
IH
BAND (Replaces ZA104257)
|
| 9. |
ZA104277
|
[1] |
BAND
|
IH
- end left
|
| 10. |
ZA104584
|
[1] |
FILLER
|
IH
- left
|
| 11. |
432-1628
|
[2] |
COTTER PIN,1/4" x 1 3/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 3/4" Superseded by part number: 87041
|
| 12. |
22050R1
|
[1] |
WASHER
|
IH
- flat, 1-9/32 x 1-3/4 x 1/16 inch (32 x 44 x 1 mm) Superseded by part number: 87613234
|
| 13. |
557995R11
|
[2] |
COLLAR
|
IH
- locking Superseded by part number: 47508396
|
| 14. |
192450
|
[2] |
SET SCREW,Hex Soc, 5/16"-18 x 5/16"
|
IH
SCREW - Allen head cup point set, 5/16 NC x 5/16 inch Superseded by part number: 115321
|
| 15. |
662649R1
|
[4] |
RETAINER
|
IH
HOUSING - bearing Superseded by part number: 84320112
|
| 16. |
617667R92
|
[2] |
BALL BEARING,31.75mm ID x 62mm OD x 18mm W
|
CAS
- 1-1/4 inch ID (31 mm) Superseded by part number: 84484181
|
| 17. |
ZA103775
|
[1] |
REEL
|
IH
- pickup
|
| 18. |
ZA103757
|
[1] |
FRAME
|
IH
- pickup
|
| 19. |
517645R11
|
[8] |
COLLAR
|
IH
- with set screw, locking Superseded by part number: 47577188
|
| 20. |
102892
|
[8] |
SET SCREW
|
IH
- square head cup point set, 3/8 NC x 1/2 inch Superseded by part number: 87023136
|
| 21. |
ZA105148
|
[4] |
CLAMP
|
IH
- spring finger
|
| 23. |
ZA718159
|
[12] |
PLATE
|
IH
- bearing
|
| 24. |
ZA761580
|
[16] |
CAP
|
IH
- bearing half (Center and right end of reel)
|
| 24. |
ZA105582
|
[8] |
BEARING HALF,1"
|
IH
CAP - bearing half (Left end of reel)
|
| 25. |
180137
|
[24] |
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
|
IH
- hex, 3/8 NC x 2-3/4 inch Superseded by part number: 113-248
|
| 26. |
390305C1
|
[4] |
WASHER
|
IH
- flat hardened, 13/32 x 13/16 x 1/16 inch (10 x 20 x 1 mm) Superseded by part number: 87613282
|
| 27. |
96339C1
|
[4] |
CAMSHAFT BEARING,0.3752" ID x 1.25" OD x 0.8025"
|
IH
- cam follower (Replaces ZA015882)
|
| 28. |
24842R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 8
|
IH
Superseded by part number: 326-628
|
| 29. |
ZA105772
|
[1] |
CAM
|
IH
- pickup (Replaces ZA760048)
|
| . . |
219-8
|
[28] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 30. |
ZA105526
|
[4] |
BAR
|
IH
- pickup
|
| 31. |
298274R1
|
[1] |
BUSHING
|
IH
SPACER - tube (Replaces 614614R1)
|
| 32. |
ZA761609
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 20 teeth (Standard)
|
| 32. |
ZA105596
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 15 teeth (Power reduction)
|
| 33. |
ZA712225
|
[1] |
SLIDE
|
IH
- chain
|
| 34. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN ASSEMBLY (Use 33 links from roll marked 569089R91 1 offset link, 456929R91 and 1 connecting link 587372R91) (For power reduction use 31 links)
|
| . . |
456929R91
|
[1] |
CHAIN LINK
|
IH
LINK - offset Superseded by part number: 86595273
|
| . . |
587372R91
|
[1] |
CONNECTING LINK
|
IH
LINK - connecting Superseded by part number: 242-1310
|
| . . |
569089R91
|
[1] |
CHAIN (AG),10' L, 1.0" Pitch
|
IH
CHAIN - 10 foot (3.048 m) roll
|
| . . |
ZA105428
|
[1] |
KIT
|
IH
- pickup service, Includes: ref. nos. 6, 22, 24, 25, 27, 28, 29, 30, P/N 109454
|
