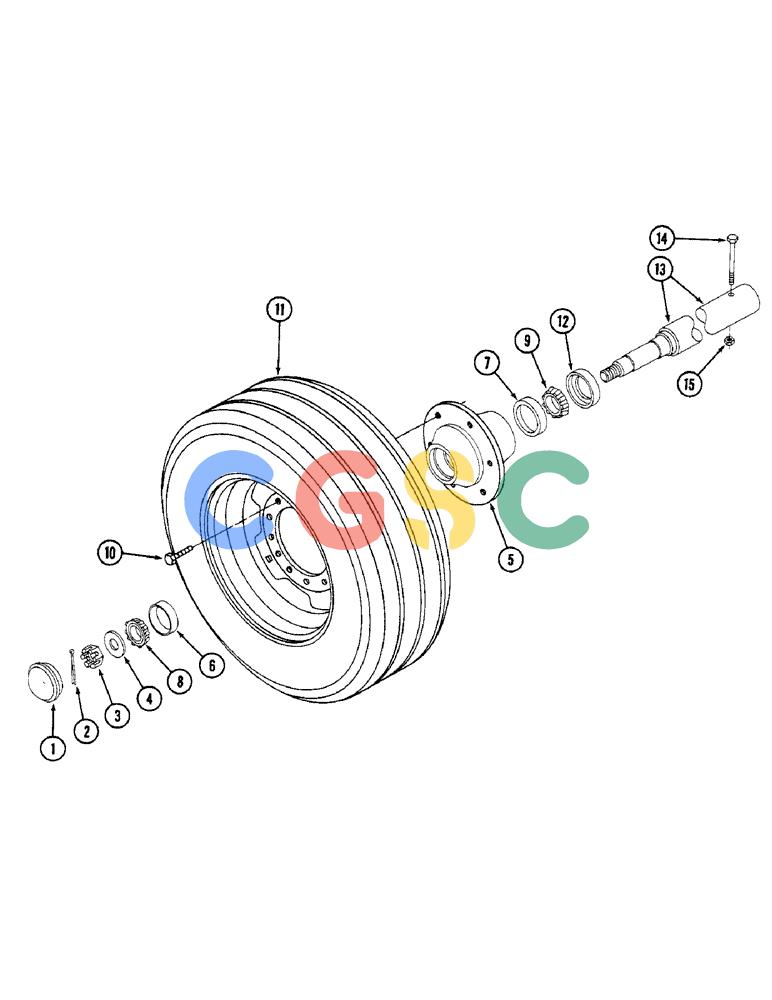

| 1. |
614406R1
|
[2] |
CAP
|
CAS
- wheel hub Superseded by part number: 518842R1
|
| 2. |
103397
|
[2] |
COTTER PIN,5/32" x 1 1/4"
|
IH
Pin, Split (Cotter), 5/32" x 1 1/4" Superseded by part number: 132-341
|
| 3. |
427646
|
[2] |
SLOTTED NUT,7/8"-14, G5
|
IH
NUT - hex slotted, 7/8 inch NF Superseded by part number: 26963R1
|
| 4. |
25539R1
|
[2] |
WASHER
|
IH
WASHER - flat, 15/16 x 1-3/4 x 1/8 inch (23 x 44 x 3 mm)
|
| 5. |
ZA625501
|
[2] |
HUB
|
IH
ASSEMBLY
|
| 6. |
651817R1
|
[2] |
BEARING CUP
|
IH
CUP - bearing outer 2-21/64 OD (60 mm) Superseded by part number: 84356153
|
| 6. |
651817R1GV
|
[2] |
BEARING CUP
|
MKT
Value, Bearing Cup
|
| 7. |
478793R1
|
[2] |
BEARING CUP
|
IH
CUP - bearing inner 2-5/8 OD (66 mm) Superseded by part number: 1995
|
| 8. |
651818R91
|
[2] |
ROLLER BEARING,31.77 mm ID x 16.08 mm
|
IH
CONE - bearing outer 1-1/4 ID (31 mm) Superseded by part number: 84356153
|
| 9. |
160558C91
|
[2] |
BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"
|
IH
CONE - bearing inner 1-1/2 ID (38 mm) Superseded by part number: 1996
|
| 10. |
549962R1
|
[12] |
BOLT,1 1/2" - 20 x 1 1/2", Class 3
|
IH
- wheel Superseded by part number: 198056
|
| 11. |
1336823C1
|
[2] |
WHEEL
|
CAS
- for 9.56 x 14 tire
|
| . . |
387841R91
|
[2] |
VALVE
|
IH
- inflation, 29/64 inch diameter Superseded by part number: 182692
|
| 12. |
1254019C1
|
[2] |
OIL SEAL
|
IH
SEAL - oil 2-15/32 OD (62 mm)
|
| 13. |
ZA103696
|
[2] |
SPINDLE
|
IH
- 14-1/2 inch long Superseded by part number: 96320C1, ZA106003, 138763A1, 86512015
|
| 14. |
271729
|
[2] |
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5
|
IH
- hex, 5/8 NC x 3-1/2 inch Superseded by part number: 413-1056, 413-1056, NLS
|
| 15. |
9413969
|
[2] |
NUT,5/8"-11, GB
|
IH
- hex lock 5/8 inch NC Superseded by part number: 9413960
|
