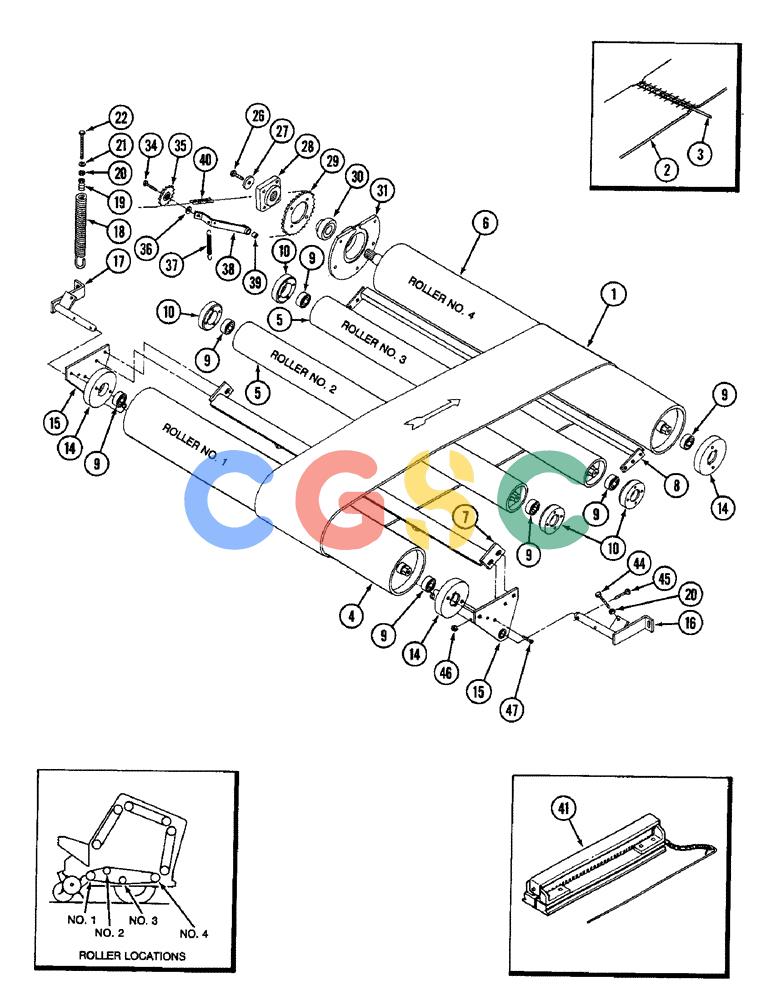

| 1. | ZA104765 | [4] |
BELT |
IH- roller, endless, 11 inch (279 MM) wide (Alternate part is ZA104712) Superseded by part number: 225969A1 |
| 2. | ZA104712 | [4] |
BELT |
IH- Roller, 11 inch (279 mm) wide (Alternate part is ZA104765) Superseded by part number: 700711081, 700724729 |
| 3. | ZA102977 | [1] |
PIN |
IH- belt |
| 4. | ZA105926 | [1] |
ROLLER |
CASASSEMBLY - number 1 |
| 5. | ZA105916 | [2] |
ROLLER |
CASASSEMBLY - number 2 and 3 |
| 6. | ZA105918 | [1] |
ROLLER |
CASASSEMBLY - number 4 Superseded by part number: 228695A1, 251880A1 |
| 7. | ZA105980 | [1] |
DIVIDER |
CAS- belt |
| 8. | ZA105913 | [1] |
STRIPPER |
CASSCRAPER - roller Superseded by part number: ZA106781 |
| 9. | ZA105794 | [7] |
BALL BEARING |
CASBEARING - hex bore, 1.25 inch (32 MM) ID Superseded by part number: 47442495 |
| 10. | ZA105796 | [4] |
COLLAR |
CAS- bearing |
| 14. | ZA105799 | [3] |
COLLAR |
CAS- bearing |
| 15. | ZA105946 | [1] |
PIVOT |
CAS- idler |
| 16. | ZA104905 | [1] |
SHAFT |
IHASSEMBLY - pivot, left |
| 17. | ZA104906 | [1] |
SHAFT |
IHASSEMBLY - pivot, right |
| 18. | ZA761370 | [2] |
SPRING |
IHASSEMBLY - extension |
| 19. | 1281009C1 | [1] |
INSERT |
IH- spring |
| 20. | 120378 | [4] |
NUT,Hex, 1/2" - 13, Gr 5 |
IHNUT, 1/2"-13, G5 Superseded by part number: 280431 |
| 21. | NLS | [2] |
NO LONGER SERVICED |
BAS- flat, 17/32 x 1-1/16 x 5/64 inch (13 x 27 x 2 MM) |
| 22. | 445608 | [2] |
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5 |
IH- hex, 1/2 NC x 5-1/2 inch Superseded by part number: 88576 |
| 26. | 27908R1 | [1] |
BOLT,1/2" x 1 1/4", Gr 8 |
CAS- hex, 1/2 NC x 1-1/4 inch, grade 8 |
| 27. | 357020R1 | [1] |
WASHER |
IH- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 MM) |
| 28. | ZA104593 | [1] |
HUB |
IH- splined |
| 29. | ZA104227 | [1] |
SPROCKET ASSY. |
IHSPROCKET - 30 tooth |
| 30. | 96328C1 | [1] |
BALL BEARING,40mm ID x 80mm OD x 22mm W |
CAS- ball, 1.57 inch (40 MM) ID |
| 31. | ZA104841 | [1] |
HOUSING |
IH- bearing |
| 34. | 271723 | [1] |
SNAP RING,Hex, 5/8" - 11 x 2", Gr 5 |
NNA- hex, 5/8 NC x 2 inch Superseded by part number: 413-1032, 413-1032, NLS |
| 35. | 541857R92 | [1] |
SPROCKET,15T |
IHASSEMBLY - idler (Includes bearing) |
| 36. | 67872C1 | [1] |
WASHER |
IH- flat, 21/32 x 1-1/4 x 1/4 inch (17 x 32 x 6 MM) |
| 37. | 1281008C1 | [1] |
SPRING |
IH- extension |
| 38. | ZA104649 | [1] |
ARM |
IHASSEMBLY - idler sprocket |
| 39. | 96315C1 | [1] |
BRONZE BUSHING |
IHBUSHING - idler arm |
| 40. | NSS | [1] |
NOT SOLD SEPARAT |
CONCHAIN ASSEMBLY - roller 10 to roller 4 (Use 151 links from bulk chain 611362R1, and 1 connecting link 574532R91) |
| . . | 611362R91 | [1] |
CHAIN (AG) |
IHCHAIN - 10 foot (3 M) roll Superseded by part number: 611362R91X |
| . . | 574532R91 | [1] |
CLIP, SPRING |
IHLINK - chain, connecting Superseded by part number: 241-1316 |
| 41. | 1254050C1 | [1] |
TOOL |
IHLACER - belt, 6 inch (152 MM) Superseded by part number: 828459 |
| 44. | 667486R1 | [2] |
BOLT |
IHBOLT - hex, special |
| 45. | 180183 | [4] |
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5 |
IH- hex, 1/2 NC x 2-1/4 inch Superseded by part number: 113-441 |
| 46. | 9413956 | [4] |
LOCK NUT,1/2"-13, GB |
IHNUT - hex lock, 1/2 inch NC Superseded by part number: 231-4138 |
| 47. | 1336821C1 | [8] |
SCREW,Lock, Flat Csk Hd, 3/8" - 16 x 125mm |
CASBOLT - hex socket flat head, 3/8 NC x 1 inch |
| . . | 208790C1 | [1] |
PACKAGE |
IHKIT - repair, belt (Box of lacing hooks) |
