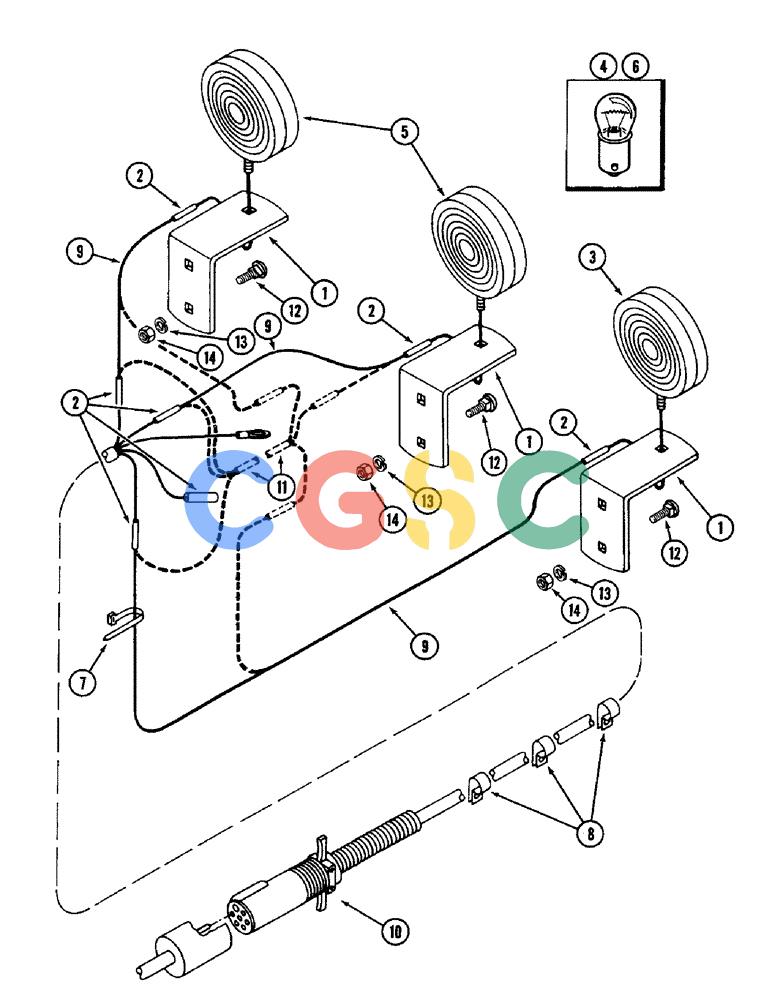

| 1. | ZA708451 | [3] |
BRACKET |
IH- lamp |
| 2. | ZA707964 | [1] |
TERMINAL CONNECTOR,14 - 16 |
IHTERMINAL - butt splice |
| 3. | ZA103734 | [1] |
LIGHT |
CASLAMP ASSEMBLY - tail, red |
| 4. | 9417866 | [1] |
BULB,C6, #1156, 12.8V |
IH- lamp, no. 1156 Superseded by part number: 529068 |
| 5. | ZA103735 | [2] |
LIGHT |
CASLAMP ASSEMBLY - flasher, amber Superseded by part number: ZA708294 |
| 7. | 291207C1 | [1] |
CLAMP |
IHSTRAP - tie Superseded by part number: 529070 |
| 8. | 299614C1 | [3] |
CLAMP |
IH- tube Superseded by part number: 515-25127 |
| 9. | NSS | [1] |
NOT SOLD SEPARAT |
CONWIRE - 14 gauge (Cut from bulk roll 995055R1) |
| . . | 995055R1 | [1] |
CABLE |
IHWIRE - 14 gauge, 100 foot (30 M) roll |
| 10. | ZA104936 | [1] |
HARNESS |
CAS- lighting |
| . . | 997130R2 | [1] |
CABLE |
IH- 3 conductor, 14 gauge, 100 foot (30 M) roll |
| 12. | 598803R1 | [6] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd |
IHBOLT - round head square neck, 5/16 NC x 1 inch Superseded by part number: 88992 |
| 13. | 80681 | [6] |
LOCK NUT,5/16" |
NHWASHER, LOCK, 5/16" Superseded by part number: 83990583 |
| 14. | 120376 | [6] |
NUT,5/16"-18, G5 |
IH Superseded by part number: 9635082 |
