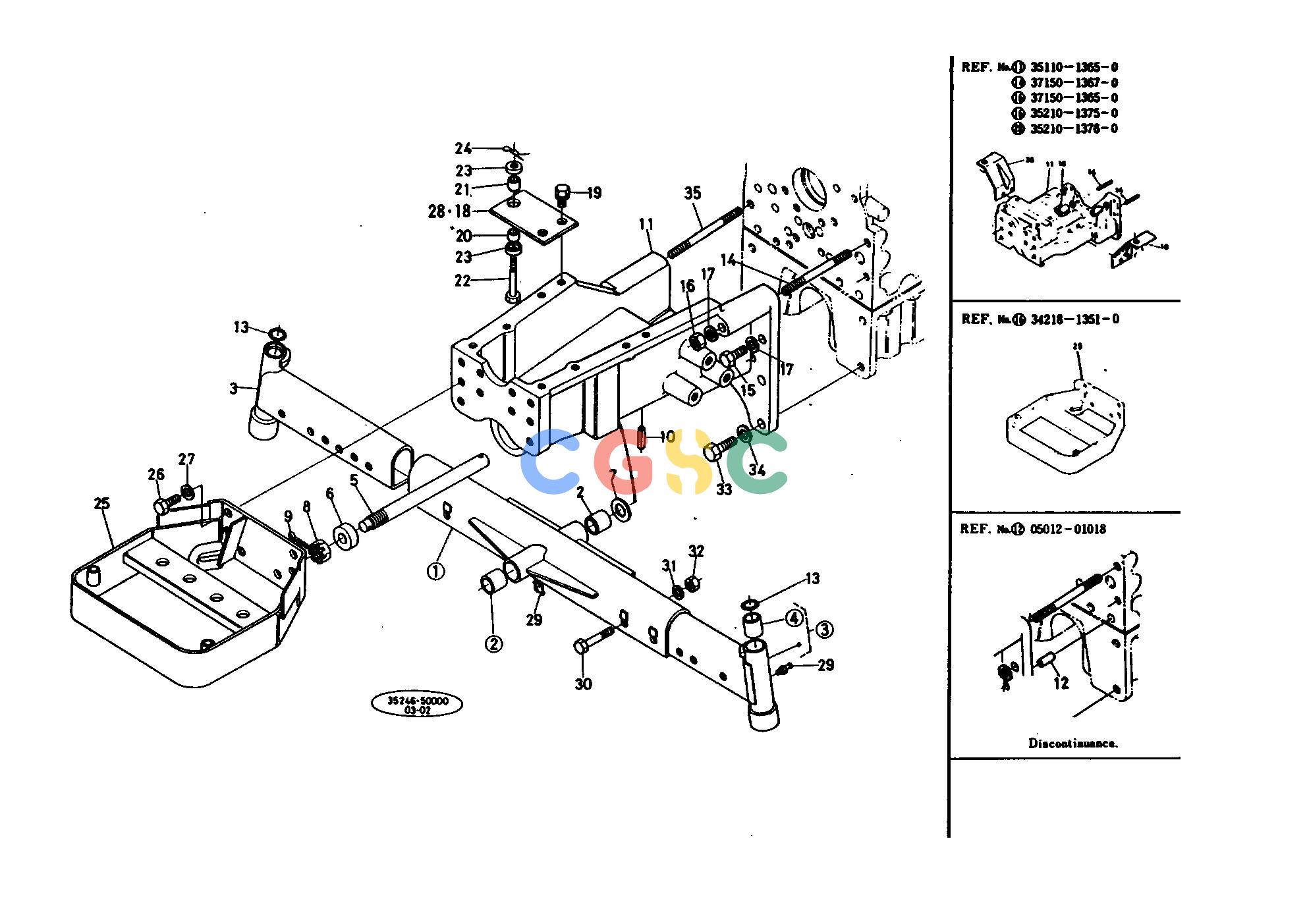

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3521013110 | [1] | AXLE FRONT MIDDLE | 23.1000(lbs); 10.500 |
| 002. | 3415013430 | [2] | BUSH | 0.0594(lbs); 0.027 |
| 003. | 3521013120 | [2] | AXLE FRONT OUTER | 11.0000(lbs); 5.000 |
| 004. | 3215011530 | [2] | BUSH | 0.1386(lbs); 0.063 |
| 005. | 3715013410 | [1] | PIN CENTER | 1.3530(lbs); 0.615 |
| 006. | 3715013460 | [1] | COLLAR ADJUSTING | 0.2200(lbs); 0.100 |
| 007. | 6413535510 | [1] | COLLAR | 0.0220(lbs); 0.010 |
| 008. | 3221013480 | [1] | NUT ADJUSTING | 0.2464(lbs); 0.112 |
| 009. | 0551150430 | [1] | PIN SPLIT | 0.0088(lbs); 0.004 |
| 010. | 0541100840 | [1] | PIN SPRING | 0.0176(lbs); 0.008 |
| 011. | 3511013650 | [1] | BRACKET FRONT AXLE | ; <=13205 28.2700(lbs); 12.850 |
| 011. | 3517013650 | [1] | BRACKET FRONT AXLE | ; =>50001 0.0000(lbs); 0.000 |
| 011. | 3517013654 | [1] | BRACKET FRONT AXLE | ; =>54668 37.1800(lbs); 16.900 |
| 012. | 0501201018 | [2] | PIN STRAIGHT | 0.0264(lbs); 0.012 |
| 013. | 0481100280 | [2] | O RING | 0.0044(lbs); 0.002 |
| 014. | 3715013670 | [5] | STUD | ; <=13205 0.0616(lbs); 0.028 |
| 014. | 3426013640 | [2] | STUD | ; =>50001 0.1628(lbs); 0.074 |
| 015. | 0117351030 | [1] | BOLT | ; =>50001 0.0506(lbs); 0.023 |
| 016. | 3715013660 | [5] | NUT | ; <=13205 0.0440(lbs); 0.020 |
| 016. | 3730014190 | [2] | NUT | ; =>50001 0.0198(lbs); 0.009 |
| 017. | 0451250100 | [3] | WASHER SPRING | ; =>50001 0.0066(lbs); 0.003 |
| 018. | 3521013750 | [1] | SUPPORT RADIATOR LH | ; <=13205 0.5720(lbs); 0.260 |
| 018. | 3420013750 | [1] | SUPPORT RADIATOR | ; =>50001 0.5104(lbs); 0.232 |
| 019. | 0113051020 | [4] | BOLT | 0.0000(lbs); 0.000 |
| 020. | 1511172180 | [2] | CUSHION | 0.0330(lbs); 0.015 |
| 021. | 1511172190 | [2] | CUSHION | 0.0352(lbs); 0.016 |
| 022. | 1510872380 | [2] | BOLT | 0.0880(lbs); 0.040 |
| 023. | 1511172200 | [4] | WASHER | 0.0286(lbs); 0.013 |
| 024. | 0551551000 | [2] | PIN SNAP | 0.0044(lbs); 0.002 |
| 025. | 3421813810 | [1] | BUMPER | ; <=13205 11.0000(lbs); 5.000 |
| 025. | 3511013810 | [1] | BUMPER | ; =>50001 12.7600(lbs); 5.800 |
| 026. | 0117351230 | [4] | BOLT | 0.0814(lbs); 0.037 |
| 027. | 0451250120 | [4] | WASHER SPRING | 0.0066(lbs); 0.003 |
| 028. | 3521013760 | [1] | SUPPORT RADIATOR RH | ; <=13205 0.5500(lbs); 0.250 |
| 028. | 3420013750 | [1] | SUPPORT RADIATOR | ; =>50001 0.5104(lbs); 0.232 |
| 029. | 0661310010 | [3] | NIPPLE GREASE | 0.0132(lbs); 0.006 |
| 030. | 0117351480 | [4] | BOLT | 0.2266(lbs); 0.103 |
| 031. | 0451250140 | [4] | WASHER SPRING | 0.0154(lbs); 0.007 |
| 032. | 0217450140 | [4] | NUT | 0.0308(lbs); 0.014 |
| 033. | 0117351235 | [4] | BOLT | ; =>50001 0.0880(lbs); 0.040 |
| 034. | 0451250120 | [4] | WASHER SPRING | ; =>50001 0.0066(lbs); 0.003 |
| 035. | 3526013630 | [1] | STUD | ; =>53708 0.1760(lbs); 0.080 |
