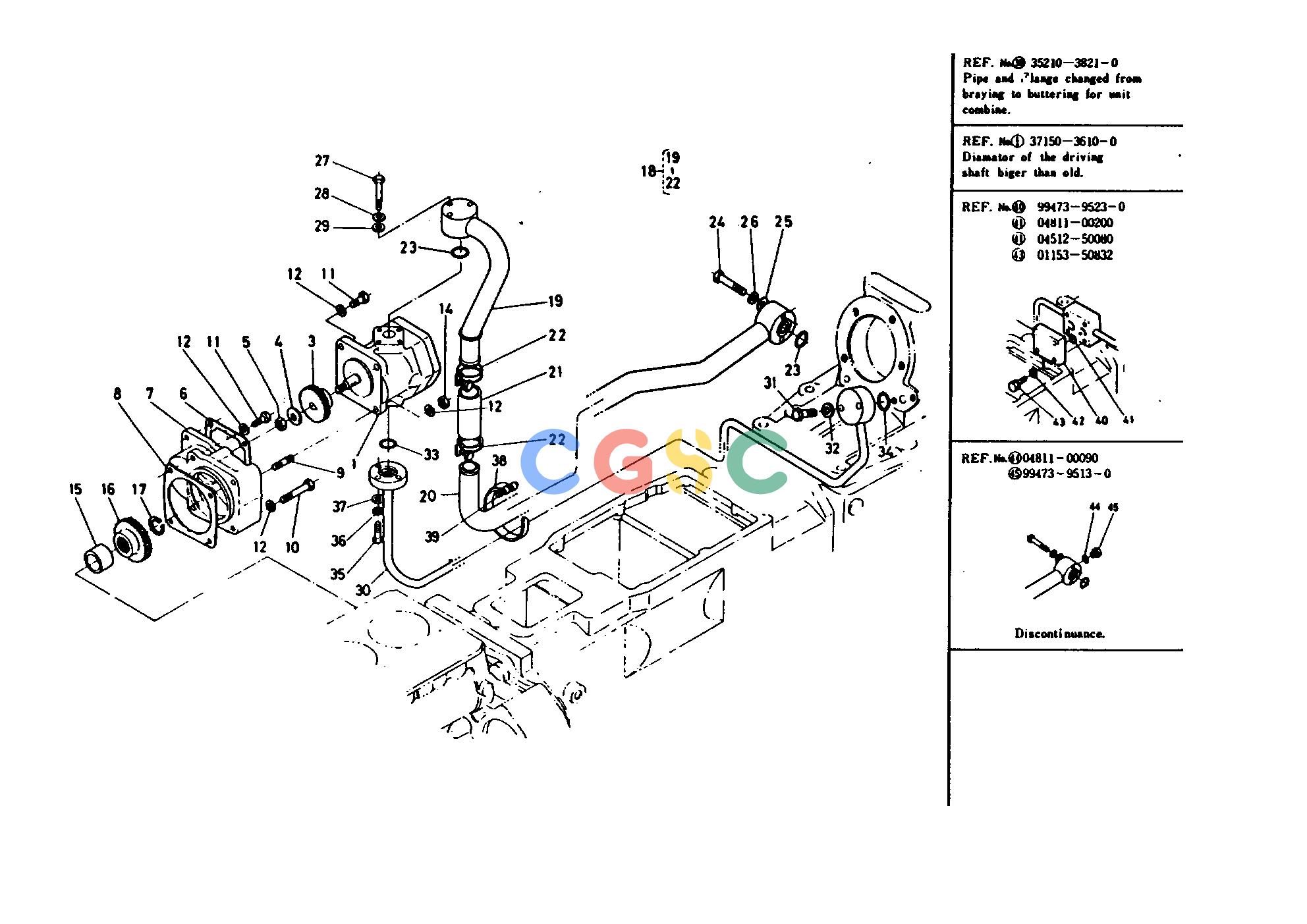

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3715036100 | [1] | PUMP OIL PRESSURE | 0.0000(lbs); 0.000 |
| 001. | 3511076101 | [1] | PUMP OIL PRESSURE | ; =>10001 0.0000(lbs); 0.000 |
| 003. | 3415037830 | [1] | GEAR SPUR 30 | 0.3630(lbs); 0.165 |
| 004. | 3227037890 | [1] | WASHER CLAW | 0.0000(lbs); 0.000 |
| 005. | 0205450080 | [1] | NUT | 0.0110(lbs); 0.005 |
| 006. | 3415037870 | [1] | GASKET | 0.0000(lbs); 0.000 |
| 007. | 3426037850 | [1] | HOLDER O/P PUMP | 3.0030(lbs); 1.365 |
| 008. | 3415037860 | [1] | GASKET | 0.0000(lbs); 0.000 |
| 009. | 0151350820 | [2] | STUD | 0.0440(lbs); 0.020 |
| 010. | 0115350855 | [2] | BOLT | 0.0506(lbs); 0.023 |
| 011. | 0115350822 | [4] | BOLT | 0.0242(lbs); 0.011 |
| 012. | 0451250080 | [8] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 014. | 0211450080 | [2] | NUT | 0.0110(lbs); 0.005 |
| 015. | 3415037820 | [1] | COLLAR | 0.1100(lbs); 0.050 |
| 016. | 3415037810 | [1] | GEAR SPUR 38 | 0.4950(lbs); 0.225 |
| 017. | 0461200250 | [1] | CIR-CLIP EXTERNAL | 0.0044(lbs); 0.002 |
| 019. | 3722038120 | [1] | PIPE INLET | 1.0186(lbs); 0.463 |
| 020. | 3511038130 | [1] | PIPE INLET | 2.0240(lbs); 0.920 |
| 021. | 3715037770 | [1] | PIPE RUBBER | 0.0770(lbs); 0.035 |
| 022. | 3715037780 | [2] | CLAMP | 0.0000(lbs); 0.000 |
| 023. | 0481100200 | [2] | O RING | 0.0022(lbs); 0.001 |
| 024. | 0115350850 | [2] | BOLT | 0.0440(lbs); 0.020 |
| 025. | 0401350080 | [2] | WASHER PLAIN | 0.0066(lbs); 0.003 |
| 026. | 0451250080 | [2] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 027. | 0105350645 | [3] | BOLT | 0.0264(lbs); 0.012 |
| 028. | 0451250060 | [3] | WASHER SPRING | 0.0022(lbs); 0.001 |
| 029. | 0401350060 | [3] | WASHER PLAIN | 0.0022(lbs); 0.001 |
| 030. | 3521038215 | [1] | ASSY PIPE DELIVERY | ; =>52236 1.8700(lbs); 0.850 |
| 030. | 3521038210 | [1] | ASSY PIPE DELIVERY | ; =>50001 1.7600(lbs); 0.800 |
| 031. | 0115350830 | [2] | BOLT | 0.0286(lbs); 0.013 |
| 032. | 0451250080 | [2] | WASHER SPRING | 0.0044(lbs); 0.002 |
| 033. | 0481000200 | [1] | O RING | 0.0022(lbs); 0.001 |
| 034. | 0481000120 | [1] | O RING | 0.0022(lbs); 0.001 |
| 035. | 0105350628 | [3] | BOLT | 0.0154(lbs); 0.007 |
| 036. | 0451250060 | [3] | WASHER SPRING | 0.0022(lbs); 0.001 |
| 037. | 0401350060 | [3] | WASHER PLAIN | 0.0022(lbs); 0.001 |
| 038. | 3715038950 | [1] | BAND PIPE | 0.0440(lbs); 0.020 |
| 038. | 6711153770 | [1] | BAND PIPE | ; =>50001 0.0220(lbs); 0.010 |
| 039. | 3343082760 | [1] | PIN PIPE BAND | 0.0088(lbs); 0.004 |
| 040. | 9947395230 | [1] | COVER FLANGE | ; <=52235 1.1528(lbs); 0.524 |
| 041. | 0481100200 | [2] | O RING | ; <=52235 0.0022(lbs); 0.001 |
| 042. | 0451250080 | [4] | WASHER SPRING | ; <=52235 0.0044(lbs); 0.002 |
| 043. | 0115350832 | [4] | BOLT | ; <=52235 0.0330(lbs); 0.015 |
| 044. | 0481100090 | [1] | O RING | 0.0022(lbs); 0.001 |
| 045. | 9947395130 | [1] | PLUG O RING | 0.0308(lbs); 0.014 |
