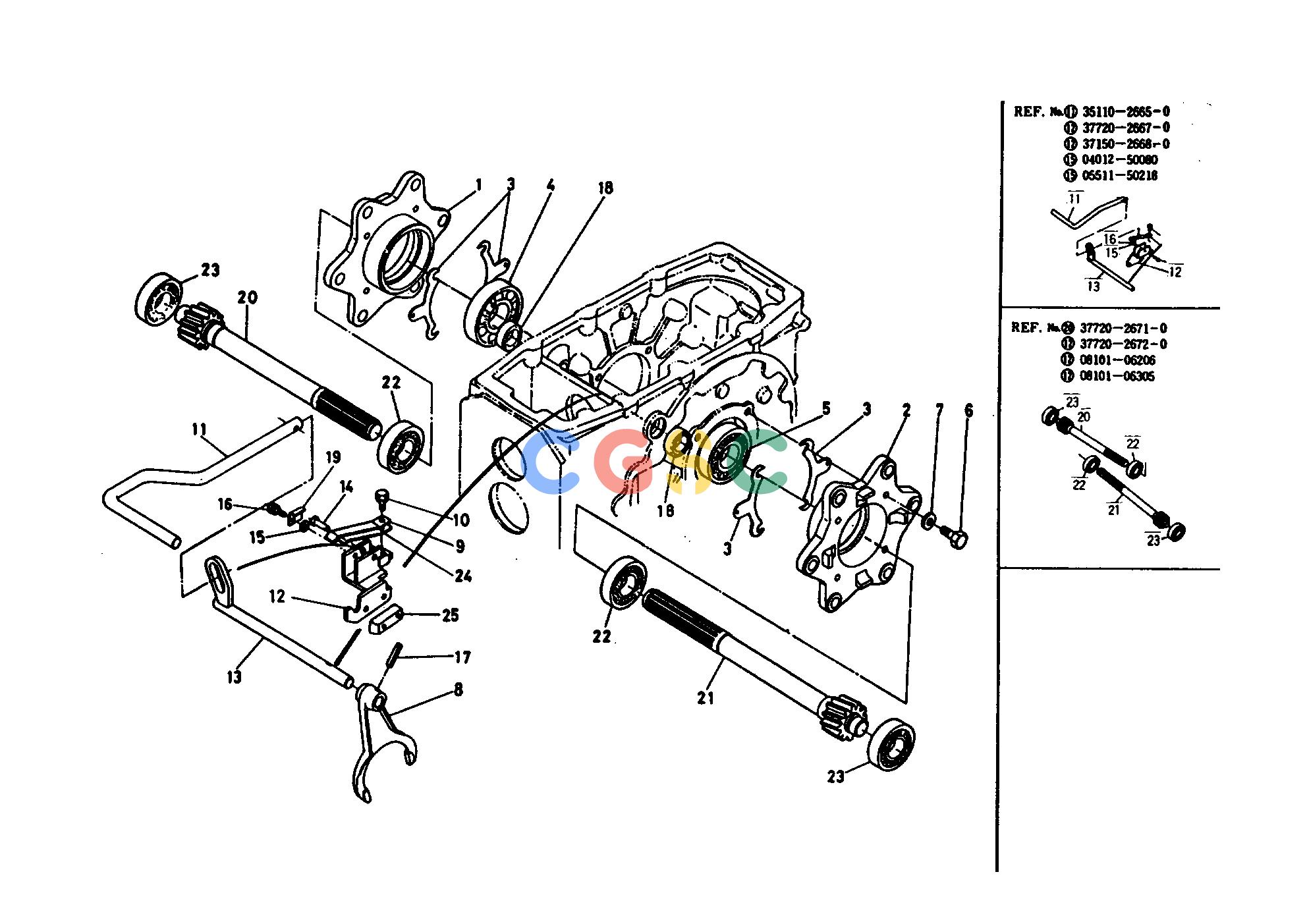

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3715026550 | [1] | CASE DIFF BEARING RH | 0.0000(lbs); 0.000 |
| 002. | 3715026560 | [1] | CASE DIFF BEARING LH | 0.0000(lbs); 0.000 |
| 003. | 3715026160 | [12] | SHIM | 0.2T 0.0110(lbs); 0.005 |
| 003. | 3715026170 | [8] | SHIM | 0.1T 0.0110(lbs); 0.005 |
| 003. | 3715026180 | [4] | SHIM | 0.5T 0.0220(lbs); 0.010 |
| 004. | 0810106210 | [1] | BEARING BALL (6210) | 0.9900(lbs); 0.450 |
| 005. | 0810106208 | [1] | BEARING BALL (6208) | 0.7810(lbs); 0.355 |
| 006. | 0117351030 | [8] | BOLT | 0.0506(lbs); 0.023 |
| 007. | 0451250100 | [8] | WASHER SPRING | 0.0066(lbs); 0.003 |
| 008. | 3715026630 | [1] | FORK SHIFT | 0.8250(lbs); 0.375 |
| 009. | 3715026643 | [1] | SPRING | 0.0726(lbs); 0.033 |
| 010. | 0112050816 | [1] | BOLT | 0.0000(lbs); 0.000 |
| 011. | 3511026650 | [1] | PEDAL DIFF LOCK | ; <=11485 1.3750(lbs); 0.625 |
| 011. | 3730026650 | [1] | PEDAL DIFF LOCK | ; =>50001 1.3970(lbs); 0.635 |
| 012. | 3772026670 | [1] | BRACKET PEDAL | ; <=11485 0.7612(lbs); 0.346 |
| 012. | 3521126680 | [1] | BRACKET PEDAL | ; =>50001 1.2474(lbs); 0.567 |
| 012. | 3521026670 | [1] | BRACKET PEDAL | 1.2980(lbs); 0.590 |
| 013. | 3715026680 | [1] | GAM DIFF LOCK | ; <=11485 0.9460(lbs); 0.430 |
| 013. | 3521126680 | [1] | GAM DIFF LOCK | ; =>50001 1.2474(lbs); 0.567 |
| 014. | 0512250835 | [1] | PIN JOINT | 0.0330(lbs); 0.015 |
| 015. | 0401250080 | [1] | WASHER PLAIN | ; <=11485 0.0022(lbs); 0.001 |
| 015. | 0401550060 | [1] | WASHER PLAIN | ; =>50001 0.0132(lbs); 0.006 |
| 016. | 0551150218 | [1] | PIN SPLIT | ; <=11485 0.0022(lbs); 0.001 |
| 016. | 0120250610 | [1] | BOLT | ; =>50001 0.0088(lbs); 0.004 |
| 017. | 0541100630 | [1] | PIN SPRING | 0.0088(lbs); 0.004 |
| 018. | 0950016287 | [2] | SEAL OIL | 0.0220(lbs); 0.010 |
| 019. | 3511026660 | [1] | PLATE | ; =>50001 0.0088(lbs); 0.004 |
| 020. | 3772026710 | [1] | SHAFT DIFT GEAR RH | ; <=11485 4.6200(lbs); 2.100 |
| 020. | 3723026710 | [1] | SHAFT DIFT GEAR RH | ; =>50001 4.4880(lbs); 2.040 |
| 021. | 3772026720 | [1] | SHAFT DIFT GEAR LH | ; <=11485 5.0600(lbs); 2.300 |
| 021. | 3723026720 | [1] | SHAFT DIFT GEAR LH | ; =>50001 5.0600(lbs); 2.300 |
| 022. | 0810106206 | [2] | BEARING BALL (6206) | ; <=11485 0.4290(lbs); 0.195 |
| 022. | 3723026730 | [2] | BEARING BALL (6206) | ; =>50001 0.4290(lbs); 0.195 |
| 022. | 3722091290 | [2] | BEARING BALL (6206) | (L245-3); =>60897 0.7370(lbs); 0.335 |
| 023. | 0810106305 | [2] | BEARING BALL (6305) | ; <=11485 0.5060(lbs); 0.230 |
| 023. | 3723026740 | [2] | BEARING BALL (6305) | ; =>50001 0.0000(lbs); 0.000 |
| 023. | 3845021980 | [2] | BEARING BALL (6305) | 0.4950(lbs); 0.225 |
| 023. | 0810000031 | [2] | BEARING BALL (6305) | (L245-3); =>60897 0.5324(lbs); 0.242 |
| 023. | 3634041290 | [2] | BEARING BALL (6305) | 0.5170(lbs); 0.235 |
| 024. | 3715026660 | [1] | SPRING | ; =>50001 0.0550(lbs); 0.025 |
| 025. | 3517026590 | [1] | SPACER BRACKET PEDAL | 0.2530(lbs); 0.115 |
