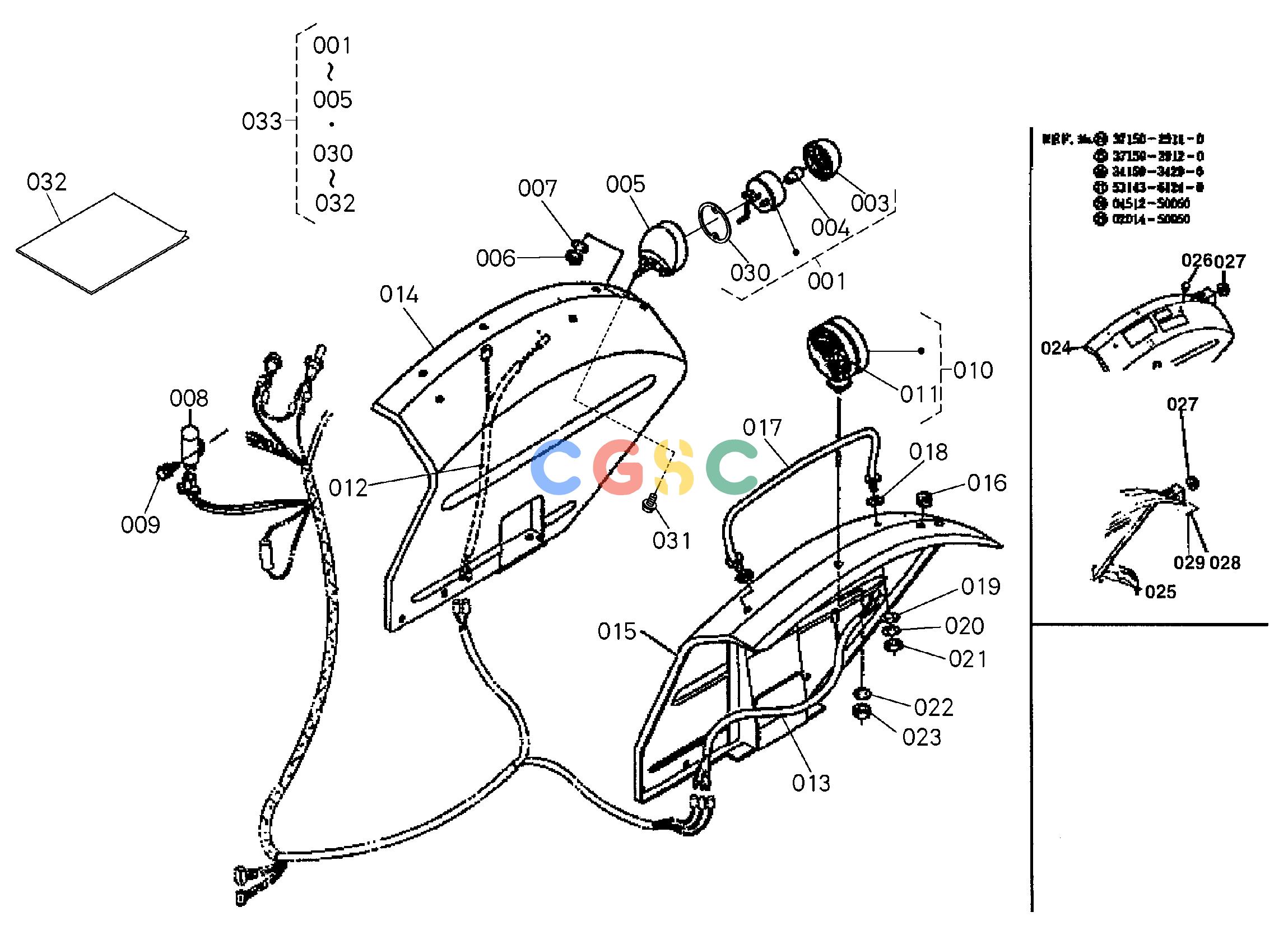

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3435034100 | [2] | ASSY LAMP TAIL | NOT SALE ORDER BY REF.No.033 0.2860(lbs); 0.130 |
| 001. | 3435034103 | [2] | ASSY LAMP TAIL | NOT SALE ORDER BY REF.No.033 0.0000(lbs); 0.000 |
| 001. | H324099100 | [2] | KIT,TAIL LAMP | NOT SALE ORDER BY REF.No.033 0.0000(lbs); 0.000 |
| 001. | H664099100 | [2] | KIT,TAIL LAMP | NOT SALE ORDER BY REF.No.033 0.0000(lbs); 0.000 |
| 001. | TC03034100 | [2] | ASSY LAMP TAIL | 0.2640(lbs); 0.120 |
| 001. | HTC0034100 | [2] | ASSY LAMP TAIL | 0.2640(lbs); 0.120 |
| 003. | 3435034120 | [2] | LENS TAIL LAMP | 0.1100(lbs); 0.050 |
| 003. | TC03099210 | [2] | LENS TAIL LAMP | 0.0770(lbs); 0.035 |
| 004. | 3435034140 | [2] | BULB TAIL LAMP | 0.0176(lbs); 0.008 |
| 005. | 3435034190 | [2] | HOLDER TAIL LAMP | 0.2354(lbs); 0.107 |
| 005. | 3248034190 | [2] | HOLDER TAIL LAMP | 0.3300(lbs); 0.150 |
| 005. | 3248034193 | [2] | HOLDER TAIL LAMP | 0.3300(lbs); 0.150 |
| 006. | 0201450060 | [4] | NUT | 0.0044(lbs); 0.002 |
| 007. | 0451250060 | [4] | WASHER SPRING | 0.0022(lbs); 0.001 |
| 008. | 3517033700 | [1] | FLASHER UNIT | ; =>61087 0.1320(lbs); 0.060 |
| 009. | 0120250616 | [1] | BOLT | 0.0110(lbs); 0.005 |
| 010. | 3545075010 | [2] | ASSY LAMP HAZARD FLA | 0.6600(lbs); 0.300 |
| 010. | H354075000 | [2] | ASSY LAMP HAZARD FLA | 0.6600(lbs); 0.300 |
| 011. | 3545075022 | [2] | VALVE HAZARD FLASHER | 0.0176(lbs); 0.008 |
| 011. | H354075000 | [2] | VALVE HAZARD FLASHER | 0.0176(lbs); 0.008 |
| 012. | 3517034360 | [1] | CABLE 6 | 0.0550(lbs); 0.025 |
| 013. | 3517034370 | [1] | CABLE 7 | 0.0770(lbs); 0.035 |
| 014. | 3511229110 | [1] | ASSY FENDER RH | 16.5000(lbs); 7.500 |
| 015. | 3511229120 | [1] | ASSY FENDER LH | 15.4000(lbs); 7.000 |
| 016. | 3325183910 | [1] | CUSHION | 0.0022(lbs); 0.001 |
| 017. | 3415029170 | [2] | BALUSTRADE | 1.5290(lbs); 0.695 |
| 018. | 3226029180 | [4] | CUSHION | 0.0110(lbs); 0.005 |
| 019. | 0401350140 | [4] | WASHER PLAIN | 0.0220(lbs); 0.010 |
| 020. | 0451250140 | [4] | WASHER SPRING | 0.0220(lbs); 0.010 |
| 021. | 0217450140 | [4] | NUT | 0.0308(lbs); 0.014 |
| 022. | 0451250100 | [1] | WASHER SPRING | 0.0066(lbs); 0.003 |
| 023. | 0211450100 | [1] | NUT | 0.0110(lbs); 0.005 |
| 024. | 3715029110 | [1] | ASSY FENDER RH | ; <=61086 15.1800(lbs); 6.900 |
| 025. | 3715029120 | [1] | ASSY FENDER LH | ; <=61086 15.4000(lbs); 7.000 |
| 026. | 3415934290 | [4] | PLUG | ; <=61086 0.0088(lbs); 0.004 |
| 027. | 5314361240 | [2] | ASSY REFLECTOR | ; <=61086 0.0242(lbs); 0.011 |
| 028. | 0451250050 | [2] | WASHER SPRING | ; <=61086 0.0022(lbs); 0.001 |
| 029. | 0201450050 | [2] | NUT | ; <=61086 0.0044(lbs); 0.002 |
| 030. | 3435099220 | [2] | GASKET LENS | 0.0220(lbs); 0.010 |
| 030. | 3435099222 | [2] | GASKET LENS | 0.0220(lbs); 0.010 |
| 030. | TC03099220 | [2] | GASKET LENS | 0.0264(lbs); 0.012 |
| 031. | 0175450612 | [4] | BOLT FLANGE | 0.0110(lbs); 0.005 |
| 032. | 9999999999 | [1] | MANUAL INSTRUCTION | 0.0000(lbs); 0.000 |
| 033. | H324099100 | [1] | KIT TAIL LAMP | 0.7150(lbs); 0.325 |
