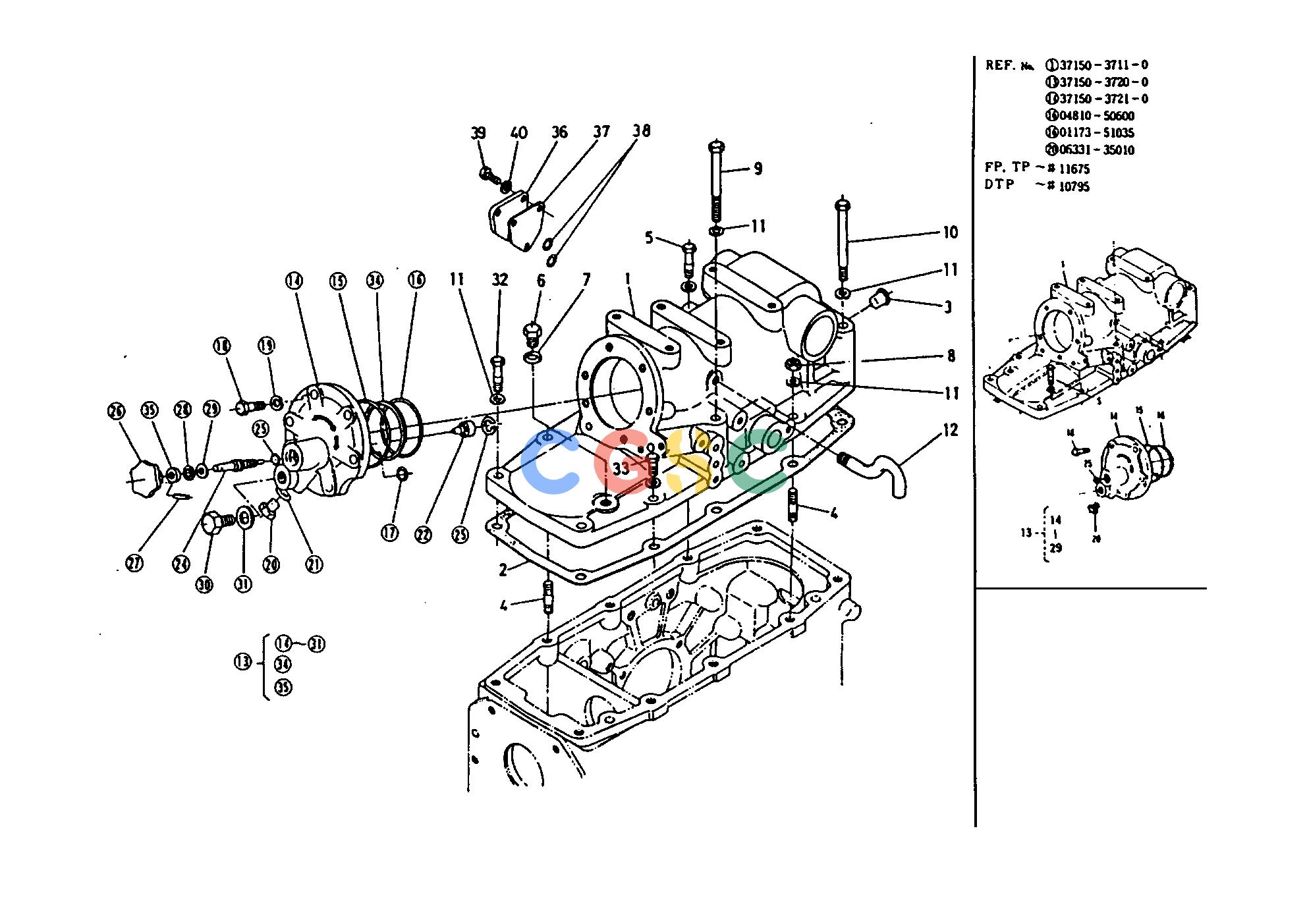

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3715037110 | [1] | CYLINDER O/P | ; <=10795 36.6300(lbs); 16.650 |
| 001. | 3521037110 | [1] | CYLINDER O/P | ; =>50001 44.2200(lbs); 20.100 |
| 002. | 3715037120 | [1] | GASKET | 0.0000(lbs); 0.000 |
| 003. | 3221027580 | [4] | PLUG | 0.0022(lbs); 0.001 |
| 004. | 0157451230 | [2] | STUD | 0.0814(lbs); 0.037 |
| 005. | 0117351235 | [1] | BOLT | ; =>50001 0.0880(lbs); 0.040 |
| 006. | 0631135030 | [1] | PLUG | 0.1276(lbs); 0.058 |
| 007. | 0471701700 | [1] | WASHER SEAL | 0.0066(lbs); 0.003 |
| 008. | 0217650120 | [2] | NUT | 0.0220(lbs); 0.010 |
| 009. | 0117351295 | [2] | BOLT | ; =>50001 0.1892(lbs); 0.086 |
| 010. | 0117351200 | [2] | BOLT | 0.1980(lbs); 0.090 |
| 011. | 0451250120 | [10] | WASHER SPRING | 0.0066(lbs); 0.003 |
| 012. | 3426037270 | [1] | PIPE BREATHER | 0.0660(lbs); 0.030 |
| 013. | 3715037200 | [1] | ASSY COVER O/P CYL. | ; <=10795 4.6200(lbs); 2.100 |
| 013. | 3722037200 | [1] | ASSY COVER O/P CYL. | ; =>50001 7.2600(lbs); 3.300 |
| 014. | 9999999999 | [1] | BLANK | ORDER BY REF.No.013; =>50001 0.0000(lbs); 0.000 |
| 015. | 0481150750 | [1] | O RING | ; <=10795 0.0044(lbs); 0.002 |
| 015. | 0481150900 | [1] | O RING | ; =>50001 0.0066(lbs); 0.003 |
| 016. | 0481050600 | [1] | O RING | ; <=10795 0.0044(lbs); 0.002 |
| 016. | 0481150700 | [1] | O RING | ; =>50001 0.0044(lbs); 0.002 |
| 017. | 0481000140 | [1] | O RING | 0.0022(lbs); 0.001 |
| 018. | 0117351038 | [6] | BOLT | ; <=10795 0.0616(lbs); 0.028 |
| 019. | 0451250100 | [6] | WASHER SPRING | ; =>50001 0.0066(lbs); 0.003 |
| 020. | 0633135010 | [1] | PLUG | ; <=10865 0.0264(lbs); 0.012 |
| 020. | 3715036740 | [1] | PLUG | ; =>50001 0.0550(lbs); 0.025 |
| 021. | 0472400100 | [1] | GASKET | 0.0022(lbs); 0.001 |
| 022. | 3415037250 | [1] | COLLAR ADJUSTING | 0.0220(lbs); 0.010 |
| 023. | 0461100180 | [1] | CIR-CLIP INTERNAL | 0.0022(lbs); 0.001 |
| 024. | 3415037220 | [1] | SCREW ADJUSTING | 0.0550(lbs); 0.025 |
| 025. | 0481000100 | [1] | O RING | 0.0022(lbs); 0.001 |
| 026. | 3415037230 | [1] | GRIP | 0.0880(lbs); 0.040 |
| 027. | 0541100418 | [1] | PIN SPRING | 0.0022(lbs); 0.001 |
| 028. | 3415037260 | [1] | CIR-CLIP INTERNAL | 0.0022(lbs); 0.001 |
| 029. | 0401250080 | [1] | WASHER PLAIN | 0.0022(lbs); 0.001 |
| 030. | 3715036730 | [1] | PLUG | 0.0660(lbs); 0.030 |
| 031. | 3715036720 | [1] | GASKET | 0.0044(lbs); 0.002 |
| 032. | 0117351240 | [2] | BOLT | 0.0990(lbs); 0.045 |
| 033. | 0117351230 | [1] | BOLT | ; =>50001 0.0814(lbs); 0.037 |
| 034. | 3422037290 | [1] | RING BACK UP | ; =>50001 0.0022(lbs); 0.001 |
| 035. | 0923008164 | [1] | OIL SEAL | ; =>50001 0.0022(lbs); 0.001 |
| 036. | 3426037150 | [1] | COVER | ; =>50001 0.3410(lbs); 0.155 |
| 037. | 3426037160 | [1] | PLATE | ; =>50001 0.0880(lbs); 0.040 |
| 038. | 0481000160 | [2] | O RING | ; =>50001 0.0022(lbs); 0.001 |
| 039. | 0115350818 | [3] | BOLT | ; =>50001 0.0220(lbs); 0.010 |
| 040. | 0451250080 | [3] | WASHER SPRING | ; =>50001 0.0044(lbs); 0.002 |
