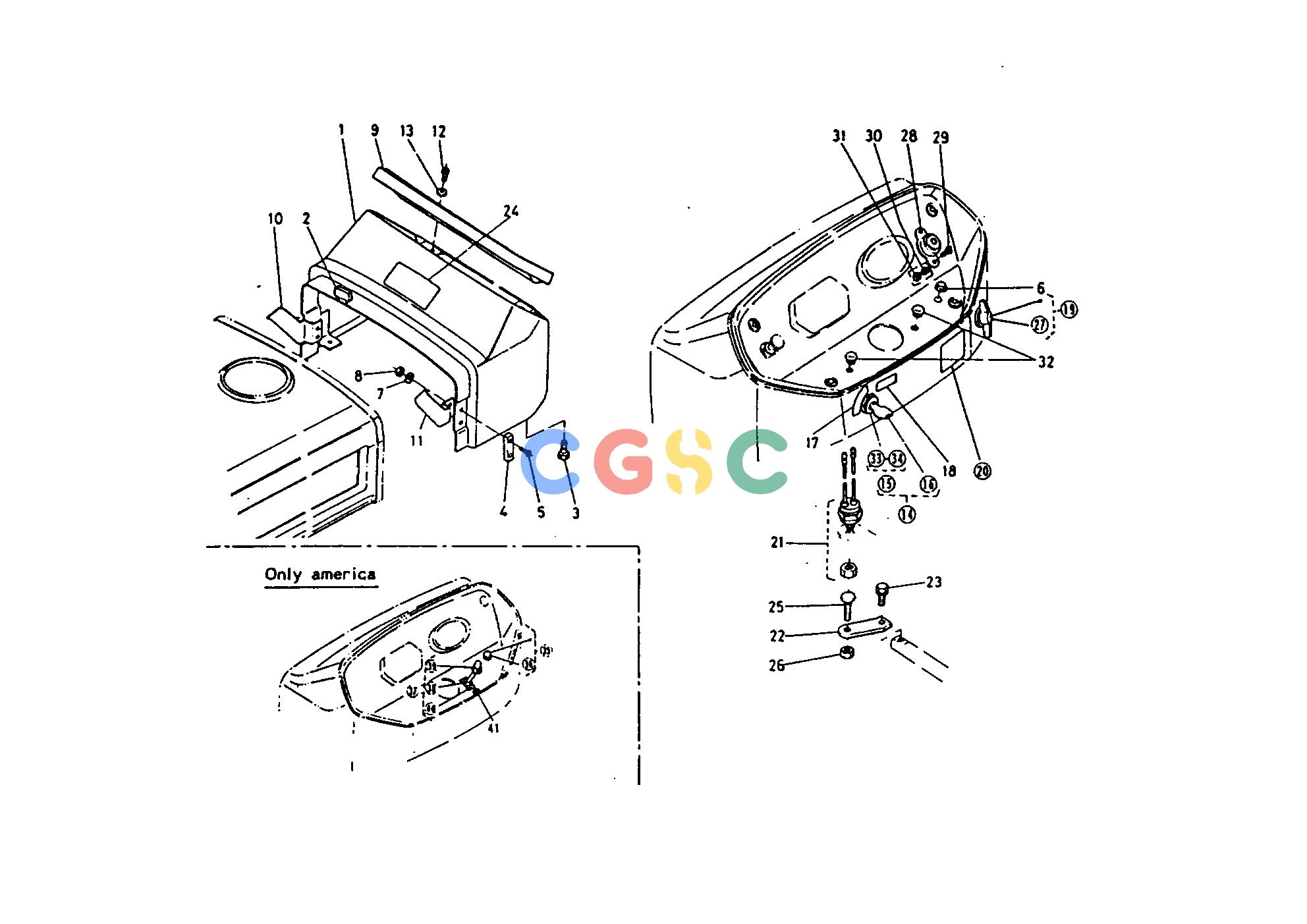

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 3715031110 | [1] | PANEL | ; <=10795 0.0000(lbs); 0.000 |
| 001. | 3511031110 | [1] | PANEL | ; =>50001 5.2800(lbs); 2.400 |
| 002. | 3325183490 | [3] | CUSHION | 0.0176(lbs); 0.008 |
| 003. | 0112050816 | [4] | BOLT | 0.0000(lbs); 0.000 |
| 004. | 3715018180 | [2] | CUSHION | 0.0330(lbs); 0.015 |
| 005. | 0305450514 | [4] | SCREW PAN HEAD | 0.0088(lbs); 0.004 |
| 006. | 3415932610 | [1] | CAP | 0.0000(lbs); 0.000 |
| 007. | 0451250050 | [4] | WASHER SPRING | 0.0022(lbs); 0.001 |
| 008. | 0205450050 | [4] | NUT | 0.0044(lbs); 0.002 |
| 009. | 3715031120 | [1] | BOARD PANEL | 1.1770(lbs); 0.535 |
| 010. | 3715031180 | [1] | GUIDE RH | 0.1474(lbs); 0.067 |
| 011. | 3715031190 | [1] | GUIDE LH | 0.1430(lbs); 0.065 |
| 012. | 3415031140 | [4] | SCREW BINDING HEAD | 0.0198(lbs); 0.009 |
| 013. | 0401350080 | [4] | WASHER PLAIN | 0.0066(lbs); 0.003 |
| 014. | 3715031800 | [1] | ASSY SWITCH.MAIN | 0.4400(lbs); 0.200 |
| 015. | 3715031820 | [1] | SWITCH MAIN | 0.4180(lbs); 0.190 |
| 016. | 3715031810 | [1] | ASSY KEY MAIN SWITCH | 0.0440(lbs); 0.020 |
| 017. | 3415031830 | [1] | LABEL MAIN SWITCH 1 | 0.0022(lbs); 0.001 |
| 018. | 3415931840 | [1] | LABEL MAIN SWITCH 2 | 0.0022(lbs); 0.001 |
| 019. | 3715032200 | [1] | SWITCH STARTER | 0.6050(lbs); 0.275 |
| 020. | 3511032290 | [1] | LABEL STARTER SWITCH | 0.0022(lbs); 0.001 |
| 021. | 3715032240 | [1] | SWITCH SAFETY STARTE | 0.2640(lbs); 0.120 |
| 022. | 3715034563 | [1] | LEVER SWITCH | 0.0990(lbs); 0.045 |
| 023. | 0112050820 | [1] | BOLT | 0.0000(lbs); 0.000 |
| 024. | 3415035250 | [1] | LABEL OIL FILTER | ; <=10795 0.0022(lbs); 0.001 |
| 024. | 3511035250 | [1] | LABEL OIL FILTER | ; =>50001 0.0110(lbs); 0.005 |
| 025. | 0195250830 | [1] | BOLT WELD | 0.0308(lbs); 0.014 |
| 026. | 0211250080 | [1] | NUT | 0.0066(lbs); 0.003 |
| 027. | 3715032210 | [1] | ASSY KNOB | 0.0440(lbs); 0.020 |
| 028. | 1522165950 | [1] | INDICATER GLOW PLUG | 0.1144(lbs); 0.052 |
| 029. | 0305450510 | [2] | SCREW PAN HEAD | 0.0066(lbs); 0.003 |
| 030. | 0451250050 | [2] | WASHER SPRING | 0.0022(lbs); 0.001 |
| 031. | 0205450050 | [2] | NUT | 0.0044(lbs); 0.002 |
| 032. | 3511032420 | [2] | PLUG | 0.0044(lbs); 0.002 |
| 033. | 3715031910 | [1] | NUT RING | 0.6600(lbs); 0.300 |
| 034. | 3715031920 | [1] | GASKET | 0.0022(lbs); 0.001 |
| 035. | 6671155290 | [1] | ASSY LAMP | ONLY AMERICA 0.0352(lbs); 0.016 |
| 036. | 3415034590 | [1] | BULB | ONLY AMERICA 0.0022(lbs); 0.001 |
| 037. | 5472141300 | [1] | ASSY SWITCH | ONLY AMERICA 0.0660(lbs); 0.030 |
| 038. | 5472141300 | [1] | BODY SWITCH | ONLY AMERICA 0.0660(lbs); 0.030 |
| 039. | 5472122330 | [1] | CAP | ONLY AMERICA 0.0044(lbs); 0.002 |
| 040. | 5472122340 | [1] | LABEL | ONLY AMERICA 0.0066(lbs); 0.003 |
| 041. | 3532031840 | [1] | LABEL | ONLY AMERICA 0.0110(lbs); 0.005 |
