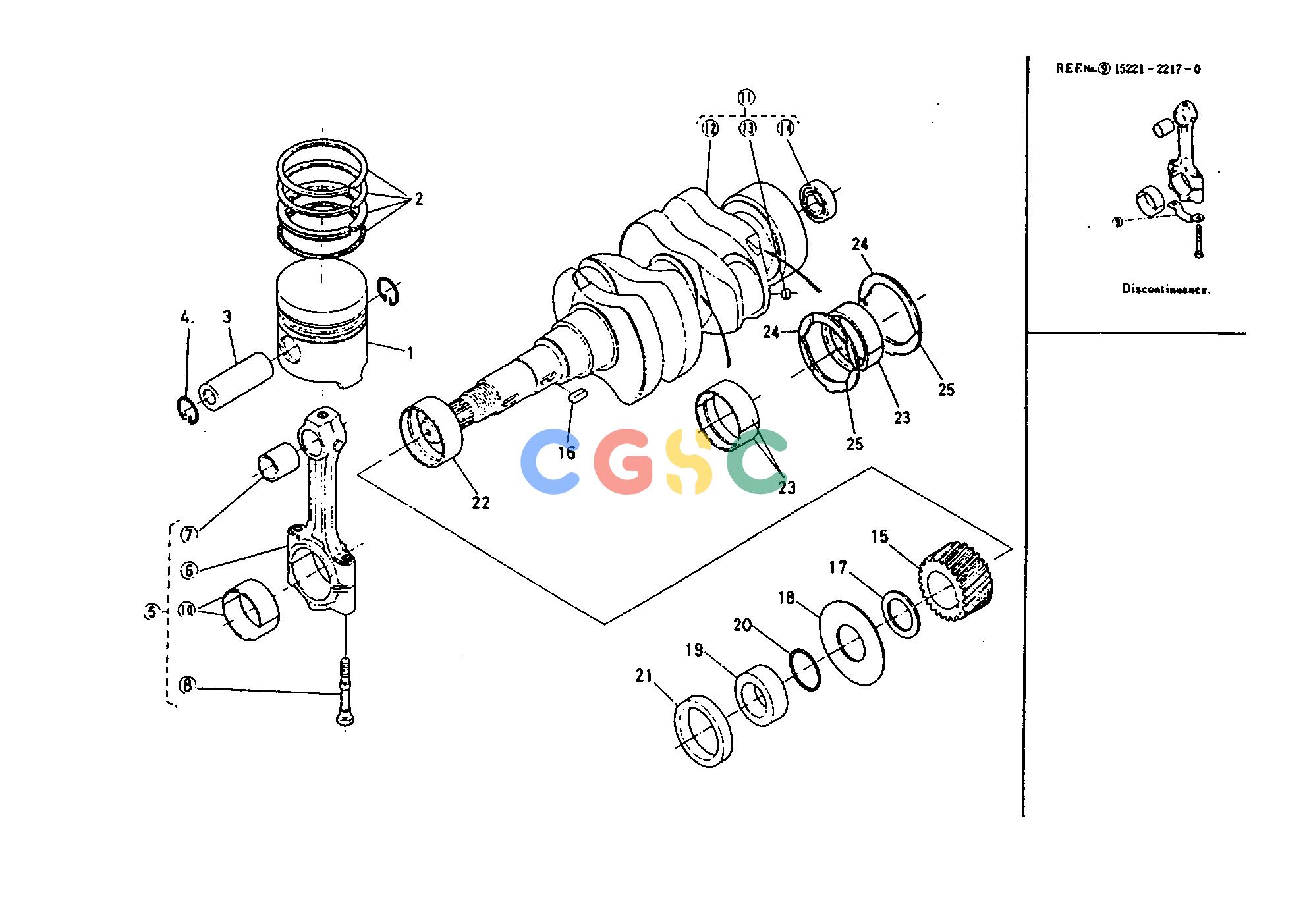

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 1522121110 | [2] | PISTON | STD 1.0010(lbs); 0.455 |
| 001. | 1522121910 | [2] | PISTON | +0.5 0.9944(lbs); 0.452 |
| 002. | 1522121050 | [2] | ASSY PISTON RING | STD 0.1100(lbs); 0.050 |
| 002. | 1522121090 | [2] | ASSY PISTON RING | +0.5 0.1056(lbs); 0.048 |
| 003. | 1522121310 | [2] | PISTON PIN | 0.0000(lbs); 0.000 |
| 003. | 1552121310 | [2] | PISTON PIN | ; =>1001 0.3432(lbs); 0.156 |
| 004. | 1522121330 | [4] | CIR-CLIP PISTON PIN | 0.0044(lbs); 0.002 |
| 005. | 1522122010 | [2] | ASSY CONNECTING ROD | 0.0000(lbs); 0.000 |
| 005. | 1552122010 | [2] | ASSY CONNECTING ROD | ; =>1001 0.0000(lbs); 0.000 |
| 007. | 1522121980 | [1] | BUSH PISTON PIN | 0.0000(lbs); 0.000 |
| 008. | 1522122140 | [2] | BOLT CONNECTING ROD | 0.0000(lbs); 0.000 |
| 008. | 1552122140 | [2] | BOLT CONNECTING ROD | ; =>1001 0.0000(lbs); 0.000 |
| 009. | 1522122170 | [1] | WASHER ROD BOLT | ; <=8948 0.0220(lbs); 0.010 |
| 010. | 1522122310 | [2] | METAL CRANK PIN | STD 0.0000(lbs); 0.000 |
| 010. | 1522122970 | [2] | METAL CRANK PIN | -0.2 0.0880(lbs); 0.040 |
| 010. | 1522122980 | [2] | METAL CRANK PIN | -0.4 0.0880(lbs); 0.040 |
| 011. | 1529123012 | [1] | ASSY CRANK SHAFT | 22.2200(lbs); 10.100 |
| 013. | 1513101380 | [2] | PLUG PIN | 0.0022(lbs); 0.001 |
| 013. | 1522133630 | [2] | PLUG PIN | 0.0022(lbs); 0.001 |
| 014. | 0812106002 | [1] | BEARING BALL (6002ZZ | 0.0660(lbs); 0.030 |
| 015. | 1522124110 | [1] | GEAR CRANK SHAFT | ; <=8948 0.0000(lbs); 0.000 |
| 015. | 1552124110 | [1] | GEAR CRANK SHAFT | ; =>8949 0.7480(lbs); 0.340 |
| 015. | 1552124114 | [1] | GEAR CRANK SHAFT | 0.0000(lbs); 0.000 |
| 016. | 0571200720 | [1] | KEY FEATHER | 0.0176(lbs); 0.008 |
| 017. | 1522124130 | [1] | COLLAR CRANK-GEAR | 0.0330(lbs); 0.015 |
| 018. | 1522123310 | [1] | OIL SLINGER | 0.0000(lbs); 0.000 |
| 019. | 1522123250 | [1] | COLLAR CRANK SHAFT | 0.0000(lbs); 0.000 |
| 020. | 0481110300 | [1] | O RING | 0.0022(lbs); 0.001 |
| 021. | 0955000001 | [1] | SEAL OIL | 0.0330(lbs); 0.015 |
| 022. | 1522123470 | [1] | METAL CRANKSHAFT | STD 0.0000(lbs); 0.000 |
| 022. | 1522123910 | [1] | METAL CRANKSHAFT | -0.2 0.1276(lbs); 0.058 |
| 022. | 1522123920 | [1] | METAL CRANKSHAFT | -0.4 0.0000(lbs); 0.000 |
| 023. | 1522123481 | [4] | METAL CRANKSHAFT | STD 0.0000(lbs); 0.000 |
| 023. | 1522123930 | [4] | METAL CRANKSHAFT | -0.2 0.1210(lbs); 0.055 |
| 023. | 1522123940 | [4] | METAL CRANKSHAFT | -0.4 0.1232(lbs); 0.056 |
| 024. | 1522123530 | [2] | METAL SIDE | 0.0000(lbs); 0.000 |
| 024. | 1552123530 | [2] | METAL SIDE | STD; =>1001 0.0220(lbs); 0.010 |
| 024. | 1522123950 | [2] | METAL SIDE | +0.2 0.0198(lbs); 0.009 |
| 024. | 1522123960 | [2] | METAL SIDE | +0.4 0.0198(lbs); 0.009 |
| 025. | 1522123540 | [2] | METAL SIDE | 0.0000(lbs); 0.000 |
| 025. | 1552123540 | [2] | METAL SIDE | STD; =>1001 0.0000(lbs); 0.000 |
| 025. | 1522123970 | [2] | METAL SIDE | +0.2 0.0198(lbs); 0.009 |
| 025. | 1522123980 | [2] | METAL SIDE | +0.4 0.0198(lbs); 0.009 |
