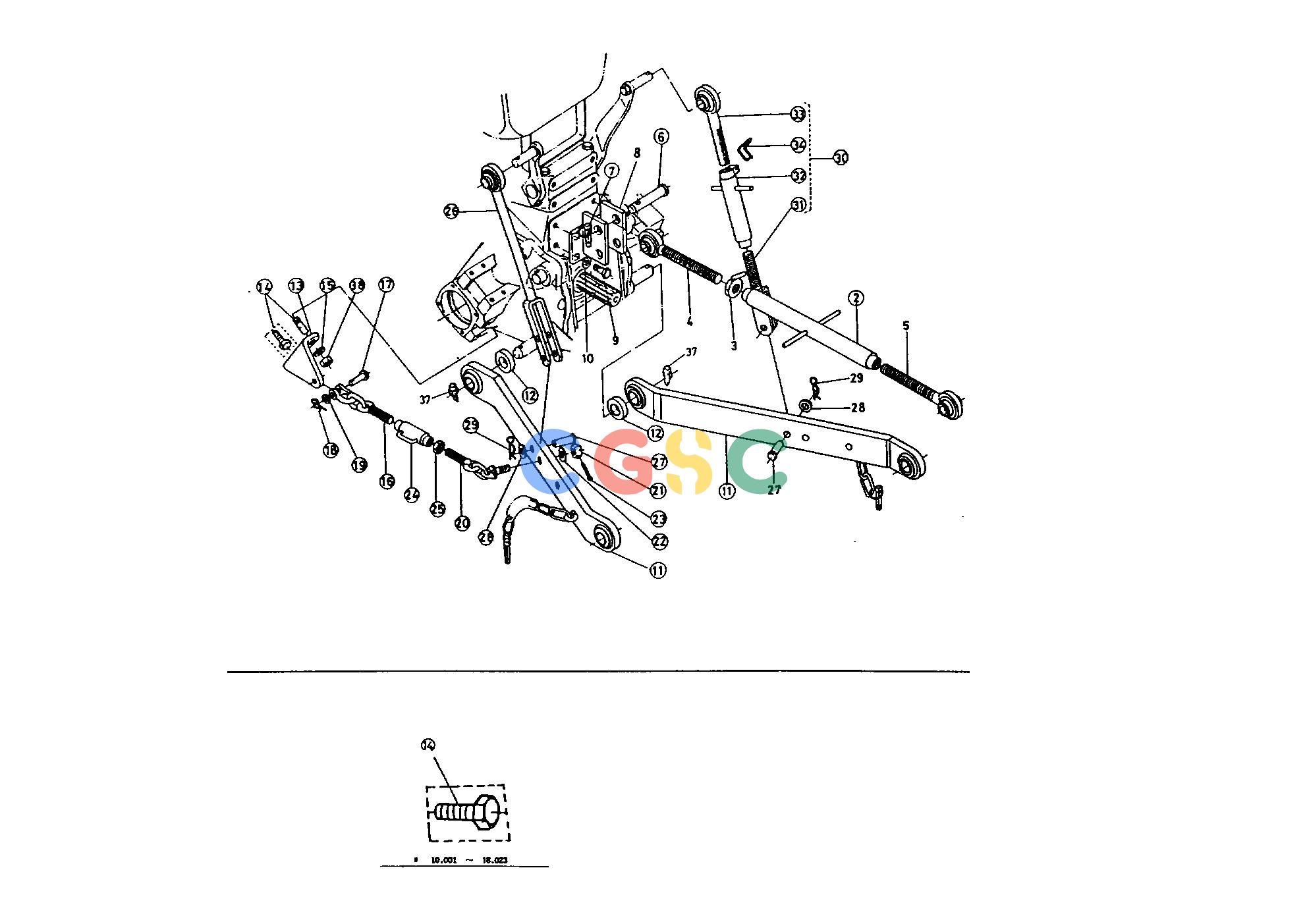

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 9951122000 | [1] | ASSY LINKAGE 3-POINT | ; <=18023 50.6000(lbs); 23.000 |
| 001. | 9952122005 | [1] | ASSY LINKAGE 3-POINT | ; =>18024 0.0000(lbs); 0.000 |
| 002. | 9951122112 | [1] | LINK TOP | 0.0000(lbs); 0.000 |
| 003. | 9926122183 | [1] | NUT TOP LINK | 0.0000(lbs); 0.000 |
| 004. | 9926122213 | [1] | JOINT TOP LINK RH | 0.0000(lbs); 0.000 |
| 005. | 9926122223 | [1] | JOINT TOP LINK LH | 0.0000(lbs); 0.000 |
| 006. | 3115071364 | [2] | PIN TOP LINK | 0.0000(lbs); 0.000 |
| 007. | 3415037643 | [2] | ASSY PIN SET | ; <=15683 0.0000(lbs); 0.000 |
| 007. | 3415037644 | [2] | ASSY PIN SET | ; =>15684 0.0000(lbs); 0.000 |
| 008. | 9951122140 | [1] | HOLDER TOP LINK | 3.0800(lbs); 1.400 |
| 009. | 0117351228 | [4] | BOLT | 0.0792(lbs); 0.036 |
| 010. | 0451210120 | [4] | WASHER LOCK | 0.0000(lbs); 0.000 |
| 011. | 9951122318 | [2] | ASSY LINK LOWER | 0.0000(lbs); 0.000 |
| 012. | 9951122320 | [2] | COLLAR | 0.2420(lbs); 0.110 |
| 013. | 9951122913 | [2] | HOLDER CHECK CHAIN | 0.0000(lbs); 0.000 |
| 014. | 0117351432 | [4] | BOLT | ; <=18023 0.1166(lbs); 0.053 |
| 014. | 9951122920 | [4] | STUD | ; =>18024 0.1100(lbs); 0.050 |
| 015. | 0451210140 | [4] | WASHER LOCK | 0.0000(lbs); 0.000 |
| 016. | 9951122812 | [2] | CHAIN CHECK FRONT | 0.0000(lbs); 0.000 |
| 017. | 3122071884 | [2] | PIN | 0.0000(lbs); 0.000 |
| 018. | 0551511000 | [2] | PIN | 0.0000(lbs); 0.000 |
| 019. | 0401150100 | [2] | WASHER FLAT | 0.0044(lbs); 0.002 |
| 020. | 9951122822 | [2] | CHAIN CHECK REAR | 0.0000(lbs); 0.000 |
| 021. | 0237450140 | [2] | NUT SLOTTED | 0.0330(lbs); 0.015 |
| 022. | 0451250140 | [2] | WASHER LOCK | 0.0154(lbs); 0.007 |
| 023. | 0551100335 | [2] | PIN SPLIT | 0.0000(lbs); 0.000 |
| 024. | 9951122840 | [2] | TURN BUCKLE | 0.4180(lbs); 0.190 |
| 025. | 0205250140 | [2] | NUT | 0.0396(lbs); 0.018 |
| 026. | 9951122543 | [1] | ROD LIFT LH | 0.0000(lbs); 0.000 |
| 027. | 0511251440 | [2] | PIN JOINT | 0.1166(lbs); 0.053 |
| 028. | 0401150140 | [2] | WASHER FLAT | 0.0154(lbs); 0.007 |
| 029. | 0551601600 | [2] | PIN SNAP | 0.0000(lbs); 0.000 |
| 030. | 9951122512 | [2] | ASSY ROD LIFT RH | 0.0000(lbs); 0.000 |
| 031. | 9951122522 | [1] | ROD LIFT UNDER | 0.0000(lbs); 0.000 |
| 032. | 9951122532 | [1] | ROD LIFT INNER | ; <=11043 0.0000(lbs); 0.000 |
| 032. | 9951122533 | [1] | ROD LIFT INNER | ; =>11044 0.0000(lbs); 0.000 |
| 033. | 9951122553 | [1] | ROD LIFT UPPER | 0.0000(lbs); 0.000 |
| 034. | 9951122562 | [1] | SPRING | 0.0000(lbs); 0.000 |
| 035. | 9951122200 | [1] | ASSY LIFTROD LOWER L | 45.1000(lbs); 20.500 |
| 036. | 9951122100 | [1] | ASSY LINK TOP | 0.0000(lbs); 0.000 |
| 037. | 3415037643 | [2] | ASSY PIN SET | ; <=15683 0.0000(lbs); 0.000 |
| 037. | 3415037644 | [2] | ASSY PIN SET | ; =>15684 0.0000(lbs); 0.000 |
| 038. | 0217650140 | [2] | NUT | ; =>18024 0.0308(lbs); 0.014 |
