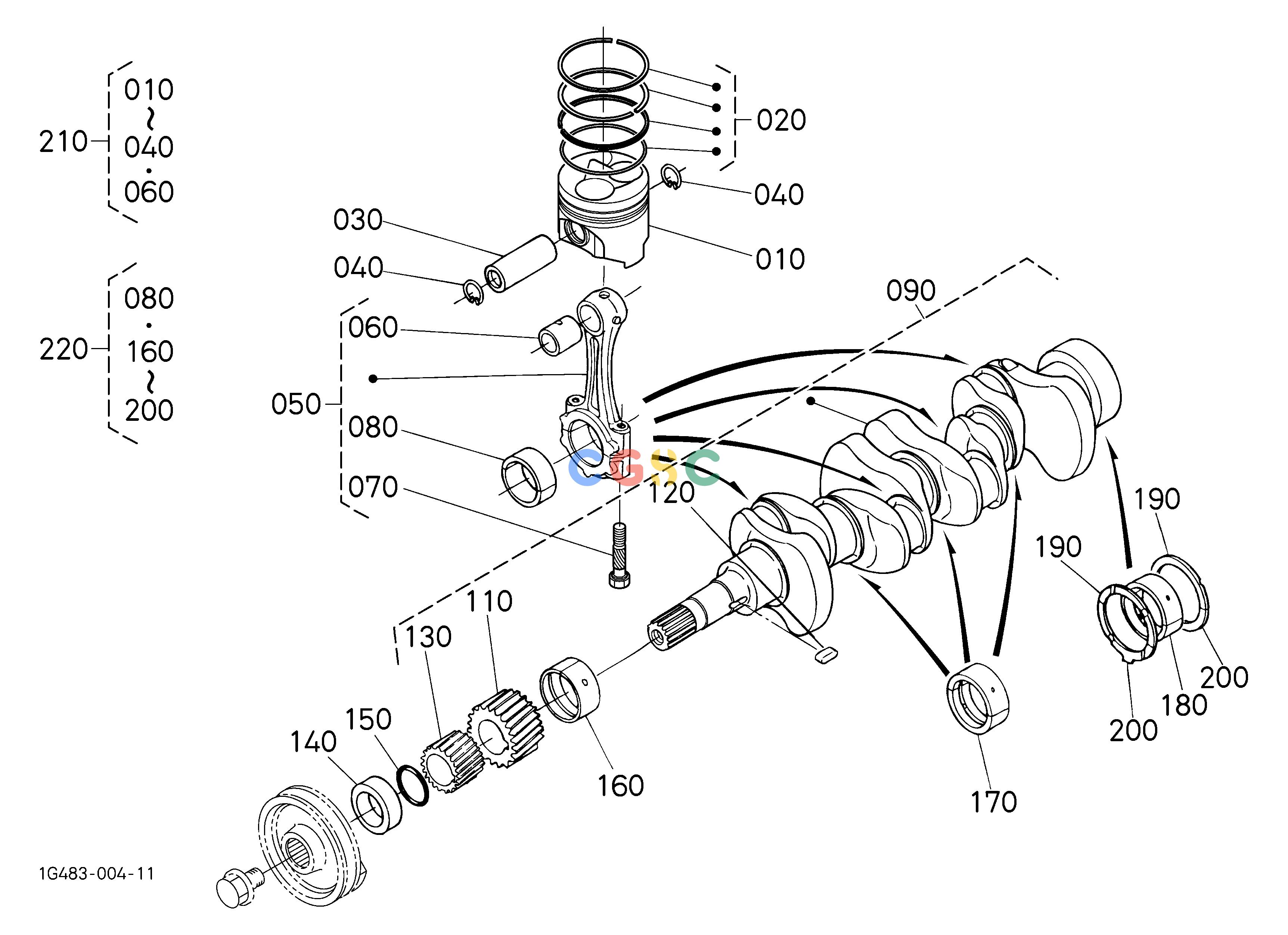

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 1606021114 | [4] | PISTON | STD 0.8800(lbs); 0.400 |
| 010. | 1606021914 | [4] | PISTON | +0.50mm 0.9130(lbs); 0.415 |
| 020. | 1629221050 | [4] | RING,PISTON,ASSY | STD 0.0022(lbs); 0.001 |
| 020. | 1629221090 | [4] | RING,PISTON,ASSY | +0.50mm 0.0308(lbs); 0.014 |
| 030. | 1624121310 | [4] | PIN,PISTON | 0.2970(lbs); 0.135 |
| 040. | 1624121330 | [8] | CIRCLIP(PIN,PISTON) | 0.0044(lbs); 0.002 |
| 050. | 1G70022010 | [4] | ROD,ASSY(CONNECTING) | 1.1440(lbs); 0.520 |
| 060. | 1G70021980 | [4] | BUSH,PISTON PIN | 0.0220(lbs); 0.010 |
| 070. | 1624122142 | [8] | BOLT(CONNECTING ROD) | 0.0528(lbs); 0.024 |
| 080. | 1624122310 | [4] | METAL,CRANKPIN | STD/SET 0.0836(lbs); 0.038 |
| 080. | 1624122970 | [4] | METAL,CRANKPIN | -0.20mm/SET 0.1760(lbs); 0.080 |
| 080. | 1624122980 | [4] | METAL,CRANKPIN | -0.40mm/SET 0.2200(lbs); 0.100 |
| 090. | 1A05523010 | [1] | COMP.CRANKSHAFT | ; <=8Z0171 23.2100(lbs); 10.550 |
| 090. | 1G08823010 | [1] | COMP.CRANKSHAFT | ORDER BY REF.No.090 NEW PART.; >=9C0001 22.7700(lbs); 10.350 |
| 090. | 1G08823012 | [1] | COMP.CRANKSHAFT | ; >=9W0001 22.7700(lbs); 10.350 |
| 110. | 1A05524110 | [1] | GEAR(CRANKSHAFT) | 0.3124(lbs); 0.142 |
| 120. | 1627195230 | [1] | KEY | 0.0110(lbs); 0.005 |
| 130. | 1624135630 | [1] | GEAR(OIL PUMP DRIVE) | 0.2244(lbs); 0.102 |
| 140. | 1627123250 | [1] | COLLAR,CRANKSHAFT | 0.1210(lbs); 0.055 |
| 150. | 0481410280 | [1] | RING | 0.0022(lbs); 0.001 |
| 160. | 1624123470 | [1] | METAL(CRANKSHAFT) | STD 0.1320(lbs); 0.060 |
| 160. | 1624123910 | [1] | METAL(CRANKSHAFT) | -0.20mm 0.0660(lbs); 0.030 |
| 160. | 1624123920 | [1] | METAL(CRANKSHAFT) | -0.40mm 0.1496(lbs); 0.068 |
| 170. | 1624123480 | [3] | METAL,CRANKSHAFT | STD/SET 0.1100(lbs); 0.050 |
| 170. | 1624123930 | [3] | METAL,CRANKSHAFT | -0.20mm/SET 0.2200(lbs); 0.100 |
| 170. | 1624123940 | [3] | METAL,CRANKSHAFT | -0.40mm/SET 0.1100(lbs); 0.050 |
| 180. | 1629223494 | [1] | METAL,CRANKSHAFT | STD/SET 0.1540(lbs); 0.070 |
| 180. | 1629223864 | [1] | METAL,CRANKSHAFT | -0.20mm/SET 0.1100(lbs); 0.050 |
| 180. | 1629223874 | [1] | METAL,CRANKSHAFT | -0.40mm/SET 0.1100(lbs); 0.050 |
| 190. | 1552123530 | [2] | METAL,SIDE | STD 0.0220(lbs); 0.010 |
| 190. | 1552123950 | [2] | METAL,SIDE | +0.20mm 0.0220(lbs); 0.010 |
| 190. | 1552123960 | [2] | METAL,SIDE | +0.40mm 0.0220(lbs); 0.010 |
| 200. | 1920223540 | [2] | METAL,SIDE | STD 0.0220(lbs); 0.010 |
| 200. | 1920223970 | [2] | METAL,SIDE | +0.20mm 0.0220(lbs); 0.010 |
| 200. | 1920223980 | [2] | METAL,SIDE | +0.40mm 0.0220(lbs); 0.010 |
| 210. | 1G06921775 | [4] | PISTON,KIT(STD) | STD 1.4300(lbs); 0.650 |
| 210. | 1G06921795 | [4] | PISTON,KIT(050) | +0.50mm 1.4300(lbs); 0.650 |
| 220. | 1G09023755 | [1] | METAL,KIT(ENGINE) | STD 0.8492(lbs); 0.386 |
| 220. | 1G09023765 | [1] | KIT METAL,ENGINE | -0.20mm/+0.20mm 1.1396(lbs); 0.518 |
| 220. | 1G09023775 | [1] | KIT METAL,ENGINE | -0.40mm/+0.40mm 1.2034(lbs); 0.547 |
