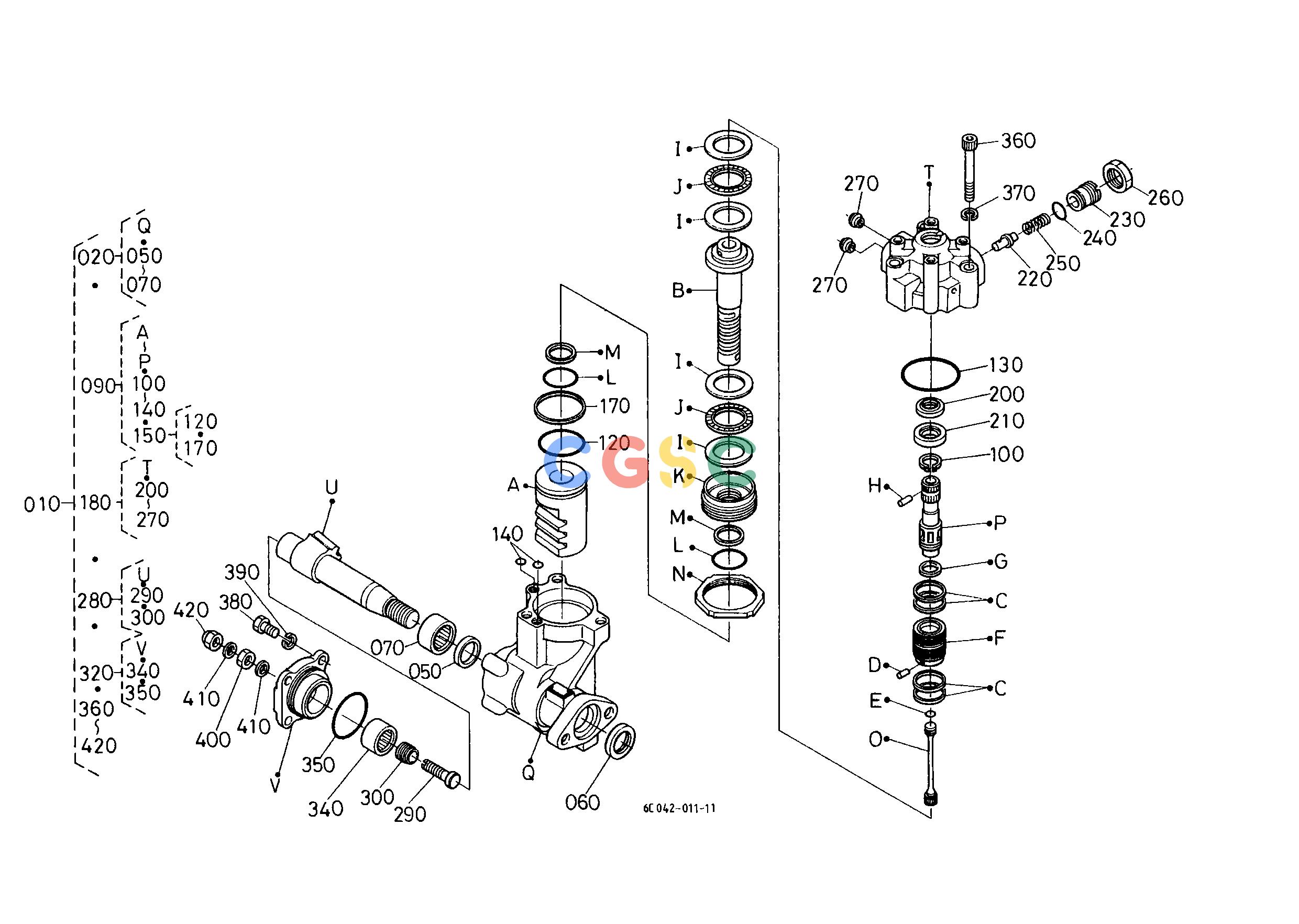

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C05241100 | [1] | ASSY STEERING POWER | 21.5600(lbs); 9.800 |
| 020. | 6C04241400 | [1] | ASSY CASE GEAR | 8.0080(lbs); 3.640 |
| 050. | 6C04241430 | [1] | GASKET | ; <=72904 0.0044(lbs); 0.002 |
| 050. | 6A10092020 | [1] | GASKET U | ; =>72905 0.0066(lbs); 0.003 |
| 060. | 6C04241450 | [1] | SEAL DUST | ; <=72904 0.0132(lbs); 0.006 |
| 060. | 6A10092040 | [1] | SEAL DUST | ; =>72905 0.0132(lbs); 0.006 |
| 070. | 6C04241440 | [1] | BEARING NEEDLE | ; <=72904 0.0990(lbs); 0.045 |
| 070. | 6A10092030 | [1] | BEARING BALL | ; =>72905 0.1100(lbs); 0.050 |
| 090. | 6C04241300 | [1] | ASSY NUT BALL | 4.7960(lbs); 2.180 |
| 100. | 6C04241810 | [1] | CIR CLIP EXTERNAL | ; <=72904 0.0022(lbs); 0.001 |
| 100. | 6A10092550 | [1] | RING SNAP | ; =>72905 0.0044(lbs); 0.002 |
| 120. | 0481650450 | [1] | O RING | 0.0022(lbs); 0.001 |
| 130. | 0481150650 | [1] | O RING | 0.0044(lbs); 0.002 |
| 140. | 0481700060 | [2] | O RING | 0.0044(lbs); 0.002 |
| 150. | 6C04241830 | [1] | ASSY SEAL BALL NUT | 0.0110(lbs); 0.005 |
| 170. | 6A10092630 | [1] | SEAL | ; =>72905 0.0044(lbs); 0.002 |
| 180. | 6C04241500 | [1] | ASSY VALVE | 4.3120(lbs); 1.960 |
| 200. | 6C04241520 | [1] | SEAL OIL | ; <=72904 0.0110(lbs); 0.005 |
| 200. | 6A10092220 | [1] | SEAL OIL | ; =>72905 0.0132(lbs); 0.006 |
| 210. | 6C04241530 | [1] | BEARING ROLLER | ; <=72904 0.0396(lbs); 0.018 |
| 210. | 6A10092230 | [1] | BEARING ROLLER | ; =>72905 0.0396(lbs); 0.018 |
| 220. | 3135166360 | [1] | POPPET | 0.0110(lbs); 0.005 |
| 230. | 3135166370 | [1] | SCREW ADJUSTING | 0.1034(lbs); 0.047 |
| 240. | 3135166390 | [1] | O RING | 0.0022(lbs); 0.001 |
| 250. | 3843066380 | [1] | SPRING | 0.0330(lbs); 0.015 |
| 260. | 3135166380 | [1] | NUT | 0.0484(lbs); 0.022 |
| 270. | 6C04241540 | [2] | FERRULE | 0.0088(lbs); 0.004 |
| 280. | 6C04241600 | [1] | ASSY SHAFT SECTOR | 2.2440(lbs); 1.020 |
| 290. | 3527016620 | [1] | SCREW ADJUSTING | 0.0616(lbs); 0.028 |
| 300. | 3527016630 | [1] | BOLT | 0.0242(lbs); 0.011 |
| 320. | 6C04241700 | [1] | ASSY COVER SIDE | ; <=72904 0.0000(lbs); 0.000 |
| 320. | 6A10092350 | [1] | ASSY COVER SIDE | ; =>72905 1.1880(lbs); 0.540 |
| 340. | 3527016420 | [1] | BEARING NEEDLE | 0.0990(lbs); 0.045 |
| 350. | 0481750500 | [1] | O RING | 0.0044(lbs); 0.002 |
| 360. | 6C04241850 | [3] | BOLT | 0.1100(lbs); 0.050 |
| 370. | 0451250100 | [3] | WASHER SPRING | 0.0066(lbs); 0.003 |
| 380. | 0115650825 | [4] | BOLT | ; <=72904 0.0286(lbs); 0.013 |
| 380. | 6A10092650 | [4] | BOLT | ; =>72905 0.0242(lbs); 0.011 |
| 390. | 0451260080 | [4] | WASHER SPRING | ; <=72904 0.0044(lbs); 0.002 |
| 390. | 6A10092660 | [4] | WASHER SPRING | ; =>72905 0.0044(lbs); 0.002 |
| 400. | 6636341250 | [1] | NUT | 0.0220(lbs); 0.010 |
| 410. | 3527016690 | [2] | GASKET | 0.0022(lbs); 0.001 |
| 420. | 3527016700 | [1] | NUT | 0.2420(lbs); 0.110 |
