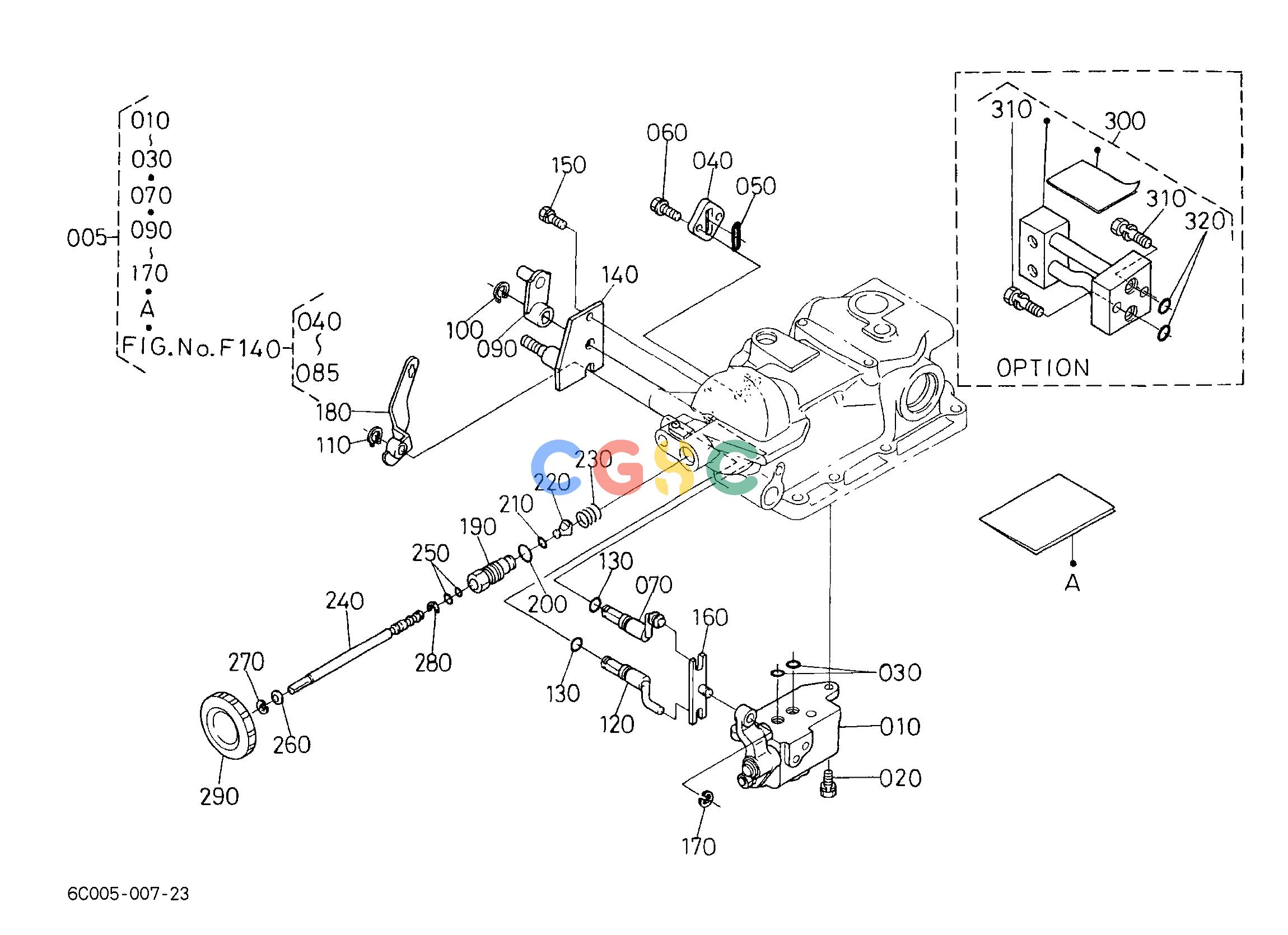

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 005. | 6C04093300 | [1] | KIT VALVE,CONTROL | 5.2800(lbs); 2.400 |
| 010. | 6C04036200 | [1] | ASSY VALVE,CONTROL | ; <=50442 2.7060(lbs); 1.230 |
| 010. | 6C04036203 | [1] | ASSY VALVE,CONTROL | ; >=50443 0.0000(lbs); 0.000 |
| 010. | 6C04036204 | [1] | ASSY VALVE,CONTROL | ; >=50869 2.8820(lbs); 1.310 |
| 020. | 0112350822 | [2] | BOLT,SEMS | 0.0264(lbs); 0.012 |
| 030. | 0481600080 | [2] | O RING | ; <=50868 0.0044(lbs); 0.002 |
| 030. | 0481700100 | [2] | O RING | ; >=50869 0.0022(lbs); 0.001 |
| 040. | 6C04036620 | [1] | CAP | 0.0484(lbs); 0.022 |
| 050. | 3741036630 | [1] | O RING | 0.0022(lbs); 0.001 |
| 060. | 0175450820 | [2] | BOLT,FLANGE | 0.0330(lbs); 0.015 |
| 070. | 6C04036930 | [1] | SHAFT,CONTROL LEVER | ; <=50442 0.1276(lbs); 0.058 |
| 070. | 6C04036932 | [1] | SHAFT,CONTROL LEVER | ; >=50443 0.0660(lbs); 0.030 |
| 090. | 6C04036990 | [1] | ARM,CONTROL LEVER | ; <=50442 0.0990(lbs); 0.045 |
| 090. | 6C04036993 | [1] | ARM,CONTROL LEVER | ; >=50443 0.1100(lbs); 0.050 |
| 100. | 0401550080 | [1] | WASHER,PLAIN | ; <=50442 0.0220(lbs); 0.010 |
| 100. | 0461200100 | [1] | CIR-CLIP,EXTERNAL | ; >=50443 0.0022(lbs); 0.001 |
| 110. | 6795059140 | [1] | U-NUT | ; <=50442 0.0220(lbs); 0.010 |
| 110. | 0461200120 | [1] | CIR-CLIP EXTERNAL | ; >=50443 0.0022(lbs); 0.001 |
| 120. | 6C04036970 | [1] | SHAFT,FEED BACK | ; <=50442 0.1716(lbs); 0.078 |
| 120. | 6C04036972 | [1] | SHAFT,FEED BACK | ; >=50443 0.1320(lbs); 0.060 |
| 130. | 0481600110 | [2] | O RING | 0.0022(lbs); 0.001 |
| 140. | 6C04036960 | [1] | PLATE | ; <=50442 0.0902(lbs); 0.041 |
| 140. | 6C04036962 | [1] | PLATE | ; >=50443 0.3080(lbs); 0.140 |
| 150. | 0112350816 | [1] | BOLT,SEMS | 0.0242(lbs); 0.011 |
| 160. | 6C04036940 | [1] | LINK | 0.1100(lbs); 0.050 |
| 170. | 0461350060 | [1] | CIR-CLIP, EXTERNAL | 0.0022(lbs); 0.001 |
| 180. | 6C04036950 | [1] | ARM,FEED BACK | 0.2024(lbs); 0.092 |
| 190. | 6C04037210 | [1] | BODY | 0.1694(lbs); 0.077 |
| 200. | 0481600180 | [1] | O RING | 0.0044(lbs); 0.002 |
| 210. | 0481606120 | [1] | O RING | 0.0044(lbs); 0.002 |
| 220. | 6C04037250 | [1] | POPPET | 0.0132(lbs); 0.006 |
| 230. | 6C04037430 | [1] | SPRING | 0.0044(lbs); 0.002 |
| 240. | 6C04037220 | [1] | SHAFT,HYD.ADJUST | 0.2420(lbs); 0.110 |
| 250. | 0481700080 | [2] | O RING | 0.0022(lbs); 0.001 |
| 260. | 6C04037420 | [1] | COLLAR | 0.0022(lbs); 0.001 |
| 270. | 0461100170 | [1] | CIR-CLIP,INTERNAL | 0.0022(lbs); 0.001 |
| 280. | 6C04037410 | [1] | STOPPER | 0.0044(lbs); 0.002 |
| 290. | 3741036643 | [1] | GRIP | 0.0660(lbs); 0.030 |
| 300. | 6C04095100 | [1] | KIT COVER,HYD.OUTLET | OPTION 1.0010(lbs); 0.455 |
| 310. | 0112350830 | [2] | BOLT,SEMS | OPTION 0.0330(lbs); 0.015 |
| 320. | 0481700070 | [2] | O RING | OPTION 0.0022(lbs); 0.001 |
