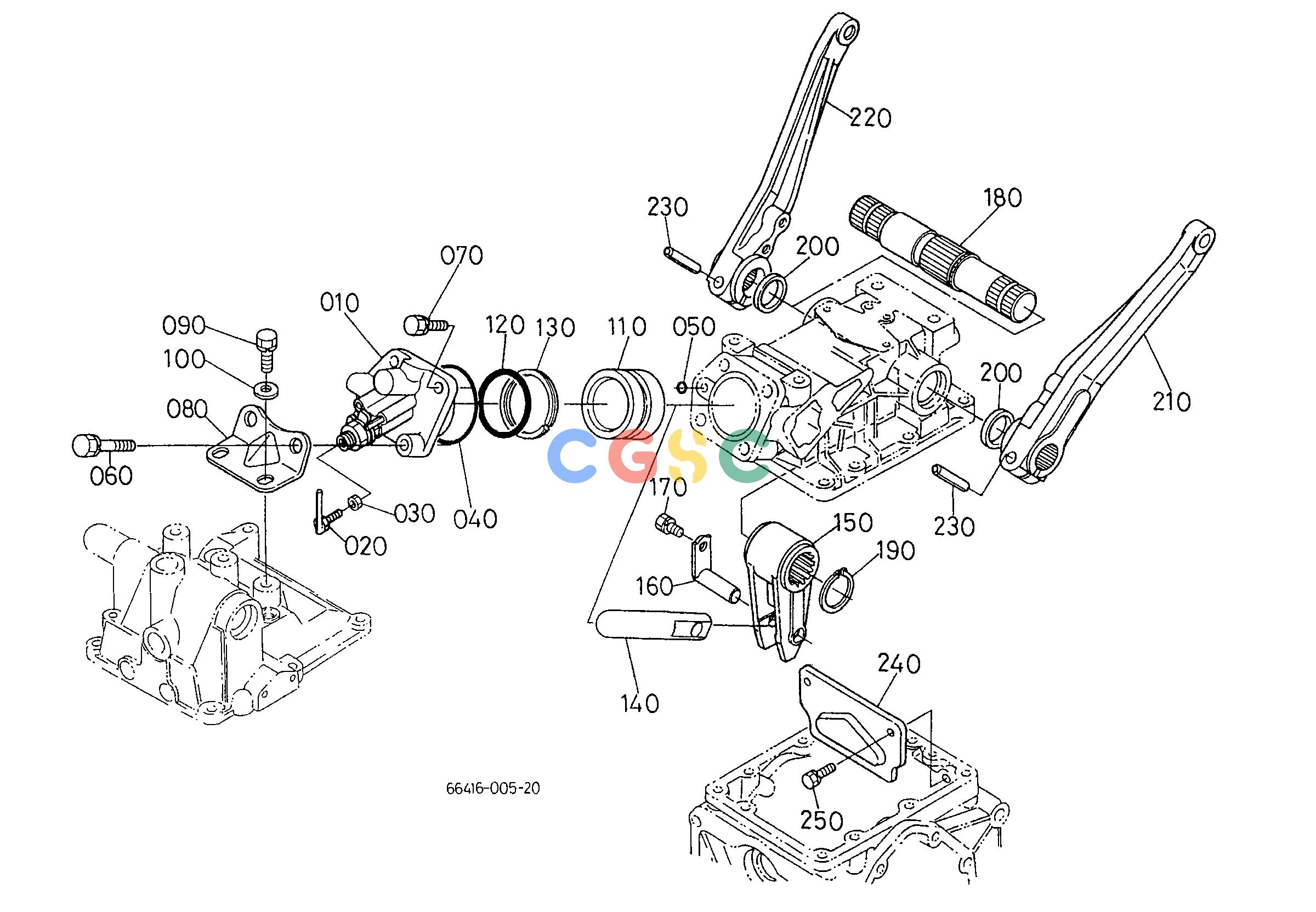

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6641636400 | [1] | ASSY CAP CYLINDER | ; <=52016 3.6520(lbs); 1.660 |
| 010. | 6641636405 | [1] | ASSY CAP CYLINDER | ; =>52017 3.7840(lbs); 1.720 |
| 010. | 6641636900 | [1] | ASSY CAP CYLINDER | ; =>52491 3.7400(lbs); 1.700 |
| 020. | 6641636220 | [1] | STOPPER | ; <=51772 0.0770(lbs); 0.035 |
| 020. | 6641636222 | [1] | STOPPER | ; =>51773 0.0660(lbs); 0.030 |
| 020. | 6641636240 | [1] | LEVER HYD.LOCK | ; =>52017 0.0660(lbs); 0.030 |
| 020. | 6641636242 | [1] | LEVER HYD.LOCK | ; =>52491 0.0880(lbs); 0.040 |
| 030. | 0541100440 | [1] | PIN SPRING | ; <=52016 0.0044(lbs); 0.002 |
| 030. | 0211450080 | [2] | NUT | ; =>52017 0.0110(lbs); 0.005 |
| 030. | 0211650100 | [1] | NUT | ; =>52491 0.0088(lbs); 0.004 |
| 040. | 0481050600 | [1] | RING | 0.0044(lbs); 0.002 |
| 050. | 0481005110 | [1] | O RING | 0.0022(lbs); 0.001 |
| 060. | 0112351250 | [2] | BOLT | 0.1210(lbs); 0.055 |
| 070. | 6671136440 | [2] | BOLT | ; <=52016 0.0990(lbs); 0.045 |
| 070. | 0112351240 | [2] | BOLT | ; =>52017 0.1056(lbs); 0.048 |
| 080. | 6641736310 | [1] | STAY | ; <=52039 0.0000(lbs); 0.000 |
| 080. | 6641736312 | [1] | STAY | ; =>52040 0.2200(lbs); 0.100 |
| 090. | 0112351025 | [2] | BOLT | 0.0440(lbs); 0.020 |
| 100. | 0401350100 | [2] | WASHER PLAIN | 0.0088(lbs); 0.004 |
| 110. | 6715636410 | [1] | PISTON HYD. | 1.3860(lbs); 0.630 |
| 120. | 0481000550 | [1] | RING | 0.0176(lbs); 0.008 |
| 130. | 6715636420 | [1] | RING BACK UP | ; <=51383 0.0088(lbs); 0.004 |
| 130. | 6877321560 | [1] | RING BACK UP | ; =>51384 0.0110(lbs); 0.005 |
| 140. | 6715636430 | [1] | ROD HYD.PISTON | 1.0120(lbs); 0.460 |
| 150. | 6641636450 | [1] | ARM HYDRAULIC | 1.7600(lbs); 0.800 |
| 160. | 6715636460 | [1] | PIN HYD.ARM | 0.1980(lbs); 0.090 |
| 170. | 0112350818 | [1] | BOLT | 0.0264(lbs); 0.012 |
| 180. | 6641636470 | [1] | SHAFT HYD.ARM | ; <=52016 0.0000(lbs); 0.000 |
| 180. | 6641636472 | [1] | SHAFT HYD.ARM | ; =>52017 2.9700(lbs); 1.350 |
| 190. | 0461200320 | [1] | CIRCLIP EXTERNAL | 0.0088(lbs); 0.004 |
| 200. | 0923030456 | [2] | SEAL OIL | 0.0242(lbs); 0.011 |
| 210. | 6641636512 | [1] | ARM LIFT LH | ; <=52001 0.0000(lbs); 0.000 |
| 210. | 6795036510 | [1] | ARM LIFT LH | ; =>52002 3.8720(lbs); 1.760 |
| 210. | 6795036515 | [1] | ARM LIFT LH | ; =>52032 3.5640(lbs); 1.620 |
| 220. | 6641636522 | [1] | ARM LIFT RH | ; <=52001 0.0000(lbs); 0.000 |
| 220. | 6795036520 | [1] | ARM LIFT RH | ; =>52002 3.5640(lbs); 1.620 |
| 220. | 6795036525 | [1] | ARM LIFT RH | ; =>52032 3.7400(lbs); 1.700 |
| 230. | 0112351055 | [2] | BOLT | ; <=52031 0.0836(lbs); 0.038 |
| 230. | 0541101050 | [2] | PIN SPRING | ; =>52032 0.0418(lbs); 0.019 |
| 240. | 6662136750 | [1] | PLATE HYD.ARM | 0.7480(lbs); 0.340 |
| 250. | 6721136610 | [2] | BOLT | 0.0330(lbs); 0.015 |
