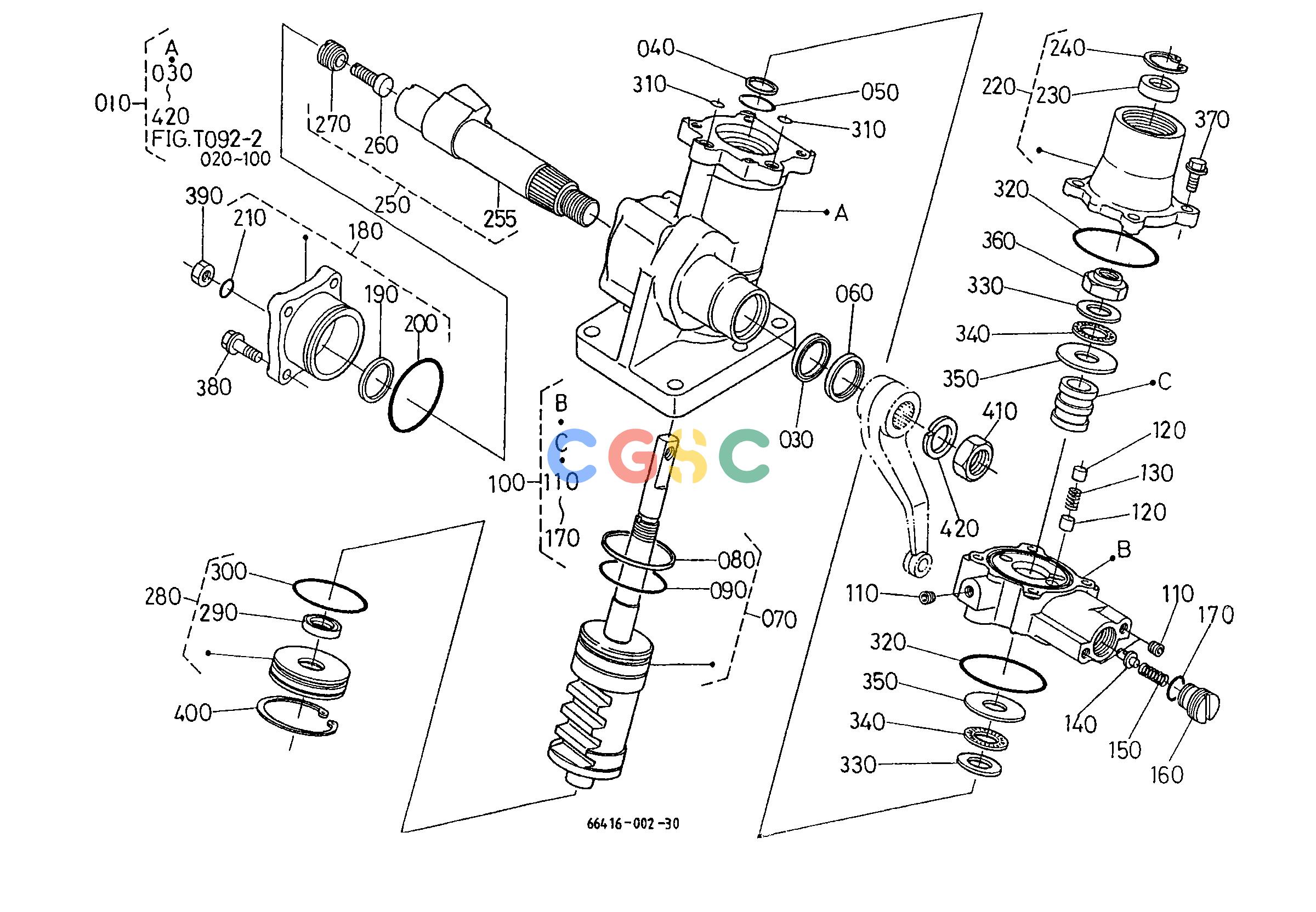

久保田零件查询T09302 POWER STEERING [COMPONENT PARTS] STEERINGEPC Kubota online

Pos.	Part No	Qty	Parts name	Comments
010.	6641666102	[1]	ASSY STEERING POWER	26.4000(lbs); 12.000
030.	3741066130	[1]	SEAL	0.0066(lbs); 0.003
040.	3741066140	[1]	SEALING	0.0022(lbs); 0.001
050.	3741066150	[1]	SEALING	0.0022(lbs); 0.001
060.	3741066160	[1]	SEAL DUST	0.0044(lbs); 0.002
070.	6641666200	[1]	ASSY NUT BALL	3.5200(lbs); 1.600
080.	3741066220	[1]	RING	0.0110(lbs); 0.005
090.	3741066230	[1]	O RING	0.0110(lbs); 0.005
100.	6641666300	[1]	ASSY VALVE	3.3440(lbs); 1.520
110.	1526196010	[4]	PLUG	0.0044(lbs); 0.002
120.	3741066350	[4]	PISTON	0.0220(lbs); 0.010
130.	3741066360	[2]	SPRING	0.0880(lbs); 0.040
140.	3139166370	[1]	POPPET	0.0022(lbs); 0.001
150.	3139166380	[1]	SPRING VALVE	0.0330(lbs); 0.015
160.	3741066370	[1]	SCREW ADJUSTING	0.0880(lbs); 0.040
170.	3741066380	[1]	SEALING	0.0022(lbs); 0.001
180.	3741066400	[1]	ASSY COVER SIDE	1.2210(lbs); 0.555
190.	3741066420	[1]	SEAL	0.0440(lbs); 0.020
200.	3741066430	[1]	SEALING	0.0110(lbs); 0.005
210.	3741066440	[1]	SEALING	0.0022(lbs); 0.001
220.	6641666500	[1]	ASSY COVER TOP	1.7600(lbs); 0.800
230.	3741066520	[1]	SEAL OIL	0.0220(lbs); 0.010
240.	0461100300	[1]	CIR CLIP INTERNAL	0.0088(lbs); 0.004
250.	3741066600	[1]	ASSY SHAFT SECTOR	2.0570(lbs); 0.935
255.	3741066610	[1]	SHAFT SECTOR	1.9800(lbs); 0.900
260.	3415016430	[1]	SCREW ADJUSTING	0.0572(lbs); 0.026
270.	3741066620	[1]	ADJUSTER	0.0220(lbs); 0.010
280.	3741066700	[1]	ASSY COVER END	0.4840(lbs); 0.220
290.	3741066720	[1]	SEAL	0.0110(lbs); 0.005
300.	3741066730	[1]	SEALING	0.0110(lbs); 0.005
310.	3741066810	[2]	SEALING	0.0110(lbs); 0.005
320.	3741066820	[2]	SEALING	0.0110(lbs); 0.005
330.	3741066830	[2]	RING DRIVE	0.0220(lbs); 0.010
340.	3741066840	[2]	BEARING NEEDLE	0.0110(lbs); 0.005
350.	3741066850	[2]	COLLAR THRUST	0.0880(lbs); 0.040
360.	3741066860	[1]	NUT SELF-LOCKING	0.0594(lbs); 0.027
370.	0175450855	[4]	BOLT FLANGE	0.0440(lbs); 0.020
380.	0175450820	[4]	BOLT FLANGE	0.0330(lbs); 0.015
390.	0201650100	[1]	NUT	0.0198(lbs); 0.009
400.	0461100580	[1]	CIR CLIP INTERNAL	0.0110(lbs); 0.005
410.	0217450220	[1]	NUT	0.1210(lbs); 0.055
420.	0451250220	[1]	WASHER SPRING	0.0550(lbs); 0.025
