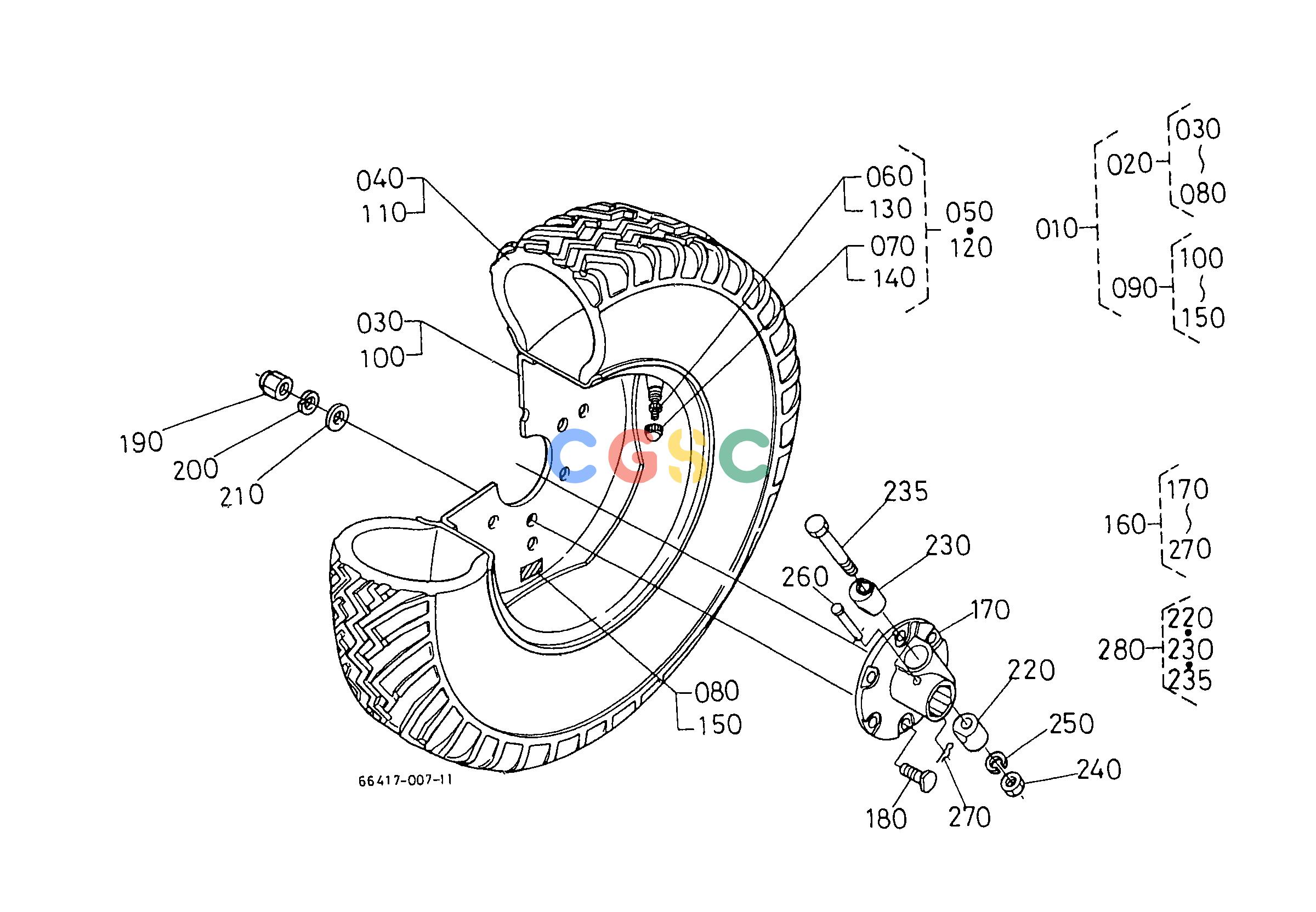

久保田零件查询T06906 REAR WHEEL (31 X 13.5-15 BAR) [A] REAR AXLE/REAR WHEELEPC Kubota online

Pos.	Part No	Qty	Parts name	Comments
010.	6641517700	[1]	ASSY REAR WHEEL	0.0000(lbs); 0.000
020.	6641517710	[1]	ASSY REAR WHEEL LH	0.0000(lbs); 0.000
030.	6641617720	[1]	WHEEL	29.7000(lbs); 13.500
040.	6641517720	[1]	TIRE	0.0000(lbs); 0.000
050.	3415911850	[1]	VALVE TIRE	0.0286(lbs); 0.013
060.	3215027740	[1]	CORE VALVE	0.0066(lbs); 0.003
070.	3824011690	[1]	CAP VALVE	0.0044(lbs); 0.002
080.	6641517730	[1]	LABEL TIRE LH	0.0000(lbs); 0.000
090.	6641517740	[1]	ASSY REAR WHEEL RH	0.0000(lbs); 0.000
100.	6641617720	[1]	WHEEL	29.7000(lbs); 13.500
110.	6641517720	[1]	TIRE	0.0000(lbs); 0.000
120.	3415911850	[1]	VALVE TIRE	0.0286(lbs); 0.013
130.	3215027740	[1]	CORE VALVE	0.0066(lbs); 0.003
140.	3824011690	[1]	CAP VALVE	0.0044(lbs); 0.002
150.	6641517750	[1]	LABEL TIRE RH	0.0000(lbs); 0.000
160.	6641617300	[2]	ASSY HUB WHEEL	; <=51772 0.0000(lbs); 0.000
160.	6642617300	[2]	ASSY HUB WHEEL	; =>51773 0.0000(lbs); 0.000
160.	6642617303	[2]	ASSY HUB WHEEL	; =>52526 8.9320(lbs); 4.060
160.	H664017300	[2]	ASSY HUB WHEEL	; =>52526 8.9320(lbs); 4.060
170.	6740117450	[2]	HUB WHEEL	; <=52525 0.0000(lbs); 0.000
170.	6740117453	[2]	HUB WHEEL	; =>52526 6.1160(lbs); 2.780
180.	6670417313	[12]	BOLT	0.1078(lbs); 0.049
190.	0207450140	[12]	NUT	; <=51772 0.0462(lbs); 0.021
190.	3534011390	[12]	NUT	; =>51773 0.0660(lbs); 0.030
200.	0451250140	[12]	WASHER SPRING	0.0154(lbs); 0.007
210.	0401360140	[12]	WASHER PLAIN	0.0220(lbs); 0.010
220.	6740117460	[2]	SHOE	NOT SALE ORDER BY REF.NO.320; <=52525 0.5632(lbs); 0.256
220.	6740117462	[2]	SHOE	; =>52526 0.4840(lbs); 0.220
230.	6740117470	[2]	SHOE	NOT SALE ORDER BY REF.NO.320; <=52525 1.0472(lbs); 0.476
230.	6740117472	[2]	SHOE	; =>52526 0.4620(lbs); 0.210
230.	H674017470	[2]	SHOE	; =>52526 0.4620(lbs); 0.210
235.	0117351604	[2]	BOLT	; =>52526 0.4290(lbs); 0.195
240.	0217450160	[2]	NUT	0.0484(lbs); 0.022
250.	0451260160	[2]	WASHER SPRING	0.0220(lbs); 0.010
260.	6373317270	[2]	PIN WHEEL TUBE	0.1100(lbs); 0.050
270.	6213117290	[2]	PIN	0.0088(lbs); 0.004
280.	6641687400	[2]	KIT COTTER	SERVICE PARTS 1.3640(lbs); 0.620
280.	H664087400	[2]	KIT COTTER	SERVICE PARTS 1.3640(lbs); 0.620
