| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

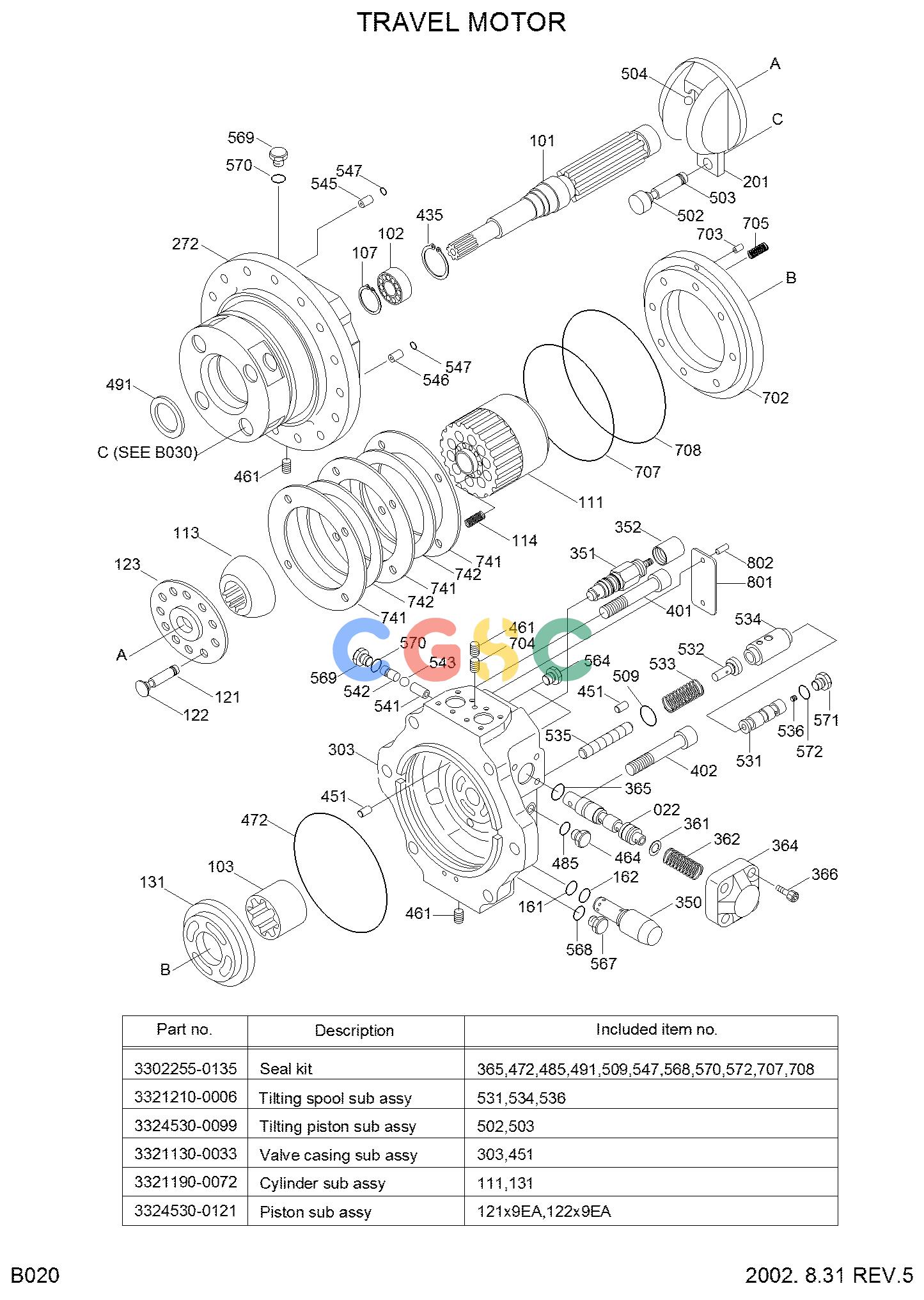

| *. | 31E9-00030 | [1] | TRAVEL MOTOR ASSY | |
| *-1. | 33822J-02D | [1] | TRAVEL MOTOR UNIT | |
| 022. | VZ03320-0258 | [1] | SPOOL-COUNT,B | |
| 101. | 3324250-0299 | [1] | SHAFT-DRIVE | |
| 102. | PNUP2210 | [1] | BEARING-ROLLER | |
| 103. | PNK365528 | [1] | BEARING-NEEDLE | |
| 107. | OSR50 | [1] | RING-SNAP | |
| N111. | 3324370-0204 | [1] | CYLINDER | |
| 113. | 3724610-0025 | [1] | BUSHING-SPHERICAL | |
| 114. | 2953802061 | [9] | SPRING-CYLINDER | |
| N121. | 371A00AA-121 | [9] | PISTON | |
| N122. | 3743700378 | [9] | SHOE | |
| 123. | 3724110-0005 | [1] | PLATE-SET | |
| 131. | 3724710-0021 | [1] | PLATE-VALVE | |
| 161. | OORBG30 | [2] | O-RING | |
| 162. | OT2BG30 | [2] | RING-BACK UP | |
| 201. | 3324150-0075 | [1] | PLATE-SWASH | |
| 272. | 3323190-0047 | [1] | CASING-K | |
| N303. | 3323230-0110 | [1] | CASING-VALVE,B | |
| 350. | V8911248179 | [2] | VALVE-RELIEF | |
| 351. | V9511178128 | [1] | VALVE-REDUCING | |
| 352. | VZ991-004 | [1] | COVER | |
| 361. | 5A250010-3310 | [2] | WASHER | |
| 362. | 3303340-1028 | [2] | SPRING-COUNT,B | |
| 364. | 3350800150 | [2] | COVER-C/BALANCE | |
| K365. | OORBG45 | [2] | O-RING | |
| 366. | OSBM1245 | [8] | BOLT-SOCKET | |
| 401. | OSBM20100 | [2] | BOLT-SOCKET | |
| 402. | OSBM2050 | [4] | SCREW-HEX | |
| 435. | ORR90 | [1] | RING-SNAP | |
| 451. | PJR1014 | [2] | PIN-2 | |
| 461. | PBP116-2403 | [13] | PLUG | |
| 464. | OVP12 | [2] | PLUG | |
| K472. | OORWG47 | [1] | O-RING | |
| K485. | OORBP18 | [2] | O-RING | |
| K491. | PTCV48V | [1] | SEAL-OIL | |
| N502. | 3324530-0098 | [1] | PISTON-TILTING | |
| N503. | 3324350-0011 | [1] | SHOE-TILTING | |
| 504. | 3324760-0008 | [2] | BALL | |
| K509. | OORBP16 | [1] | O-RING | |
| 531. | 3303320-1552 | [1] | SPOOL-TILTING | |
| 532. | 3303270-0212 | [1] | SEAT-SPRING | |
| 533. | 3303340-1029 | [1] | SPRING-TILTING,B | |
| 534. | 3303380-0127 | [1] | SLEEVE | |
| 534. | 3303380-0178 | [1] | SLEEVE | |
| 535. | 3324550-0036 | [1] | PISTON | |
| 536. | OSSSM45 | [1] | SCREW-HEX | |
| 541. | 3333180-0125 | [1] | SEAT-2 | |
| 542. | 2933260-0018 | [1] | STOPPER | |
| 543. | ODW732 | [1] | BALL-STEEL | |
| 545. | OTRS116A15 | [1] | ORIFICE | |
| 546. | OTRS116A10 | [1] | ORIFICE | |
| K547. | OORBP10 | [2] | O-RING | |
| 564. | OBP14 | [2] | PLUG | |
| 567. | OVP14 | [4] | PLUG | |
| K568. | OORBP11 | [4] | O-RING | |
| 569. | OROH14 | [2] | PLUG | |
| K570. | OORBP11 | [2] | O-RING | |
| 571. | OROMH22 | [1] | PLUG | |
| K572. | OORBP20 | [1] | O-RING | |
| 702. | 3324510-0016 | [1] | PISTON-BRAKE | |
| 703. | OTRM4406 | [1] | ORIFICE | |
| 704. | OTRM5510 | [1] | ORIFICE | |
| 705. | 3753700453 | [14] | SPRING-BRAKE | |
| K707. | OORWG44 | [1] | O-RING | |
| K708. | OORWG49 | [1] | O-RING | |
| 741. | 3743700413 | [3] | PLATE | |
| 742. | 3743700449 | [2] | PLATE | |
| 801. | PNPA-2550A | [1] | PLATE-NAME | |
| 802. | OSK2548 | [2] | PIN | |
| N*-2. | 3550D-01A | [1] | T/REDUCTION GEAR | SEE B030 |
| K. | 3302255-0135 | [1] | SEAL KIT(365-708) | |
| S. | 3321210-0006 | [1] | TILTING SPOOL SUB | |
| S. | 3324530-0099 | [1] | TILTING PISTON SUB | |
| S. | 3321130-0033 | [1] | VALVE CASING SUB | |
| S. | 3321190-0072 | [1] | CYLINDER SUB | |
| S. | 3324530-0121 | [1] | PISTON SUB | |
| N. | @ | [1] | NOT INDIVIDUALLY SUPPLIED |
