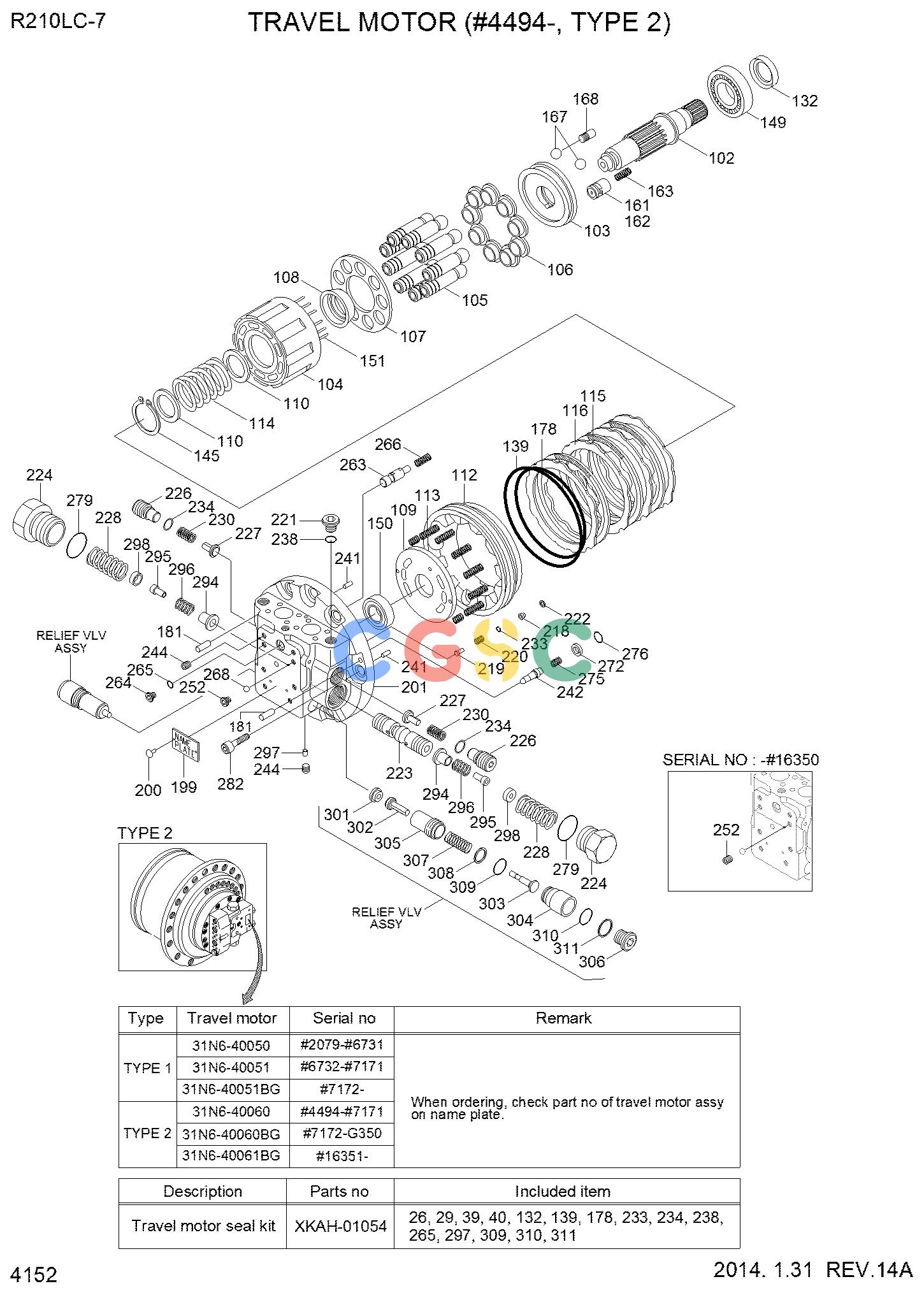

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | 31N6-40060 | [1] | TRAVEL MOTOR ASSY | |
| *. | 31N6-40060BG | [1] | TRAVEL MOTOR ASSY | |
| N*-1. | XKAH-01043 | [1] | MOTOR DEVICE | |
| *-11. | XKAH-00891 | [1] | C/BLOCK & PISTON KIT | |
| 104. | XKAH-01044 | [2] | BLOCK-CYLINDER | |
| 110. | XKAH-00407 | [2] | WASHER | |
| 114. | XKAH-00406 | [1] | SPRING | |
| 145. | XKAH-00405 | [1] | RING-SNAP | |
| *-12. | XKAH-00893 | [1] | PISTON ASSY | |
| N105. | XKAH-01045 | [9] | PISTON | |
| N106. | XKAH-00419 | [9] | SHOE | |
| 151. | XKAH-00404 | [6] | ROLLER | |
| 107. | XKAH-00403 | [1] | PLATE-RETAINER | |
| 108. | XKAH-00402 | [1] | BALL-THRUST | |
| *-13. | XKAH-00895 | [1] | PISTON ASSY | |
| N161. | XKAH-00422 | [1] | PISTON | |
| N162. | XKAH-00421 | [1] | SHOE | |
| 163. | XKAH-00094 | [1] | SPRING | |
| 102. | XKAH-00410 | [1] | SHAFT-MAIN | |
| 103. | XKAH-01046 | [1] | PLATE-SWASH | |
| 109. | XKAH-00897 | [1] | PLATE-TIMING | |
| 115. | XKAH-00399 | [3] | PLATE-FRICTION | |
| 116. | XKAH-00401 | [4] | PLATE-MATING | |
| 112. | XKAH-00898 | [1] | PISTON-PARKING | |
| 113. | XKAH-00397 | [9] | SPRING | |
| 132. | XKAH-00388 | [1] | OIL SEAL | |
| 149. | XKAH-00899 | [1] | SLEEVE ASSY | |
| 150. | XKAH-00900 | [1] | BEARING-BALL | |
| 139. | XKAH-00396 | [1] | O-RING | |
| 178. | XKAH-00395 | [1] | O-RING | |
| 181. | XKAH-00377 | [2] | PIN-PARALLEL | |
| 167. | XKAH-00095 | [2] | PIVOT | |
| 168. | XKAH-00034 | [2] | PIN-PARALLEL | |
| *-21. | XKAH-01065 | [1] | RELIEF VALVE ASSY | |
| N301. | XKAH-01066 | [1] | SEAT | |
| N302. | XKAH-01064 | [1] | PLUNGER | |
| N303. | XKAH-01063 | [1] | ROD | |
| N304. | XKAH-00668 | [1] | PISTON | |
| N305. | XKAH-00670 | [1] | BODY | |
| N306. | XKAH-01062 | [1] | PLUG | |
| N307. | XKAH-00671 | [1] | SPRING | |
| N308. | XKAH-00669 | [1] | SHIM | |
| 309. | XKAH-00035 | [1] | O-RING | |
| 310. | XKAH-00035 | [1] | O-RING | |
| 311. | XKAH-00665 | [1] | RING-BACK UP | |
| *-3. | XKAH-01035 | [1] | REAR FLANGE ASSY | |
| *-31. | XKAH-01036 | [1] | REAR FLANGE KIT | |
| 201. | XKAH-01037 | [1] | REAR FLANGE | |
| 223. | XKAH-01038 | [1] | MAIN SPOOL | |
| *-32. | XKAH-00874 | [2] | STOPPER ASSY | |
| N294. | XKAH-00875 | [1] | STOPPER-A | |
| N298. | XKAH-00876 | [1] | STOPPER-B | |
| N295. | XKAH-01052 | [1] | SPOOL | |
| N296. | XKAH-01040 | [1] | SPRING | |
| 224. | XKAH-00328 | [2] | PLUG | |
| 228. | XKAH-00045 | [2] | SPRING | |
| 279. | XKAH-00047 | [2] | O-RING | |
| 226. | XKAH-00043 | [2] | PLUG | |
| 227. | XKAH-00879 | [2] | VALVE-CHECK | |
| 230. | XKAH-00046 | [2] | SPRING | |
| 234. | XKAH-00048 | [2] | O-RING | |
| 221. | XKAH-00032 | [1] | PLUG-RO | |
| 238. | XKAH-00035 | [1] | O-RING | |
| 252. | XKAH-00327 | [4] | PLUG-PT | |
| 244. | XKAH-00880 | [5] | PLUG | |
| 268. | XKAH-00056 | [2] | BALL-STEEL | |
| 242. | XKAH-00411 | [1] | VALVE | |
| 272. | XKAH-00462 | [1] | SEAT-VALVE | |
| 276. | XKAH-00382 | [1] | RING | |
| 275. | XKAH-00383 | [1] | SPRING | |
| 218. | XKAH-00881 | [1] | SEAT-VALVE | |
| 219. | XKAH-00392 | [1] | VALVE | |
| 220. | XKAH-00391 | [1] | SPRING | |
| 222. | XKAH-00390 | [1] | RING(FOR T-TYPE) | |
| 233. | XKAH-00389 | [1] | O-RING | |
| 263. | XKAH-01039 | [1] | VALVE-TWO SPEED | |
| 264. | XKAH-01041 | [1] | PLUG RO | |
| 265. | XKAH-00052 | [1] | O-RING | |
| 266. | XKAH-00384 | [1] | SPRING(TWO SPEED) | |
| 241. | XKAH-00065 | [2] | PIN-PARALLEL | |
| 282. | XKAH-00066 | [9] | BOLT-SOCKET | |
| 297. | XKAH-00885 | [1] | ORIFICE | |
| N199. | XKAH-01042 | [1] | NAME PLATE | |
| 200. | XKAH-00116 | [2] | SCREW-RIVET | |
| K. | XKAH-01054 | [1] | SEAL KIT | SEE ILLUST |
