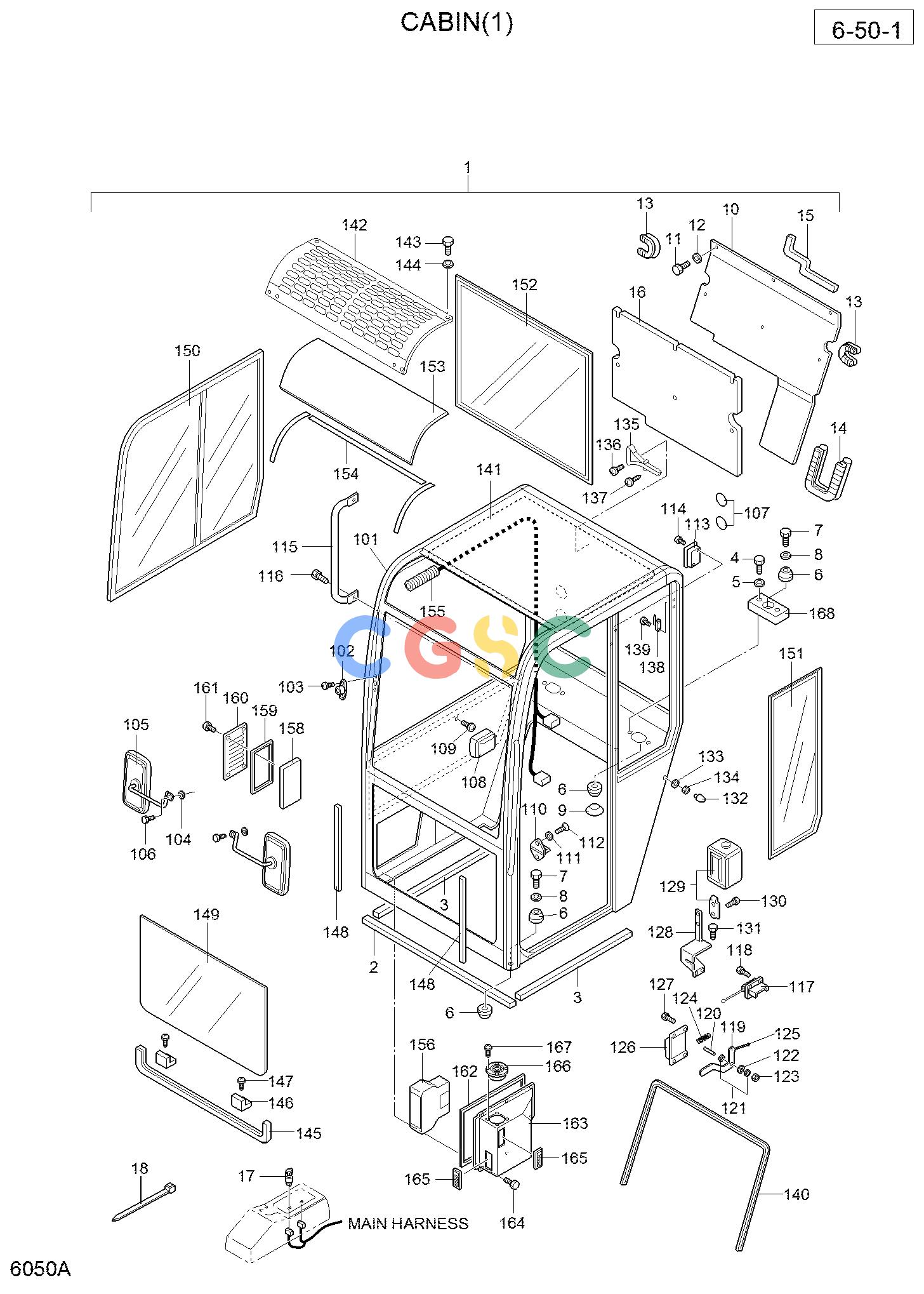

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | XJDH-03937 | [1] | CABIN ASSY | |
| 101. | XJDH-03938 | [1] | CABIN | |
| 102. | XJDH-02564 | [1] | NOZZEL ASSY-HOSE | |
| 103. | XJDH-02730 | [2] | SCREW-TAPPING | |
| 104. | XJDH-00276 | [4] | WASHER | |
| 105. | XJDH-02565 | [2] | MIRROR ASSY | |
| 106. | XJDH-00039 | [2] | BOLT | |
| 107. | XJDH-03939 | [3] | SEAL-COVER | |
| 108. | XJDH-02568 | [1] | ASHTRAY | |
| 109. | XJDH-00211 | [2] | SCREW-TAPPING | |
| 110. | XJDH-02576 | [1] | STRIKER-DOOR LOCK | |
| 111. | XJDH-00276 | [2] | WASHER | |
| 112. | XJDH-03940 | [2] | SCREW-FLAT HEAD | |
| 113. | XJDH-02580 | [1] | LAMP | |
| 114. | XJDH-00218 | [2] | SCREW-TAPPING | |
| 115. | XJDH-02579 | [1] | HANDLE-ASSIST | |
| 116. | XJDH-00037 | [2] | BOLT | |
| 117. | XJDH-02582 | [1] | DOOR CATCH ASSY | |
| 118. | XJDH-00037 | [4] | BOLT | |
| 119. | XJDH-02585 | [1] | LEVER | |
| 120. | XJDH-02586 | [1] | PIPE | |
| 121. | XJDH-02588 | [2] | WASHER | |
| 122. | XJDH-02587 | [1] | WASHER | |
| 123. | XJDH-00165 | [1] | NUT | |
| 124. | XJDH-02590 | [1] | SPRING | |
| 125. | XJDH-03941 | [1] | WIRE ASSY-RELEASE | |
| 126. | XJDH-03942 | [1] | COVER ASSY-CATCH | |
| 127. | XJDH-00018 | [4] | BOLT | |
| 128. | XJDH-03943 | [1] | COVER ASSY-D/CATCH | |
| 129. | XJDH-02566 | [1] | TANK ASSY | |
| 130. | XJDH-03944 | [2] | SCREW | |
| 131. | XJDH-00021 | [4] | BOLT | |
| 132. | XJDH-02581 | [1] | STOPPER-DOOR | |
| 133. | XJDH-00278 | [1] | WASHER | |
| 134. | XJDH-00167 | [1] | NUT | |
| 135. | XJDH-02570 | [1] | HAMMER-EMERGENCY | |
| 136. | XJDH-00211 | [2] | SCREW-TAPPING | |
| 137. | XJDH-00206 | [1] | SCREW-TAPPING | |
| 138. | XJDH-02569 | [1] | HOOK-COAT | |
| 139. | XJDH-00225 | [2] | SCREW-PAN HEAD | |
| 140. | XJDH-03945 | [1] | SEAL-RUBBER | |
| 141. | XJDH-03946 | [1] | PAD-ROOF | |
| 142. | XJDH-02701 | [1] | GUARD | |
| 143. | XJDH-00056 | [4] | BOLT | |
| 144. | XJDH-00278 | [4] | WASHER | |
| 145. | XJDH-03947 | [1] | SEAL | |
| 146. | XJDH-02609 | [2] | STOPPER | |
| 147. | XJDH-03955 | [2] | SCREW | |
| 148. | XJDH-02610 | [2] | SEAL-RUBBER | |
| 149. | XJDH-03956 | [1] | GLASS-FRONT LOW | |
| 150. | XJDH-03957 | [1] | SASH ASSY-SIDE RH | |
| 151. | XJDH-03958 | [1] | GLASS-LH | |
| 152. | XJDH-03959 | [1] | GLASS REAR | |
| 153. | XJDH-03960 | [1] | COVER-ROOF | |
| 154. | XJDH-03961 | [1] | DUM | |
| 155. | XJDH-03962 | [1] | HARNESS ASSY | |
| 156. | XJDH-02682 | [1] | HEATER | |
| 157. | XJDH-00015 | [3] | BOLT | |
| 158. | XJDH-02605 | [1] | FILTER | |
| 159. | XJDH-02606 | [1] | SEAL-RUBBER | |
| 160. | XJDH-03963 | [1] | COVER-INTAKE AIR | |
| 161. | XJDH-00220 | [4] | SCREW-PANHEAD | |
| 162. | XJDH-03964 | [1] | SEAL | |
| 163. | XJDH-03965 | [1] | COVER-HEATER | |
| 164. | XJDH-00021 | [4] | BOLT | |
| 165. | XJDH-02597 | [2] | LOUVER | |
| 166. | XJDH-02685 | [1] | LOUVER | |
| 167. | XJDH-00211 | [4] | SCREW-TAPPING | |
| 168. | XJDH-03966 | [2] | BRACKET-MOUNTING | |
| 2. | XJDH-00733 | [1] | SEAL | |
| 3. | XJDH-03967 | [2] | SPONGE | |
| 4. | XJDH-00059 | [4] | BOLT | |
| 5. | XJDH-00278 | [4] | WASHER | |
| 6. | XJDH-02790 | [8] | ABSORBER-RUBBER | |
| 7. | XJDH-03968 | [4] | BOLT | |
| 8. | XJDH-01525 | [4] | WASHER | |
| 9. | XJDH-03902 | [2] | PLATE | |
| 10. | XJDH-03969 | [1] | COVER | |
| 11. | XJDH-00021 | [6] | BOLT | |
| 12. | XJDH-00274 | [6] | WASHER | |
| 13. | XJDH-03970 | [2] | STRIP-WEATHER | |
| 14. | XJDH-03971 | [1] | STRIP-WEATHER | |
| 15. | XJDH-03972 | [1] | URETHAN FOAM | |
| 16. | XJDH-03973 | [1] | FOAM | |
| 17. | XJDH-00998 | [1] | SWITCH-WIPER | |
| 18. | XJDH-03900 | [3] | BAND-WIT |
