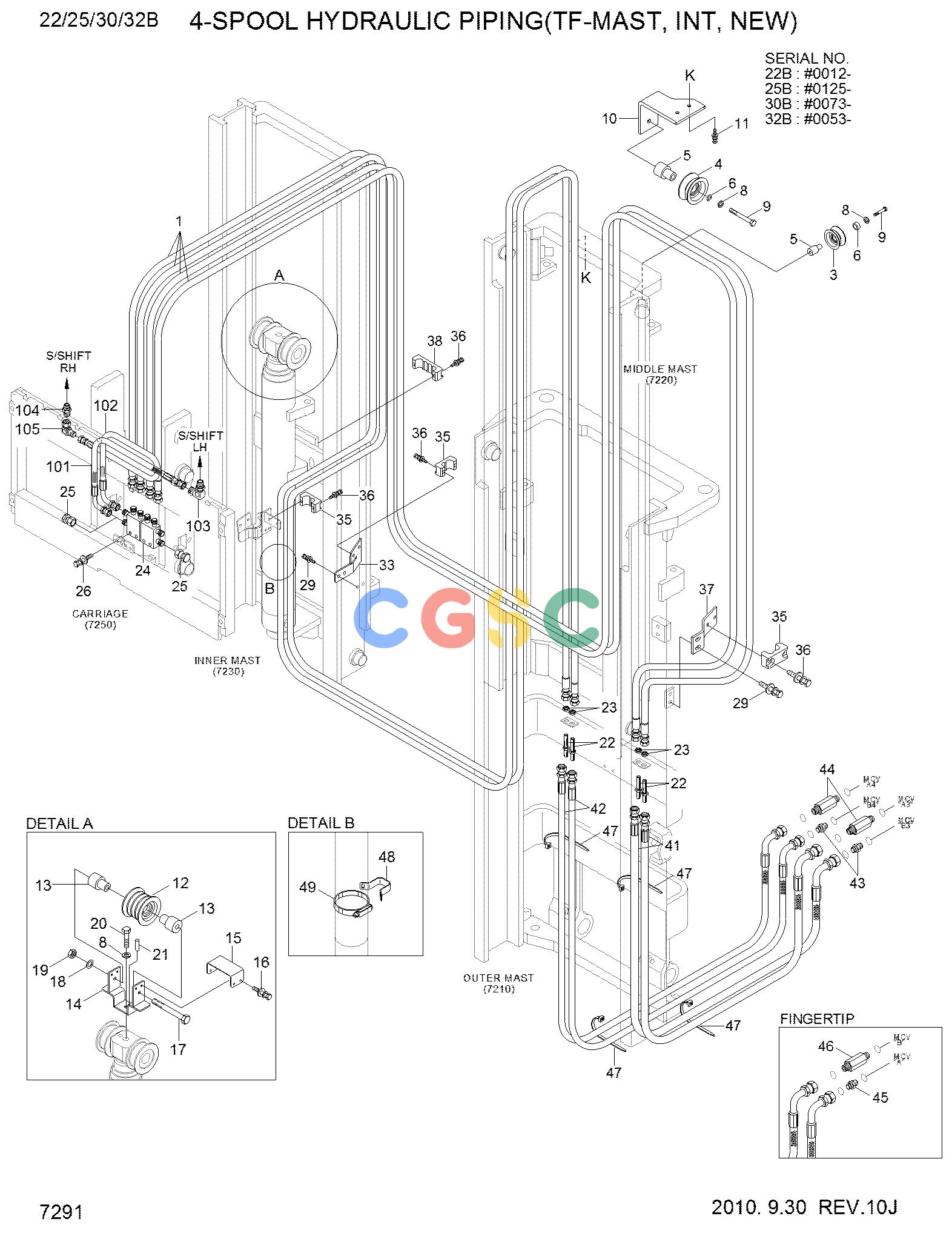

现代零件查询HLF20/25/30-5 4-SPOOL HYDRAULIC PIPING(TF-MAST,NEW)EPC Hyundai

作者：广数供应链运营团队
浏览数：
时间：2025-01-21 16:00:58
Parts Contact me WhatsApp

工程机械零件图册查询

专业 覆盖挖掘机、装载机、推土机全系配件
立即查询
Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴 Caterpillar 卡特彼勒 Komatsu 小松 SANY 三一重工 XCMG 徐工 Hitachi 日立建机 Volvo 沃尔沃 Liebherr 利勃海尔 John Deere 约翰迪尔 Zoomlion 中联重科 Doosan 斗山 Hyundai 现代 JCB 杰西博 Kobelco 神钢 LiuGong 柳工 Case 凯斯 Kubota 久保田 Terex 特雷克斯 Yanmar 洋马 Bobcat 山猫 Sandvik 山特维克 Metso 美卓 Manitou 曼尼通 Wacker Neuson 威克诺森 Shantui 山推 SDLG 临工 Lonking 龙工 Sunward 山河智能 Lovol 雷沃 XGMA 厦工 Kato 加藤 Tadano 多田野 Sumitomo 住友 Takeuchi 竹内 Bell 贝尔 Hidromek 海德罗梅克 Atlas Copco 阿特拉斯·科普柯 Wirtgen 维特根 Vögele 福格勒 Hamm 悍马 Bomag 宝马格 Ammann 安迈 Dynapac 戴纳派克 Genie 吉尼 JLG 捷尔杰 Skyjack 斯凯杰科 Haulotte 欧历胜 Palfinger 帕尔菲格 Hiab 希尔博 Sennebogen 森尼伯根 Yuchai 玉柴
Pos. Part No Qty Parts name Comments
*. @ [1]   4-SPOOL HYDRAULIC PIP      HLF20-5
*. @ [1]   4-SPOOL HYDRAULIC PIP      HLF25-5
*. @ [1]   4-SPOOL HYDRAULIC PIP      HLF30-5
1. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF20-5
1. P910-064043 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF20-5
1. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF25-5
1. P910-064043 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF25-5
1. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF30-5
1. P910-064043 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF30-5
1. P910-064046 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF20-5
1. P910-064047 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF20-5
1. P910-064046 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF25-5
1. P910-064047 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF25-5
1. P910-064046 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF30-5
1. P910-064047 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF30-5
1. P910-064050 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF20-5
1. P910-064051 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF20-5
1. P910-064050 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF25-5
1. P910-064051 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF25-5
1. P910-064050 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF30-5
1. P910-064051 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF30-5
1. P910-064054 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF20-5
1. P910-064055 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF20-5
1. P910-064054 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF25-5
1. P910-064055 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF25-5
1. P910-064054 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF30-5
1. P910-064055 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF30-5
1. P910-064056 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF20-5
1. P910-064057 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF20-5
1. P910-064056 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF25-5
1. P910-064057 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF25-5
1. P910-064056 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF30-5
1. P910-064057 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF30-5
1. P910-064060 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF20-5
1. P910-064061 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF20-5
1. P910-064060 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF25-5
1. P910-064061 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF25-5
1. P910-064060 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF30-5
1. P910-064061 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF30-5
1. P910-064068 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF20-5
1. P910-064069 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF20-5
1. P910-064068 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF25-5
1. P910-064069 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF25-5
1. P910-064068 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF30-5
1. P910-064069 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF30-5
1. P910-064076 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF20-5
1. P910-064077 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF20-5
1. P910-064076 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF25-5
1. P910-064077 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF25-5
1. P910-064076 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF30-5
1. P910-064077 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF30-5
1. P910-064083 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF20-5
1. P910-064084 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF20-5
1. P910-064083 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF25-5
1. P910-064084 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF25-5
1. P910-064083 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF30-5
1. P910-064084 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF30-5
1. P910-064091 [2]   HOSE ASSY-ORFD 0X0      TF700,HLF20-5
1. P910-064092 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF20-5
1. P910-064091 [2]   HOSE ASSY-ORFD 0X0      TF700,HLF25-5
1. P910-064092 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF25-5
1. P910-064091 [2]   HOSE ASSY-ORFD 0X0      TF700,HLF30-5
1. P910-064092 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF30-5
2. P910-064037 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF20-5
2. P910-064038 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF20-5
2. P910-064037 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF25-5
2. P910-064038 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF25-5
2. P910-064037 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF30-5
2. P910-064038 [2]   HOSE ASSY-ORFS 0X0      TF370,HLF30-5
2. P910-064039 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF20-5
2. P910-064040 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF20-5
2. P910-064039 [2]   HOSE ASSY-ORFS 0X0      TF400,HDL25-5
2. P910-064040 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF25-5
2. P910-064039 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF30-5
2. P910-064040 [2]   HOSE ASSY-ORFS 0X0      TF400,HLF30-5
2. P910-064041 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF20-5
2. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF20-5
2. P910-064041 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF25-5
2. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF25-5
2. P910-064041 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF30-5
2. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF430,HLF30-5
2. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF20-5
2. P910-064043 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF20-5
2. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF25-5
2. P910-064043 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF25-5
2. P910-064042 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF30-5
2. P910-064043 [2]   HOSE ASSY-ORFS 0X0      TF450,HLF30-5
2. P910-064044 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF20-5
2. P910-064045 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF20-5
2. P910-064044 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF25-5
2. P910-064045 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF25-5
2. P910-064044 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF30-5
2. P910-064045 [2]   HOSE ASSY-ORFS 0X0      TF470,HLF30-5
2. P910-064046 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF20-5
2. P910-064047 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF20-5
2. P910-064046 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF25-5
2. P910-064047 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF25-5
2. P910-064046 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF30-5
2. P910-064047 [2]   HOSE ASSY-ORFS 0X0      TF500,HLF30-5
2. P910-064049 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF20-5
2. P910-064050 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF20-5
2. P910-064049 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF25-5
2. P910-064050 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF25-5
2. P910-064049 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF30-5
2. P910-064050 [2]   HOSE ASSY-ORFS 0X0      TF550,HLF30-5
2. P910-064053 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF20-5
2. P910-064054 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF20-5
2. P910-064053 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF25-5
2. P910-064054 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF25-5
2. P910-064053 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF30-5
2. P910-064054 [2]   HOSE ASSY-ORFS 0X0      TF600,HLF30-5
2. P910-064057 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF20-5
2. P910-064058 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF20-5
2. P910-064057 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF25-5
2. P910-064058 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF25-5
2. P910-064057 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF30-5
2. P910-064058 [2]   HOSE ASSY-ORFS 0X0      TF650,HLF30-5
2. P910-064061 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF20-5
2. P910-064062 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF20-5
2. P910-064061 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF25-5
2. P910-064062 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF25-5
2. P910-064061 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF30-5
2. P910-064062 [2]   HOSE ASSY-ORFS 0X0      TF700,HLF30-5
3. P933-064018 [2]   HOSE ASSY-ORFS 0X90
4. 34FG-90201 [2]   PULLEY-HOSE
5. 34FG-90250 [3]   PIN-HOSE PULLEY
6. S017-100552 [1]   BOLT-HEX
7. S411-100002 [1]   WASHER-SPRING
8. 232110000 [3]   WASHER-PLAIN      HLF20-5
8. 232110000 [1]   WASHER-PLAIN      HLF20-5
8. 232110000 [3]   WASHER-PLAIN      HLF25-5
8. 232110000 [1]   WASHER-PLAIN      HLF25-5
8. 232110000 [3]   WASHER-PLAIN      HLF30-5
8. 232110000 [1]   WASHER-PLAIN      HLF30-5
9. 34FG-90230 [2]   PLATE-4SPOOL      HLF20-5
9. 34FG-90500 [1]   BRACKET WA      HLF20-5
9. 34FG-90230 [2]   PLATE-4SPOOL      HLF25-5
9. 34FG-90500 [1]   BRACKET WA      HLF25-5
9. 34FG-90230 [2]   PLATE-4SPOOL      HLF30-5
9. 34FG-90500 [1]   BRACKET WA      HLF30-5
10. 34FG-90270 [1]   COVER
11. S035-081522 [4]   BOLT-W/WASHER
12. S037-102522 [4]   BOLT-W/WASHER      HLF20-5
12. S037-102522 [2]   BOLT-W/WASHER      HLF20-5
12. S037-102522 [4]   BOLT-W/WASHER      HLF25-5
12. S037-102522 [2]   BOLT-W/WASHER      HLF25-5
12. S037-102522 [4]   BOLT-W/WASHER      HLF30-5
12. S037-102522 [2]   BOLT-W/WASHER      HLF30-5
13. S017-120452 [1]   BOLT-HEX
14. S411-120002 [1]   WASHER-SPRING
15. S017-101352 [1]   BOLT-HEX      HLF20-5
15. S017-101402 [1]   BOLT-HEX      HLF20-5
15. S017-101352 [1]   BOLT-HEX      HLF25-5
15. S017-101402 [1]   BOLT-HEX      HLF25-5
15. S017-101352 [1]   BOLT-HEX      HLF30-5
15. S017-101402 [1]   BOLT-HEX      HLF30-5
16. S275-100002 [1]   NUT-SELF LOCKING
17. S403-102002 [1]   WASHER-PLAIN
18. 31FG-80200 [2]   CONNECTOR-LONG      HLF20-5
18. 31FG-80210 [2]   CONNECTOR      HLF20-5
18. 31FG-80200 [2]   CONNECTOR-LONG      HLF25-5
18. 31FG-80210 [2]   CONNECTOR      HLF25-5
18. 31FG-80200 [2]   CONNECTOR-LONG      HLF30-5
18. 31FG-80210 [2]   CONNECTOR      HLF30-5
19. 31FG-80430 [2]   NUT-HEX
20. 34FG-90210 [1]   PIPE WA
21. S037-102022 [2]   BOLT-W/WASHER
22. 34FG-90400 [1]   BLOCK WA
23. 33FQ-90070 [1]   CLAMP-HOSE      HLF20-5
23. 33FQ-90070 [1]   CLAMP-HOSE      HLF25-5
23. 33FQ-90070 [1]   CLAMP-HOSE      HLF30-5
24. S035-083526 [2]   BOLT-W/WASHER      HLF20-5
24. S035-083526 [2]   BOLT-W/WASHER      HLF25-5
24. S035-083526 [2]   BOLT-W/WASHER      HLF30-5
25. 34FG-90301 [1]   PLATE      HLF20-5
25. 34FG-90301 [1]   PLATE      HLF25-5
25. 34FG-90301 [1]   PLATE      HLF30-5
26. 31FA-60020 [1]   RUBBER      HLF20-5
26. 31FA-60020 [1]   RUBBER      HLF25-5
26. 31FA-60020 [1]   RUBBER      HLF30-5
27. X710-100103 [4]   CAP-ORFS
28. S552-102370 [10]   CLAMP-BAND
29. 34FG-90260 [1]   CLAMP-HOSE      HLF20-5
29. 34FG-90260 [2]   CLAMP-HOSE      HLF20-5
29. 34FG-90260 [1]   CLAMP-HOSE      HLF25-5
29. 34FG-90260 [2]   CLAMP-HOSE      HLF25-5
29. 34FG-90260 [1]   CLAMP-HOSE      HLF30-5
29. 34FG-90260 [2]   CLAMP-HOSE      HLF30-5
30. S035-063546 [2]   BOLT-W/WASHER      HLF20-5
30. S035-063526 [4]   BOLT-W/WASHER      HLF20-5
30. S035-063546 [2]   BOLT-W/WASHER      HLF25-5
30. S035-063526 [4]   BOLT-W/WASHER      HLF25-5
30. S035-063546 [2]   BOLT-W/WASHER      HLF30-5
30. S035-063526 [4]   BOLT-W/WASHER      HLF30-5
31. 34FG-90290 [1]   SPACER
32. S471-800162 [1]   PIN-SPRING      HLF20-5
32. S471-800162 [1]   PIN-SPRING      HLF25-5
32. S471-800162 [1]   PIN-SPRING      HLF30-5
33. 6600363600 [1]   HOSE REEL-RH      TF370-470
33. 6600363800 [1]   HOSE REEL-RH      TF500-700
34. P930-064032 [2]   HOSE ASSY-ORFS 0X90      TF370
34. P930-064034 [2]   HOSE ASSY-ORFS 0X90      TF400
34. P930-064036 [2]   HOSE ASSY-ORFS 0X90      TF430
34. P930-064038 [2]   HOSE ASSY-ORFS 0X90      TF450
34. P930-064039 [2]   HOSE ASSY-ORFS 0X90      TF470
34. P930-064041 [2]   HOSE ASSY-ORFS 0X90      TF500
34. P930-064045 [2]   HOSE ASSY-ORFS 0X90      TF550
34. P930-064049 [2]   HOSE ASSY-ORFS 0X90      TF600
34. P930-064053 [2]   HOSE ASSY-ORFS 0X90      TF650
34. P930-064057 [2]   HOSE ASSY-ORFS 0X90      TF700
35. S621-012001 [2]   O-RING
36. X500-310002 [2]   CONNECTOR-ORFS
37. S611-012001 [2]   O-RING 9/16-18UNF
38. S017-120802 [2]   BOLT-HEX
39. S441-120002 [2]   WASHER-HARDENED
40. 33FG-90310 [1]   BRACKET
41. S037-102552 [2]   BOLT-W/WASHER
42. 33FJ-80170 [1]   ELBOW-90
43. 33FJ-80180 [1]   ELBOW-90,LONG
99. 672563 [1]   SEAL KIT-H/REEL      NOT SHOWN
点赞 (0)
上一篇：现代零件查询HLF20/25/30-5 4-SPOOL HYDRAULIC PIPING(TF-MAST,OLD)EPC Hyundai
下一篇：现代零件查询HLF20/25/30-5 SIDE SHIFT(CASCADE)EPC Hyundai
相关建站服务
最新消息 营销干货 常见问题

推荐文章

热门文章

微信订阅
扫描二维码
了解更多运营经验

添加微信咨询

扫描二维码添加微信客服

其它联系方式

邮寄联系地址 广州市天河区中山大道珠村商贸大厦501 联系服务热线 18664845294

广数信息电话
