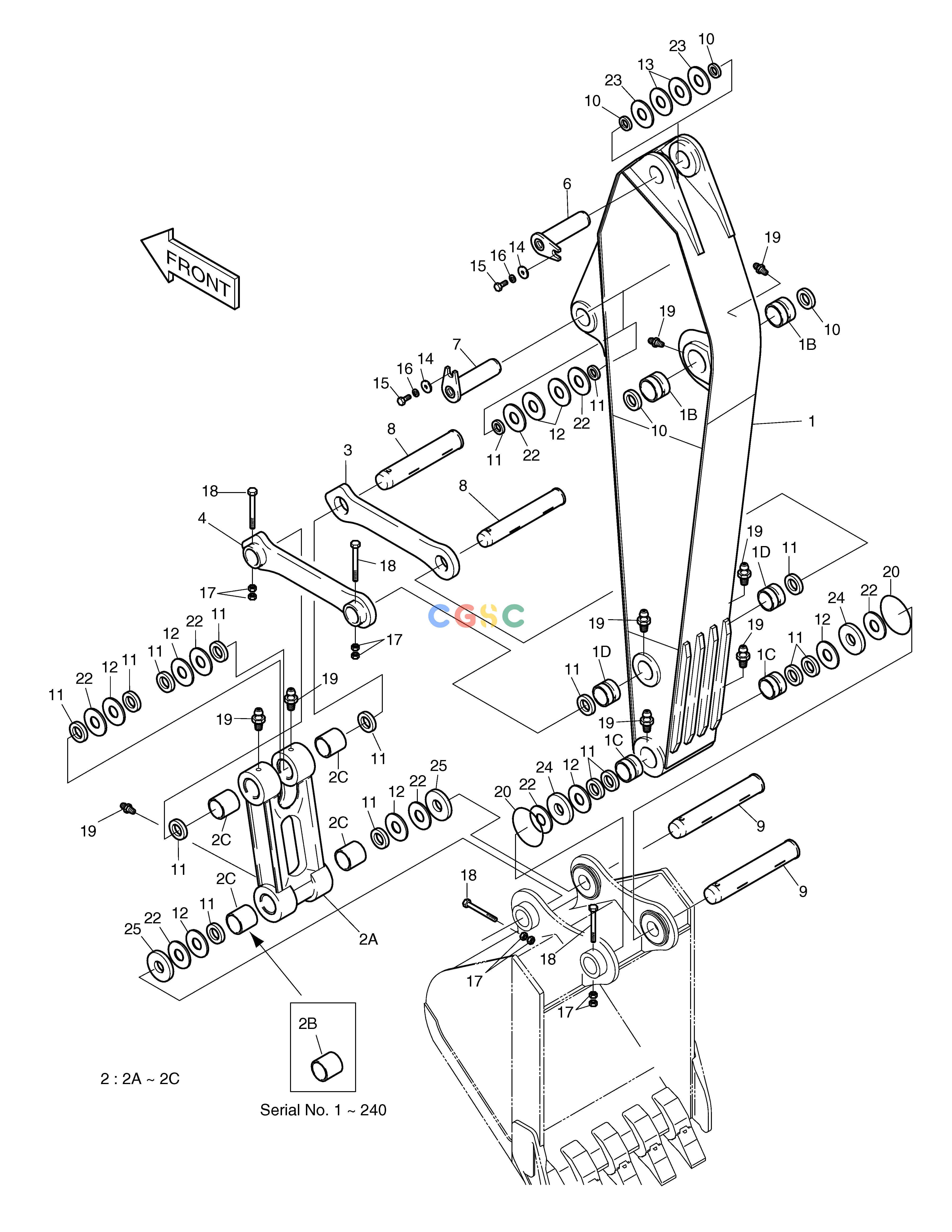

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 2701-1436A | [-] | ARM ASS'Y-2.5m | |
| -. | 2701-1436B | [-] | ARM ASS'Y-2.5m | |
| -. | 2701-1436C | [-] | ARM ASS'Y-2.5m | |
| -. | 2701-1436E | [-] | ARM ASS'Y-2.5m | |
| 1. | 2701-1437A | [1] | ARM SUB ASS'Y-2.5m | 2701-1437B |
| 1. | 2701-1437B | [1] | ARM SUB ASS'Y-2.5m | 2701-1437C |
| 1. | 2701-1437C | [1] | ARM SUB ASS'Y-2.5m | 2701-1437E |
| 1. | 2701-1437E | [1] | ARM SUB ASS'Y-2.5m | 2701-1437G |
| 1. | 2701-1437G | [1] | ARM SUB ASS'Y-2.5m | 2701-1437H |
| 1. | 2701-1437H | [1] | ARM SUB ASS'Y-2.5m | 2701-1437K |
| 1. | 2701-1437K | [1] | ARM SUB ASS'Y-2.5m | 2701-1437L |
| 1. | 2701-1437L | [1] | ARM SUB ASS'Y-2.5m | |
| 10. | 2180-1106BD4 | [4] | SEAL;DUST | |
| 11. | 2180-1106BD3 | [16] | SEAL;DUST | |
| 11. | 2180-1106BD3 | [14] | SEAL;DUST | |
| 12. | 2114-1058D12 | [8] | SHIM | |
| 13. | 2114-1059D127 | [2] | SHIM | |
| 14. | 2116-1060D6 | [2] | STOPPER | |
| 15. | S0521361 | [2] | BOLT M16X2.0X35 | S0521366 |
| 15. | S0521366 | [2] | BOLT | |
| 16. | S5102901 | [2] | . WASHER;SPRING | S5102903 |
| 16. | S5102903 | [2] | WASHER | |
| 17. | S4012933 | [8] | NUT | |
| 18. | S0566761 | [4] | BOLT M16X2.0X125 | S0566766 |
| 18. | S0566766 | [4] | BOLT | |
| 19. | S6710041 | [9] | NIPPLE,GREASE | |
| 1B. | 2110-1328A | [2] | BUSHING | 110-00059 |
| 1B. | 110-00059 | [2] | BUSHING | 2110-1328A |
| 1B. | 2110-1328A | [2] | BUSHING | |
| 1B. | 2110-1328 | [2] | BUSHING | 2110-1328A |
| 1C. | 2110-1329 | [2] | BUSHING | 2110-1329A |
| 1C. | 2110-1329A | [2] | BUSHING | 110-00102 |
| 1C. | 110-00102 | [2] | BUSHING | 2110-1329A |
| 1C. | 2110-1329A | [2] | BUSHING | |
| 1D. | 2110-1330 | [2] | BUSHING | 2110-1330A |
| 1D. | 2110-1330A | [2] | BUSHING | 110-00101 |
| 1D. | 110-00101 | [2] | BUSHING | 2110-1330A |
| 1D. | 2110-1330A | [2] | BUSHING | |
| 2. | 2155-1339 | [1] | LINK;PUSH ASS'Y | 2155-1339B |
| 2. | 2155-1339B | [1] | LINK;PUSH ASS'Y | 2155-1339C |
| 2. | 2155-1339C | [1] | LINK;PUSH ASS'Y | 2155-1339E |
| 2. | 2155-1339E | [1] | LINK;PUSH ASS'Y | |
| 20. | 2180-1105D7 | [2] | O-RING | 180-00077D3 |
| 20. | 180-00077D3 | [2] | O-RING | |
| 22. | 2114-1059D89 | [8] | SHIM | |
| 23. | 2114-1059D129 | [2] | SHIM | |
| 24. | 2114-1994 | [2] | SPACER | 2114-1994A |
| 24. | 2114-1994A | [2] | SPACER | 2114-1994B |
| 24. | 2114-1994B | [2] | SPACER | |
| 25. | 2114-1995 | [2] | SPACER | 2114-1995A |
| 25. | 2114-1995A | [2] | SPACER | 2114-1995B |
| 25. | 2114-1995B | [2] | SPACER | |
| 2A. | 2155-1338A | [1] | LINK;PUSH | 2155-1338B |
| 2A. | 2155-1338B | [1] | LINK;PUSH | 2155-1338C |
| 2A. | 2155-1338C | [1] | LINK;PUSH | |
| 2B. | 2110-1367A | [2] | BUSHING | |
| 2B. | 2110-1367B | [2] | BUSHING | |
| 2C. | 2110-1366A | [2] | BUSHING | |
| 2C. | 2110-1366A | [4] | BUSHING | |
| 3. | 2155-1306A | [1] | LINK;GUIDE(R) | |
| 4. | 2155-1307A | [1] | LINK;GUIDE(L) | |
| 6. | 2123-2209A | [1] | PIN | 2123-2209C |
| 6. | 2123-2209C | [1] | PIN | |
| 7. | 2123-2225A | [1] | PIN | 2123-2225C |
| 7. | 2123-2225C | [1] | PIN | |
| 8. | 2123-2211A | [2] | PIN | 2123-2211B |
| 8. | 2123-2211B | [2] | PIN | 2123-2211C |
| 8. | 2123-2211C | [2] | PIN | |
| 9. | 2123-2212A | [2] | PIN | |
| 9. | 2123-2212B | [2] | PIN | 2123-2212C |
| 9. | 2123-2212C | [2] | PIN |
