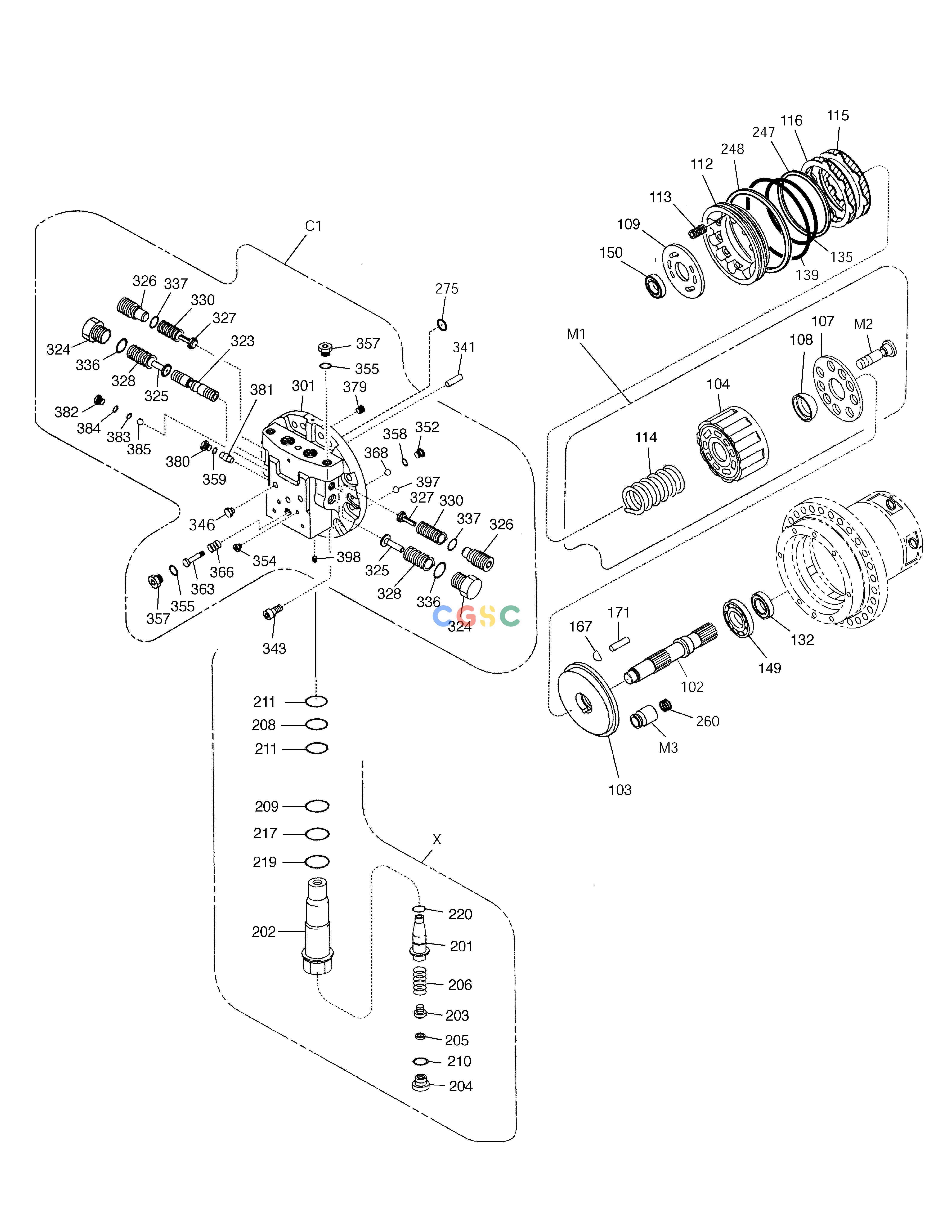

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1017674 | [2] | TRAVEL DEVICE | |
| -. | K9004441 | [1] | TRAVEL MOTOR | |
| 102. | K9004450 | [1] | SHAFT;MAIN | |
| 103. | K9004451 | [1] | PLATE;SWASH | |
| 104. | K9004446 | [1] | BLOCK;CYLINDER | |
| 107. | K9004447 | [1] | PLATE;RETAINER | |
| 108. | K9004448 | [1] | BALL;THRUST | |
| 109. | K9004452 | [1] | PLATE;TIMING | |
| 112. | K9004453 | [1] | PISTON;PARKING | |
| 113. | 1.131-00049 | [12] | SPRING | |
| 114. | K9004449 | [9] | SPRING | |
| 115. | 412-00013 | [2] | PLATE,FRICTION | |
| 116. | 352-00014 | [2] | PLATE,SEPARATION | |
| 132. | 1.180-00521 | [1] | SEAL;OIL | |
| 135. | S8001801 | [1] | O-RING | |
| 139. | S8002101 | [1] | O-RING | |
| 149. | 1.109-00147 | [1] | BEARING;BALL | |
| 150. | 1.109-00026 | [1] | BEARING;BALL | |
| 167. | 1.540-00006 | [1] | PIVOT | |
| 171. | 1.123-00053 | [2] | PIN,PARALLEL | |
| 201. | *NA01288 | [1] | SUPPORT | |
| 202. | 1.425-00004 | [1] | SLEEVE | |
| 203. | 1.115-00010 | [1] | RETAINER;SPRING | |
| 204. | 1.181-00063 | [1] | PLUG | |
| 205. | 1.114-00016 | [1] | SHIM | |
| 206. | 1.131-00050 | [1] | SPRING | |
| 208. | S8000161 | [1] | O-RING | |
| 209. | S8000221 | [1] | O-RING | |
| 210. | S8000181 | [1] | O-RING | |
| 211. | S8060161 | [2] | RING;BACK-UP | |
| 217. | S8060221 | [1] | RING;BACK UP | |
| 219. | S8010291 | [1] | O-RING | |
| 220. | 1.180-00527 | [1] | SEAL;PISTON | |
| 247. | S8061800 | [1] | RING;BACK UP | |
| 248. | S8062100 | [1] | RING;BACK UP | |
| 260. | 1.131-00042 | [1] | SPRING | |
| 275. | S8000081 | [2] | O-RING | |
| 301. | *NA00460 | [1] | . FLANGE;REAR | |
| 323. | 1.424-00024 | [1] | SPOOL | |
| 324. | 1.181-00059 | [2] | PLUG;FOR MAIN | |
| 325. | 1.416-00009 | [2] | STOPPER | |
| 326. | 1.181-00067 | [2] | PLUG;CHECK | |
| 327. | 1.420-00013 | [2] | VALVE;CHECK | |
| 328. | 1.131-00058 | [2] | SPRING;FOR MAIN | |
| 330. | 1.129-00006 | [2] | SPRING;CHECK | |
| 336. | S8000321 | [2] | O-RING | |
| 337. | S8002731 | [2] | O-RING | |
| 341. | S5700891 | [1] | PIN;PARALLEL | |
| 343. | S2221471 | [12] | BOLT,SOCKET | |
| 346. | 2181-1116D2 | [2] | PLUG | |
| 352. | 2181-1890D2 | [2] | PLUG | |
| 354. | 181-00318 | [7] | BOLT;SOCKER | |
| 355. | S8000181 | [2] | O-RING | |
| 357. | 2181-1890D4 | [2] | PLUG | |
| 358. | S8000111 | [2] | O-RING | |
| 359. | S8000141 | [2] | O-RING | |
| 363. | 1.424-00041 | [1] | SPOOL;2 SPEED | |
| 366. | 1.131-00001 | [1] | SPRING | |
| 368. | S6250182 | [2] | BALL | |
| 379. | 1.471-00001 | [1] | FILTER | |
| 380. | 2181-1890D3 | [2] | PLUG | |
| 381. | 2.409-00058 | [1] | PISTON | |
| 382. | 1.181-00062 | [2] | PLUG | |
| 383. | S8000051 | [2] | O-RING | |
| 384. | S8000081 | [2] | O-RING | |
| 385. | 1.148-00012 | [2] | BALL;STEEL | |
| 397. | 1.415-00005 | [1] | ORIFICE | |
| 398. | 2181-1116D1 | [4] | PLUG | |
| 900. | K9004604 | [1] | SEAL KIT;TRAVEL MOTOR | |
| 901. | 1.180-00465 | [1] | SEAL KIT;RELIEF VALVE | |
| C1. | K9004442 | [1] | REAR FLANGE ASS'Y | |
| C2. | K9004443 | [1] | REAR FLANGE KIT | |
| M1. | K9004444 | [1] | CYL. BLOCK & PISTON KIT | |
| M2. | K9004445 | [1] | PISTON ASS'Y | |
| M3. | 1.409-00180 | [1] | PISTON KIT;2 SPEED | |
| X. | 1.420-00119 | [2] | RELIEF VALVE ASS'Y |
