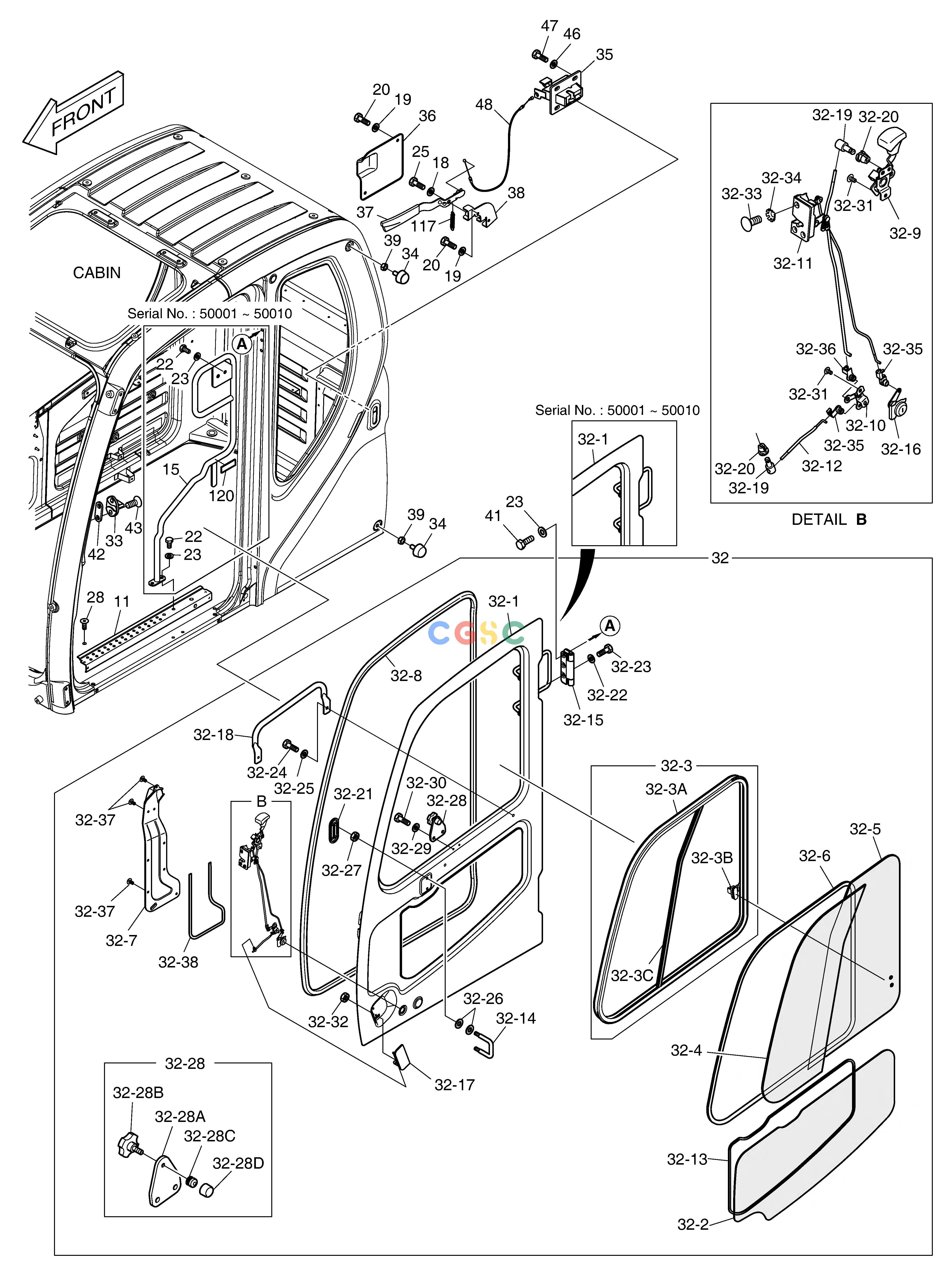

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 622-00351J | [1] | CABIN ASS'Y | 622-00351K |
| -. | 622-00351K | [1] | CABIN ASS'Y | 622-00351M |
| -. | 622-00351M | [1] | CABIN ASS'Y | |
| 11. | 625-00159B | [1] | STEP,CABIN DOOR | |
| 117. | 2129-1446 | [1] | SPRING | |
| 120. | K1006368 | [1] | . RUBBER | |
| 15. | 172-00052E | [1] | HANDLE;INNER | |
| 18. | 2114-1898D14 | [1] | WASHER | |
| 19. | 2114-1898D3 | [4] | WASHER | |
| 20. | 2120-2166D28 | [4] | . BOLT | |
| 22. | 2120-2166D4 | [4] | BOLT | |
| 23. | 2114-1898D15 | [10] | WASHER | |
| 23. | 2114-1898D15 | [6] | WASHER | |
| 25. | 2120-2166D12 | [1] | BOLT | |
| 28. | 2120-2150D3 | [4] | SCREW | |
| 32. | 622-00353G | [1] | DOOR ASS'Y | 622-00353H |
| 32. | 622-00353H | [1] | DOOR ASS'Y | |
| 32-1. | *NA00434 | [1] | . DOOR;BODY | |
| 32-10. | 137-00092 | [1] | . LINK,DOOR INNER | |
| 32-11. | 125-00072 | [1] | . CATCH ASSY,DOOR INNER | |
| 32-12. | 136-00055A | [1] | . ROD,OUTER HANDLE | |
| 32-13. | K1002637 | [1] | . DAMPER | |
| 32-14. | 2150-1132A | [1] | . HOOK,CATCH DOOR | |
| 32-15. | K1027765 | [2] | . HINGE ASSY,DOOR | |
| 32-16. | K1003900 | [1] | KEY ASS'Y;DOOR | |
| 32-17. | 2172-9021 | [1] | . HANDLE,OUTER | |
| 32-18. | 145-00124A | [1] | . STAY | |
| 32-19. | 2123-2247 | [2] | . PIN | |
| 32-2. | 903-00069A | [1] | . GLASS,DOOR LOWER | |
| 32-20. | 2124-1689A | [2] | . SNAP | |
| 32-21. | 621-02867A | [1] | . COVER,DOOR INNER | |
| 32-22. | 2114-1898D15 | [6] | WASHER | |
| 32-23. | 2120-2166D1 | [6] | BOLT | |
| 32-24. | 2120-2166D5 | [2] | BOLT | |
| 32-25. | 2114-1898D2 | [2] | WASHER | |
| 32-26. | 2891-1311 | [4] | . PLATE | |
| 32-27. | S4012533 | [2] | NUT | |
| 32-28. | 161-00621B | [1] | . STOPPER,RUBBER | |
| 32-28A. | 191-03283 | [1] | .. PLATE,STOPPER | |
| 32-28B. | 4132-1138 | [1] | .. KNOB | |
| 32-28C. | 161-00620 | [1] | .. RUBBER,STOPPER | |
| 32-28D. | 116-00092A | [1] | .. STOPPER | |
| 32-29. | 2114-1898D3 | [2] | WASHER | |
| 32-3. | 622-00355A | [1] | . SASH ASSY | |
| 32-30. | 2120-2166D28 | [2] | . BOLT | |
| 32-31. | 2120-2166D52 | [5] | . BOLT | |
| 32-32. | S4012333 | [2] | NUT | |
| 32-33. | 2120-2150D3 | [3] | SCREW | |
| 32-34. | S5210303 | [3] | . WASHER | |
| 32-35. | 124-00010 | [2] | . CLIP,ROD | |
| 32-36. | 124-00344 | [1] | . CLIP,ROD | |
| 32-37. | 2120-2166D53 | [8] | . SCREW | |
| 32-38. | K1006370 | [1] | . FOAM | |
| 32-3A. | 622-00356 | [1] | .. FRAME ASSY,SASH | |
| 32-3B. | 2123-6119 | [1] | .. LOCK,SASH | |
| 32-3C. | 162-00033A | [1] | .. BAR,CENTER | |
| 32-4. | 903-00070B | [1] | . GLASS,SASH FRONT | |
| 32-5. | 903-00071B | [1] | . GLASS,SASH REAR | |
| 32-6. | 161-00623 | [1] | . TRIM | |
| 32-7. | 621-02869B | [1] | COVER;LOCK | |
| 32-8. | 198-00053A | [1] | . RUBBER TRIM,DOOR INNER | |
| 32-9. | 133-00221 | [1] | . LEVER ASSY,INNER HANDLE | |
| 33. | 2142-9005 | [1] | STRIKER | |
| 34. | 161-00195 | [2] | STOPPER | |
| 35. | 2125-9055 | [1] | . LOCK;BACK | |
| 36. | 621-02849A | [1] | COVER;BACK LOCK INNER | |
| 37. | 133-00220E | [1] | LEVER,BACK LOCK | |
| 38. | 195-02719B | [1] | BRACKET;BACK LOCK | |
| 39. | 2121-1311D4 | [2] | NUT | |
| 41. | 2120-2166D1 | [6] | BOLT | |
| 42. | 2114-1856 | [1] | SHIM | |
| 43. | 2120-2150D1 | [2] | BOLT | |
| 46. | 2114-1898D2 | [4] | WASHER | |
| 47. | 2120-2166D5 | [4] | BOLT | |
| 48. | 2127-1002A | [1] | CABLE;BACK LOCK |
